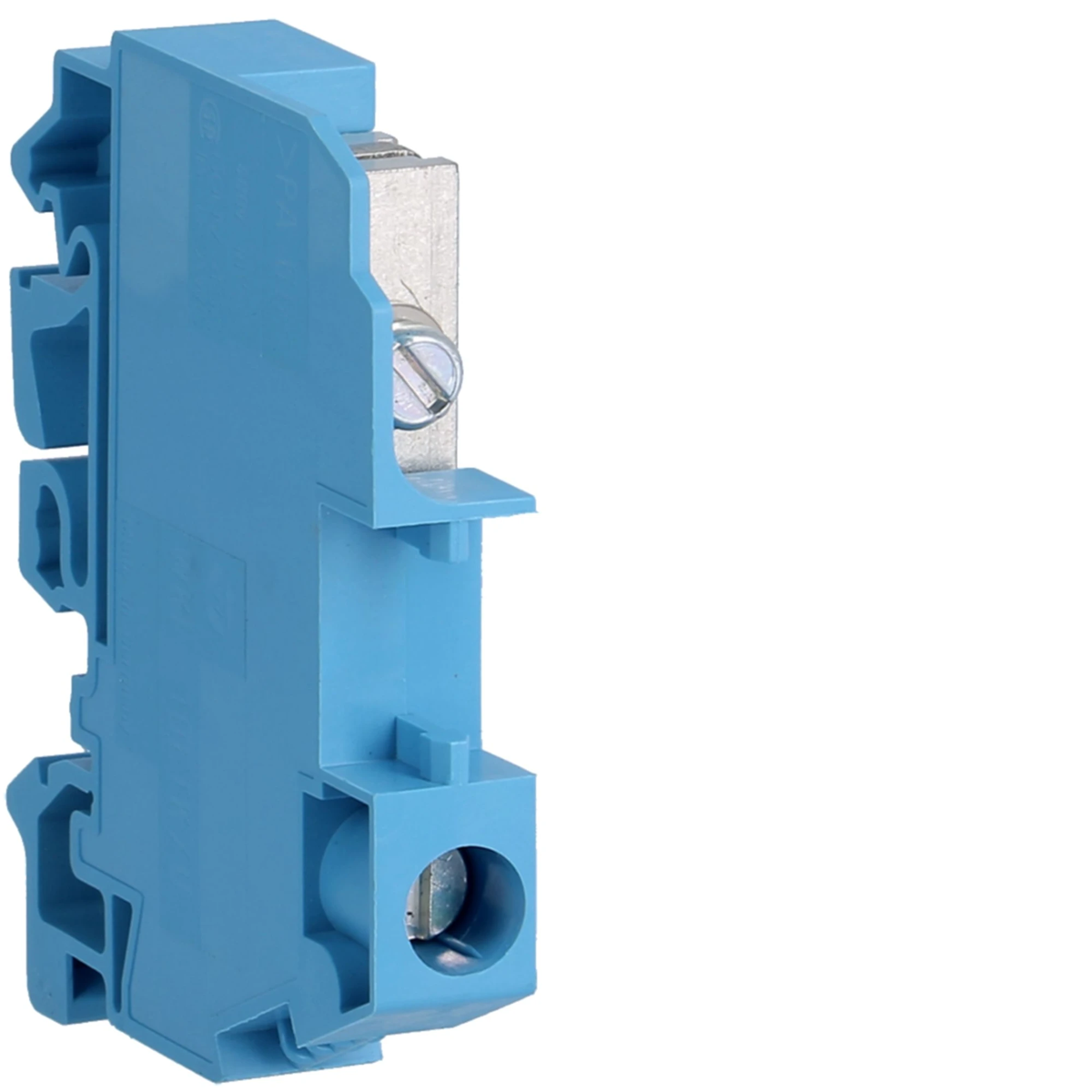

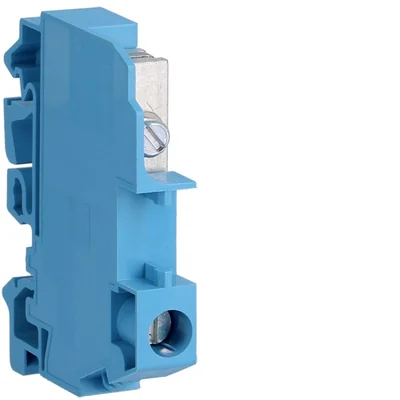

10mm2 neutral terminal block for 10x3mm busbars KXA10ND

local index:
TES125HAGE
Catalog No:
KXA10ND
EAN code:
3250613941888
Manufacturer: HAGER
Energy lost in cables [W]: 1
Depth [mm]: 10
Color: Blue
Price:
5,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Neutral terminal, through, with partition, for 10x3mm busbars, series screw terminals.

Series characteristics:

  • Creep current resistance: KC > 600
  • Temperature resistance: 120°C
  • Possibility of connecting two wires of the same cross-section to one terminal screw (in case PE only 1 wire)
  • Easy wire entry into open terminal due to conical entry
  • Easy to insert screwdriver into lowered terminal screws
  • Idle/idle after loosening screws - especially important for mechanical screwdrivers
  • All parts permanently fixed in the terminal carrier
  • Equal level up to 35 mm2 in order to maintain the required insulation distances between individual groups of terminals, possibly at the beginning or end of a group place a barrier/end plate.

Technical data

  • Energy lost in cables [W]
    1
  • Color
    Blue
  • Rated current [A]
    45
  • Connection type
    With a screw
  • Conductor cross-section (wire) [mm²]
    1 - 16
  • Depth [mm]
    10
  • Material
    Polyamide
  • power loss [W]
    1
  • Wire cross-section (cord) [mm²]
    1 - 10
  • PKWIU
    27.33.13.0

Other technical data

  • Rated current In
    45 A
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Colour
    Blue
  • Type of electric connection
    Screw connection
  • Material insulation body
    Thermoplastic

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 10000 pcs.
Weight (kg) 0,032 1,640 329,000
Width (m) 0,052 0,125 0,800
Length (m) 0,010 0,057 0,625
Depth (m) 0,058 0,265 1,200
