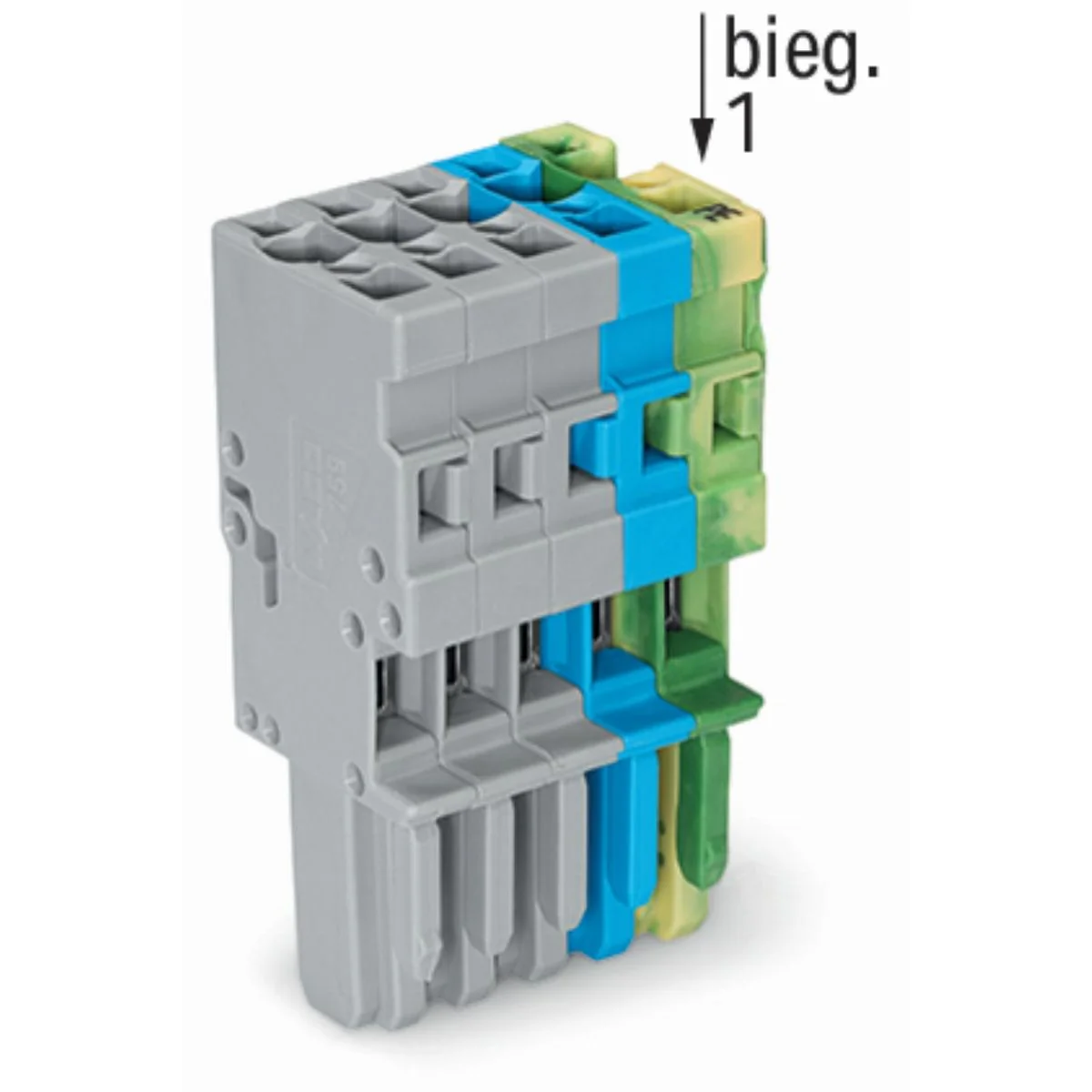

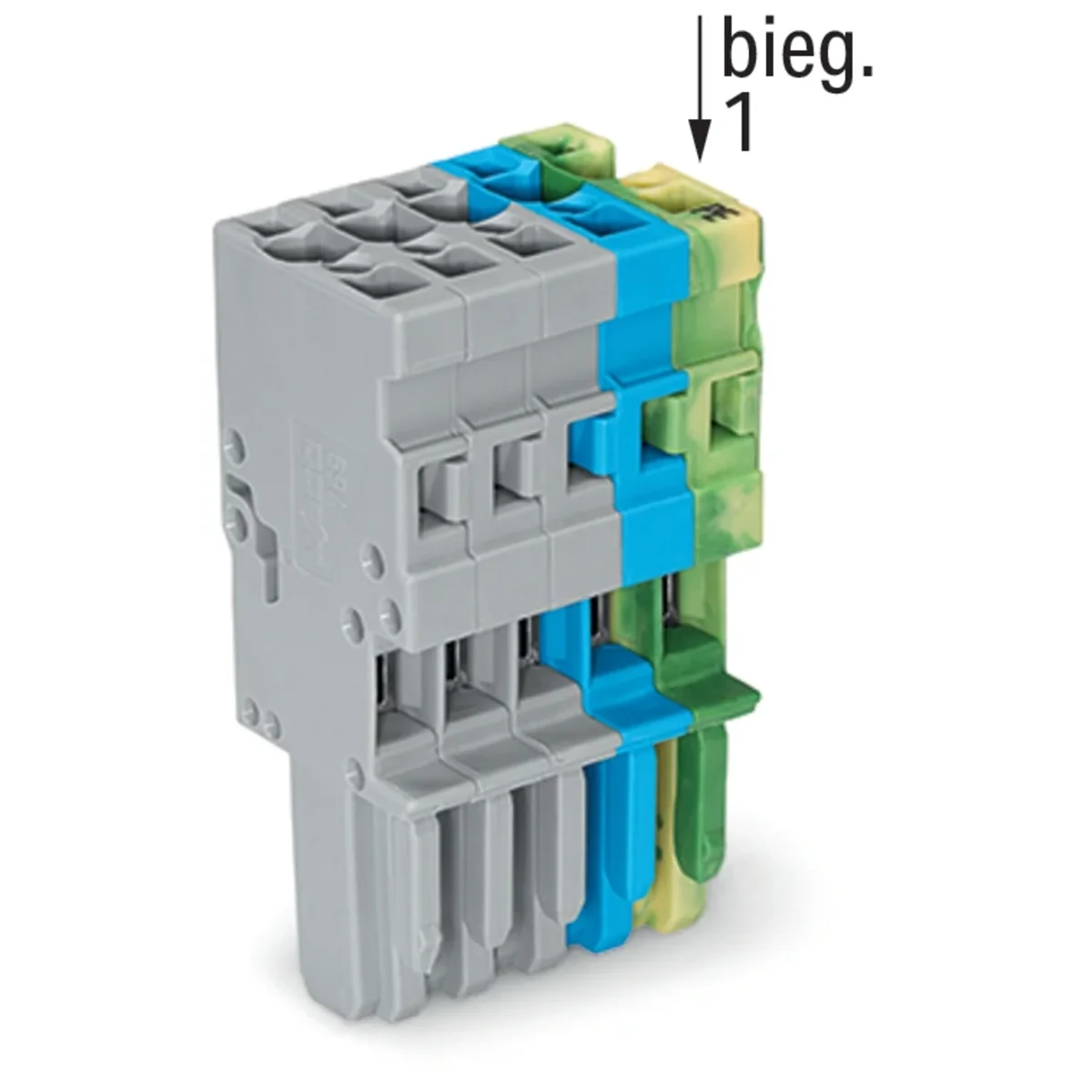

1-wire socket CAGE CLAMP 4mm2 grey-blue-yellow-green 769-105/000-038

local index:
TEB435WAGO
Catalog No:
769-105/000-038
EAN code:
4045454312275
Manufacturer: WAGO ELWAG

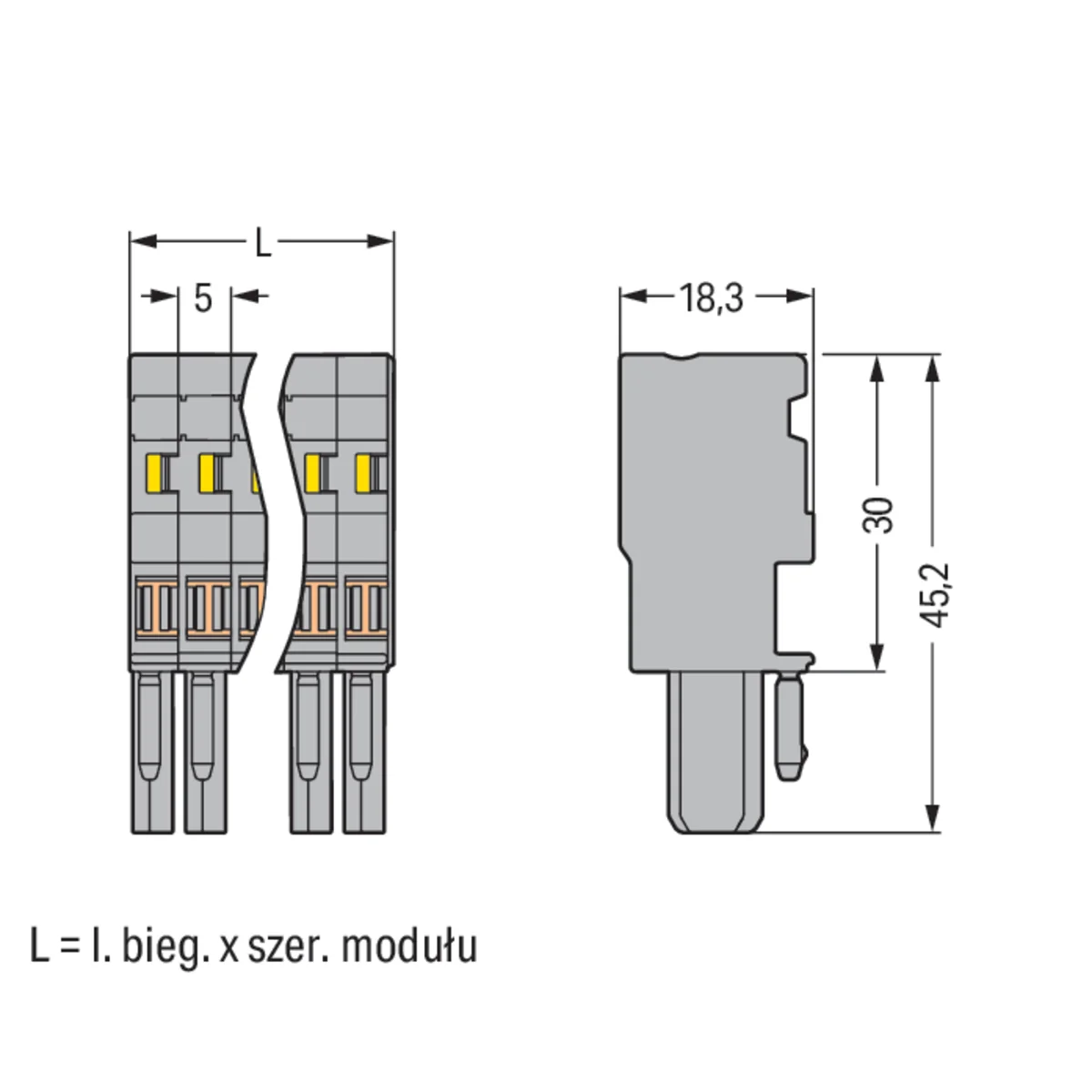

Depth [mm]: 18.3
Number of terminals: 5
Number of potentials: 5
Price:
5,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Multi-wire plugs of this type are designed, in accordance with the EN 61984 standard, for making plug-in connections in a currentless and voltageless state.

Technical data

  • Depth [mm]
    18.3
  • Number of potentials
    5
  • Nominal cross-section [mm²]
    4
  • Wire connection technique
    CAGE CLAMP
  • Number of terminals
    5
  • The plane of description
    Description on the side
  • Width [mm]
    25
  • Height [mm]
    45.2

Other technical data

  • Explosion-tested version 'Ex e'
    No
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.25 ... 2.5 mm²
  • Connectable conductor cross section multi-wired
    0.08 ... 4 mm²
  • Rated voltage
    500 V
  • Type of electrical connection 2
    Spring clamp connection
  • Number of poles
    5
  • Mounting method
    Other
  • Operating temperature
    105 ... 105 °C
  • Width/grid dimension
    25 mm
  • Length
    18.3 mm
  • Colour
    Multi-coloured
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.08 ... 4 mm²
  • Connectable conductor cross section solid-core
    0.08 ... 4 mm²
  • Rated current In
    32 A
  • Type of electrical connection 1
    Spring clamp connection
  • Connection position
    Atop
  • Number of clamp positions per pole
    1
  • Material insulation body
    Thermoplastic
  • Inflammability class of insulation material according to with UL94
    V0
  • Wysokość przy najniższym sposobie montażu
    45.2 mm
  • Closing plate required
    No
  • Transparent
    No

Manufacturer details

  • Manufacturer
    WAGO ELWAG SP. Z O.O.
  • Address
    50-506 UL.PIĘKNA 58A
  • Tax identification number
    8961025689

Bulk packaging

A kind of package Karton Karton
Quantity 50 pcs. 50 pcs.
Weight (kg) 0,892 0,892
Volume (m3) 0,003 0,003
Width (m) 0,134 0,134
Length (m) 0,285 0,285
Depth (m) 0,072 0,072
