1-conductor CAGE CLAMP® socket, orange 231-308/026-000 231-308/026-000

Name: 1-conductor CAGE CLAMP® socket, orange 231-308/026-000
Brand: WAGO ELWAG
SKU: TEB444WAGO
Price: 27.64 PLN
Availability: BackOrder

local index:

TEB444WAGO

Catalog number:

231-308/026-000

EAN code:

4044918347228

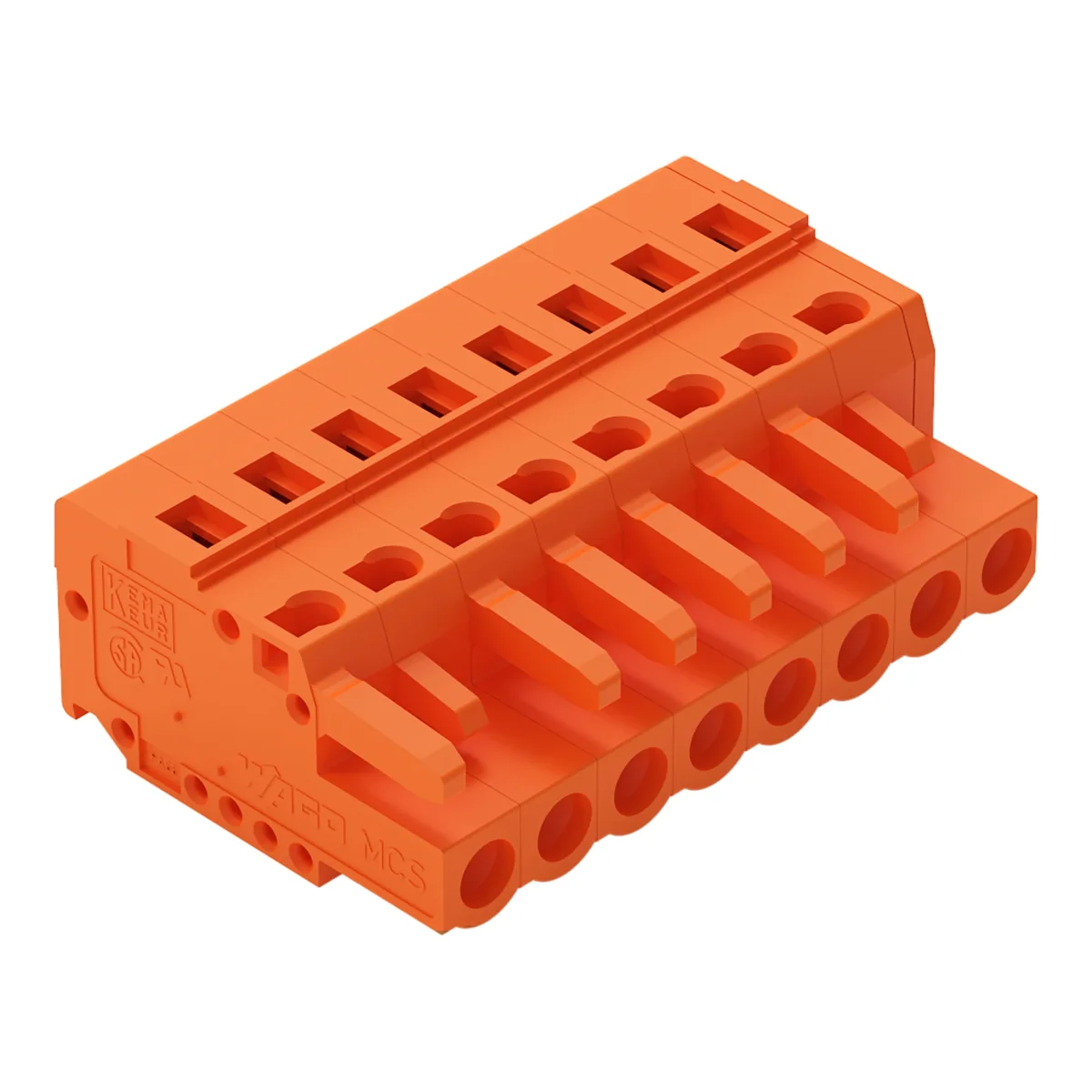

1-conductor CAGE CLAMP® socket, orange 231-308/026-000

Click on the photo to enlarge

Manufacturer: WAGO ELWAG

Price:

27,64 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging

Technical data

Other technical data

Type of connection

Printed circuit board to cable
Number of poles

8
Modular spacing contacts

5.08 mm
Angle contact/conductor connection

180° (horizontal)
Rated voltage

320 V
Over voltage category

III
Connectable conductor cross section fine-strand without cable end sleeve

0.08 ... 2.5 mm²
Connectable conductor cross section solid-core

0.08 ... 2.5 mm²
Type of electric connection

Spring clamp connection
Material of contact surface

Tin
Material insulation body

Thermoplastic
Coating housing

Uncoated
With protective conductor

No
Degree of protection (IP), mounted

IP20

Contact type

Bus
Number of plug-in contact rows

1
Modular spacing connections

5.08 mm
Rated current In

16 A
Rated surge voltage

4 kV
Pollution degree

2
Connectable conductor cross section fine-strand with cable end sleeve

0.25 ... 21.5 mm²
Connectable conductor cross section multi-wired

0.08 ... 2.5 mm²
Connectable cable type

Tubular cable
Material contact

Other copper alloys
Housing material

Plastic
Housing colour

Orange
Operating temperature

-60 ... 85 °C

Manufacturer details

Manufacturer

WAGO GmbH & Co. KG
Address

32423 Minden Hansastraße 27 Niemcy
E-mail

wago.elwag@wago.com

Bulk packaging

A kind of package	Karton	Karton
Quantity	50 pcs.	50 pcs.
Weight (kg)	0,942	0,942
Volume (m3)	0,003	0,003
Width (m)	0,256	0,256
Length (m)	0,318	0,318
Depth (m)	0,040	0,040
