Control receiver (potential-free), CSAU-01/02 240694
local index:
IEE003MOEL
Catalog No:
240694
EAN code:
4015082406943
Manufacturer:
EATON
Level of security: IP20
Price:
231,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

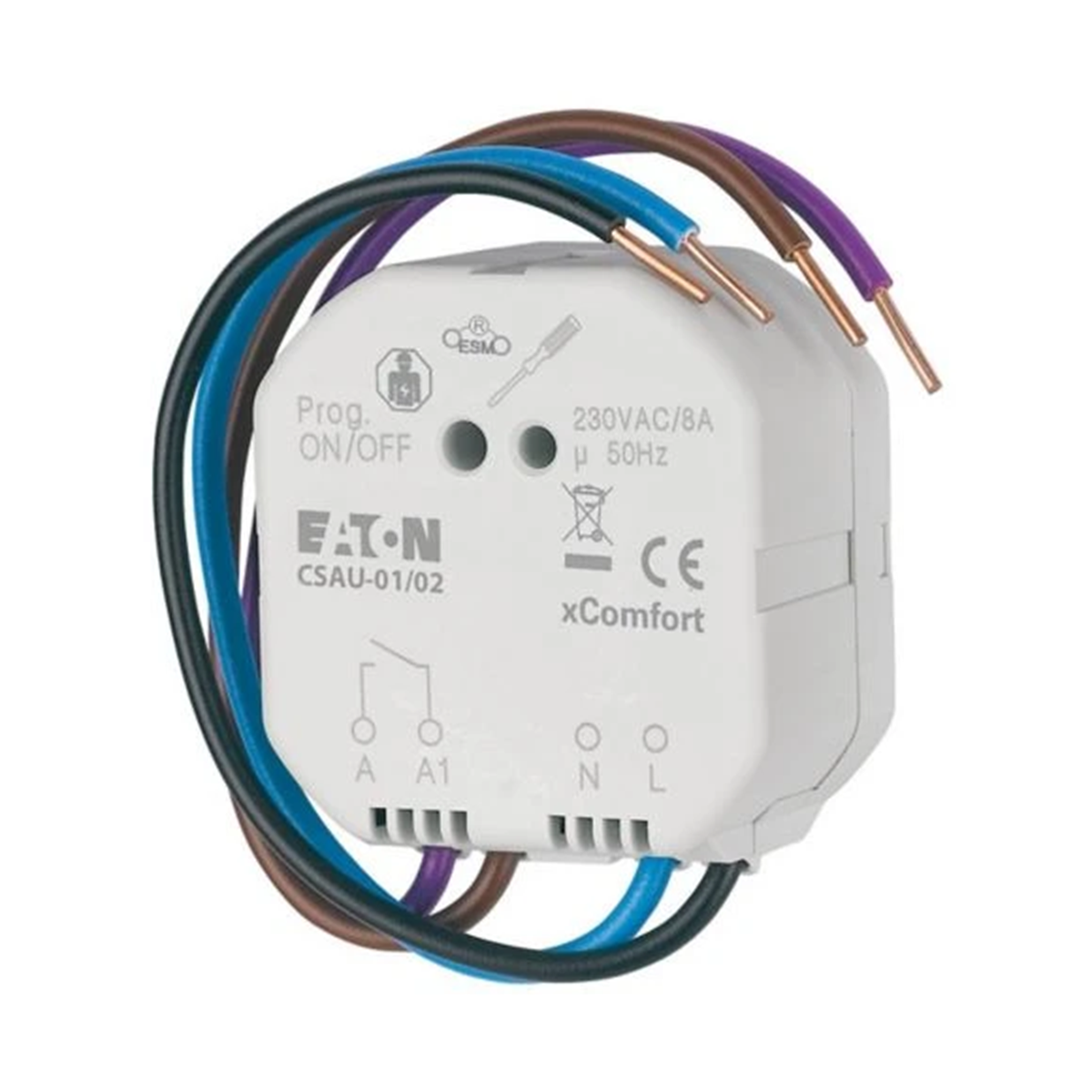

Wireless control receiver (flush-mounted)
• It is used to remotely turn on/off lighting, fans and other electrical devices using a control signal sent by a wireless transmitter, e.g. a remote control. The receiver can be controlled from 15 different transmitters. It is powered from the mains.
• It is used to remotely turn on/off lighting, fans and other electrical devices using a control signal sent by a wireless transmitter, e.g. a remote control. The receiver can be controlled from 15 different transmitters. It is powered from the mains.
Technical data
-
Level of securityIP20
Other technical data
-
Bus system KNXNo
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Width in number of modular spacings3
-
With LED indicationNo
-
Output power0 W
-
Max. number of switching contacts1
-
Rated current8 A
-
Different phases connectableNo
-
Bus module detachableYes
-
Modular expandabilityNo
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsxComfort
-
Mounting methodFlush-mounted
-
Local operation/hand operationNo
-
Max. switching power1840 W
-
Suitable for C-loadNo
-
Max. switching current8 A
-
Rated operating voltage230 ... 230 V
-
With bus connectionNo
-
Min. depth of built-in installation box26 mm
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,082 | 0,082 | 4,920 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,065 | 0,075 | 0,180 |
| Length (m) | 0,065 | 0,085 | 0,385 |
| Depth (m) | 0,027 | 0,035 | 0,230 |
