el12 Cables and wires Power cables Al power cables up to 1 kV

YAKXS 4x70 SE cable 110198019

local index:
KEA451NKTQ
Catalog No:
110198019
EAN code:
8591462026490

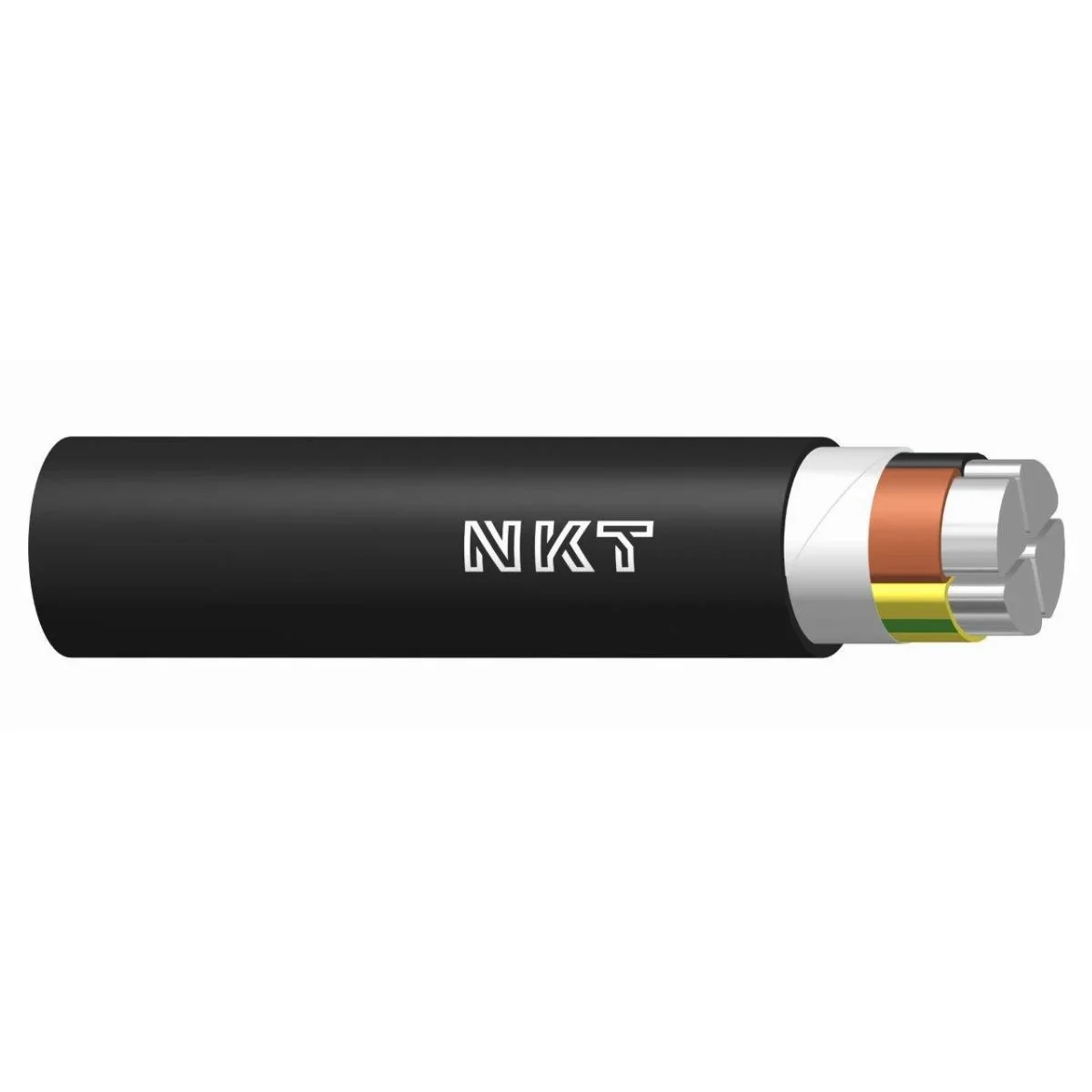

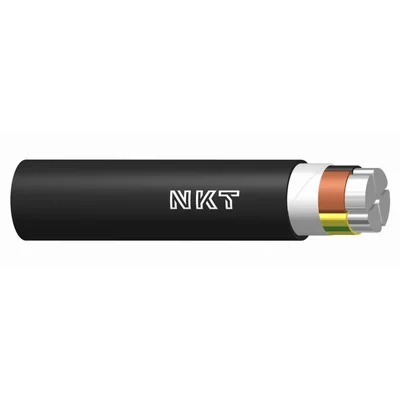

YAKXS 4x70 SE cable
YAKXS 4x70 SE cable

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 4
Color: Gray
Vein material: Aluminum
See full description
Large-size product
Price:
15,10 €
gross / m.
(including VAT 23%)
Delivery in 3h
Product on individual request
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Print
Product description Technical data Manufacturer details Files to download

Product description

YAKXS 4x70 SE cable

Technical data

  • Number of veins
    4
  • Vein material
    Aluminum
  • Core
    Wire
  • Accurate color
    Gray
  • PKWIU
    27.32.13.0
  • Color
    Gray
  • Core cross-section [mm²]
    70
  • Libra
    1561 kg/km
  • Insulation material
    PVC

Other technical data

  • Conductor material
    Aluminium
  • Nominal cross section conductor
    70 mm²
  • Shape of conductor
    Sector-shaped
  • Material core insulation
    Polyolefin
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Max. conductor temperature
    90 °C
  • Nominal voltage U0
    0.6 kV
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Number of cores
    4
  • Specification core insulation
    Polyethylene (PE)
  • Laminated sheath
    No
  • Żyła ochronna
    No
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Circuit integrity
    No
  • Outer diameter approx.
    28.1 mm
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 90 °C
  • Nominal voltage U
    1 kV

Dane CPR (Construction Products Regulation)

  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000080
  • Oznaczenie produktu
    YAKXS 4x70 SE
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Manufacturer details

  • Manufacturer
    NKT s.r.o
  • Address
    CZ 27201 Kladno Prumyslova 1130 Czechy
  • E-mail
    info.pl@nkt.com
