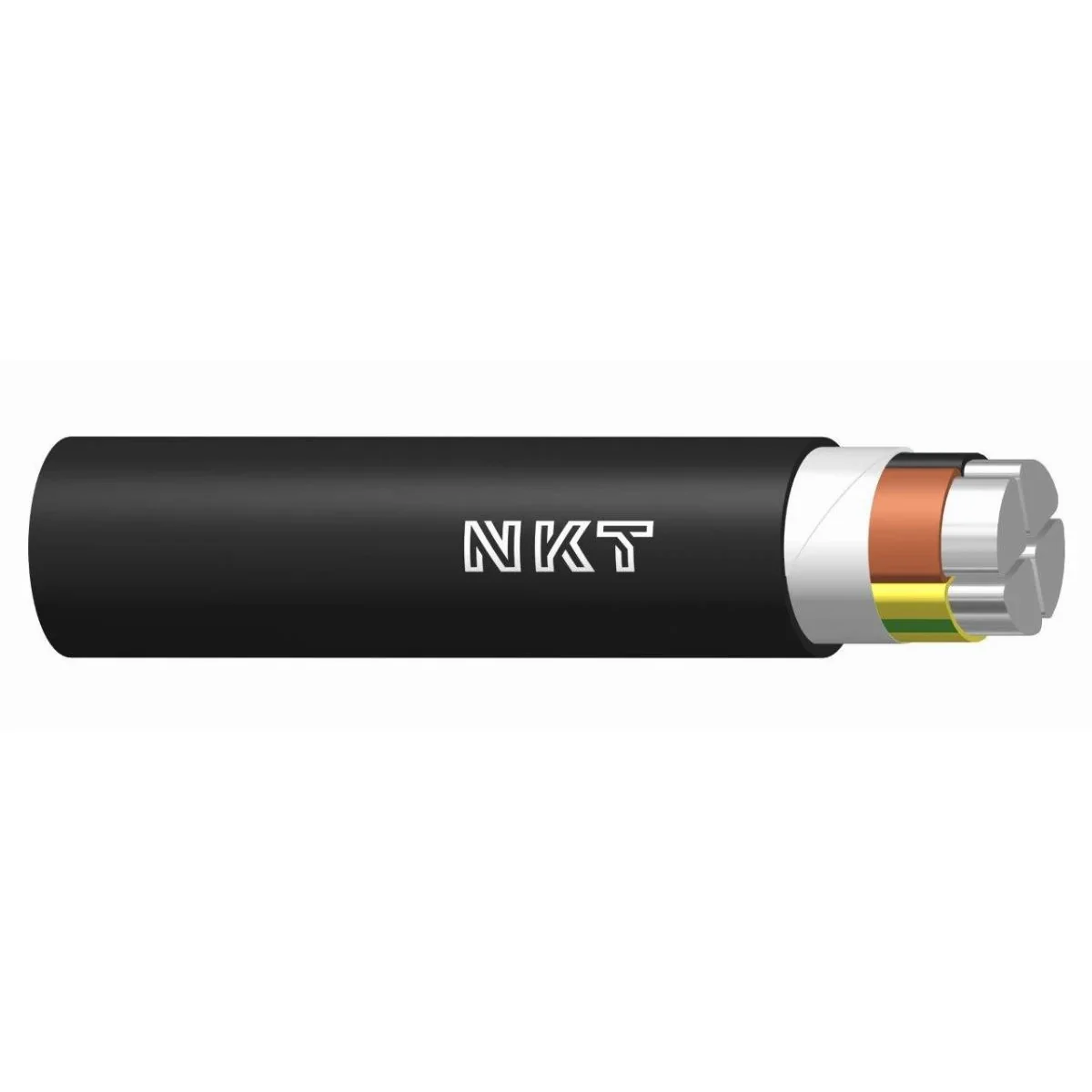

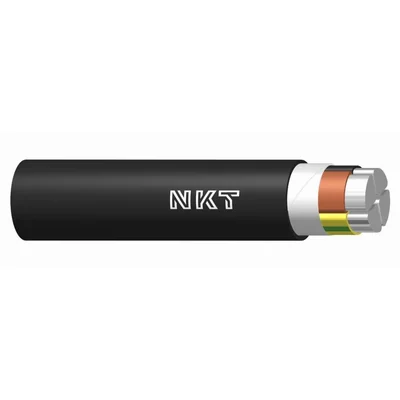

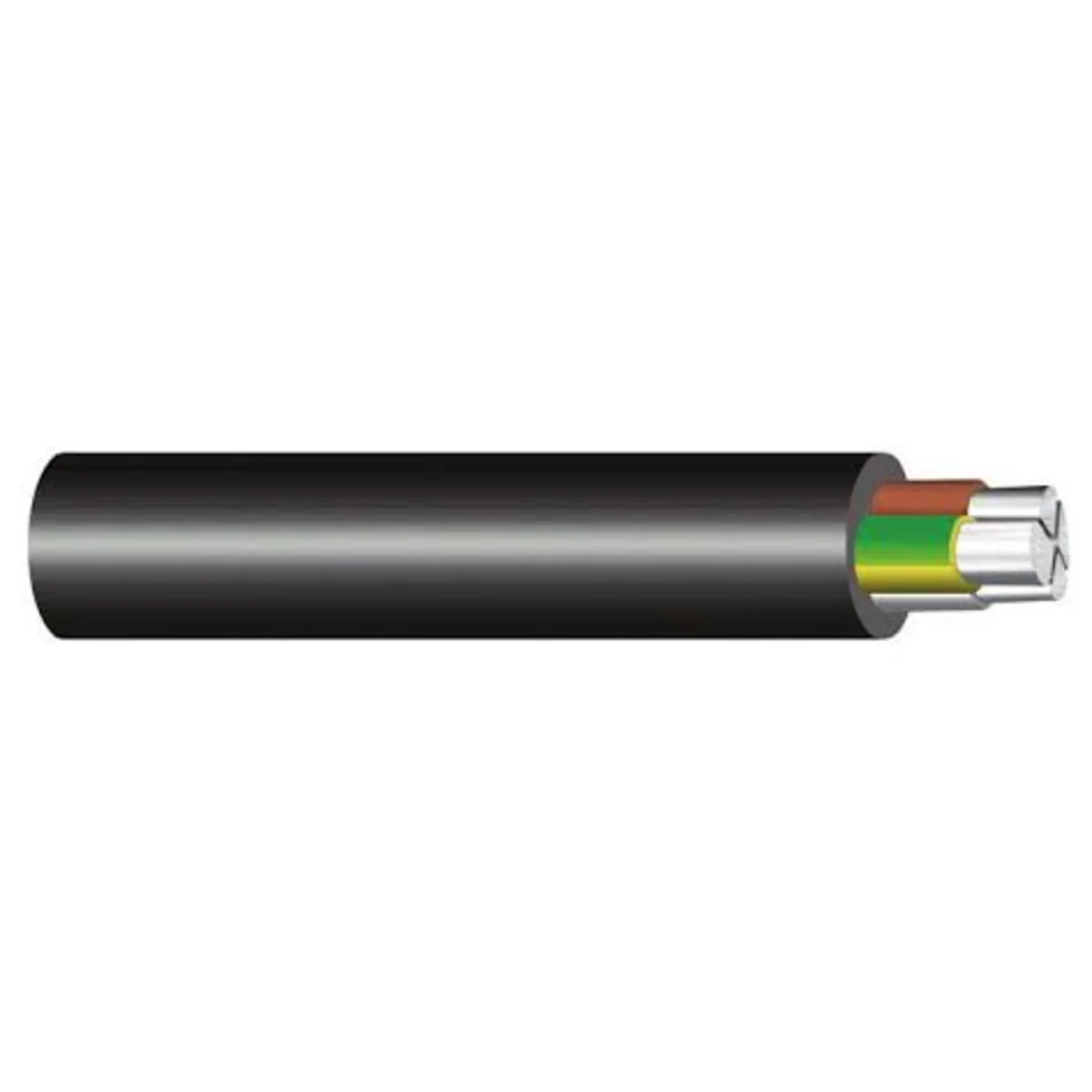

YAKXS 1x240 RMV cable 110198010

local index:
KEA529NKTQ
Catalog No:
110198010
EAN code:
8591462026391
Manufacturer: NKT
Number of veins: 1
Vein material: Aluminum
Core cross-section [mm²]: 240
Large-size product
Price:
10,43 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 896 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

YAKXS 1x240 RMV cable

Technical data

  • Number of veins
    1
  • Core cross-section [mm²]
    240
  • Insulation material
    PVC
  • Vein material
    Aluminum
  • Core
    Wire
  • PKWIU
    27.32.13.0

Other technical data

  • Conductor material
    Aluminium
  • Nominal cross section conductor
    240 mm²
  • Conductor resistance at 20 °C
    0.125
  • Number of cores
    1
  • Specification core insulation
    Crosslinked polyethylene (XLPE)
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Cable geometry
    Round
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Min. permitted bending radius, stationary application/permanent installation
    377 mm
  • Max. conductor temperature
    90 °C
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 90 °C
  • Nominal voltage U
    1 kV
  • Certified for shipboard application
    No
  • Suitable as high-voltage cable
    No
  • Circuit integrity according to EN 50200
    No
  • Circuit integrity according to IEC 60331-3
    No
  • Flame retardant according to EN 60332-1-2
    Yes
  • Flame retardant according to EN 60332-3-22 (Cat A)
    No
  • Flame retardant according to EN 60332-3-24 (Cat C)
    No
  • Halogen free according to EN 60754-1
    No
  • Halogen free according to EN 60754-3
    No
  • Conductor surface
    Bare
  • Conductor category
    Class 2 = stranded
  • Shape of conductor
    Round
  • Material core insulation
    Polyolefin
  • Core identification according to HD 308 S2
    Yes
  • Laminated sheath
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Outer diameter approx.
    25.1 mm
  • Weight
    892
  • Permitted cable outer temperature during assembling/handling
    -5 ... 40 °C
  • Nominal voltage U0
    0.6 kV
  • Suitable as installation cable
    No
  • Suitable as medium-voltage cable
    No
  • Certified as airport lighting cable
    No
  • Circuit integrity according to EN 50200 annex E
    No
  • Circuit integrity according to IEC 60331-21
    No
  • Flame retardant according to EN 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to EN 60332-3-23 (Cat B)
    No
  • Flame retardant according to EN 60332-3-25 (Cat D)
    No
  • Halogen free according to EN 60754-2
    No

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000080
  • Oznaczenie produktu
    YAKXS 1x240 RMC
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
