Shielded mining cable with PVC insulation and sheath YnOGYekm 0.6/1kV 3x10+10+6 GP0203

Name: Shielded mining cable with PVC insulation and sheath YnOGYekm 0.6/1kV 3x10+10+6
Brand: BITNER
SKU: KEP010BITN
Price: 36.03 PLN

local index:

KEP010BITN

Catalog No:

GP0203

EAN code:

5902956151254

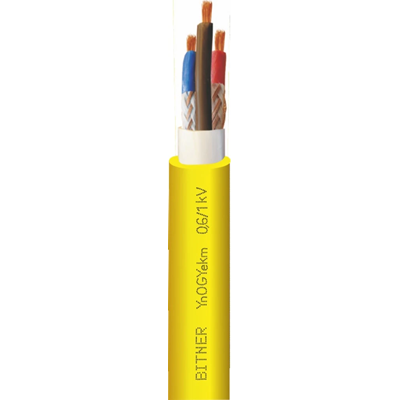

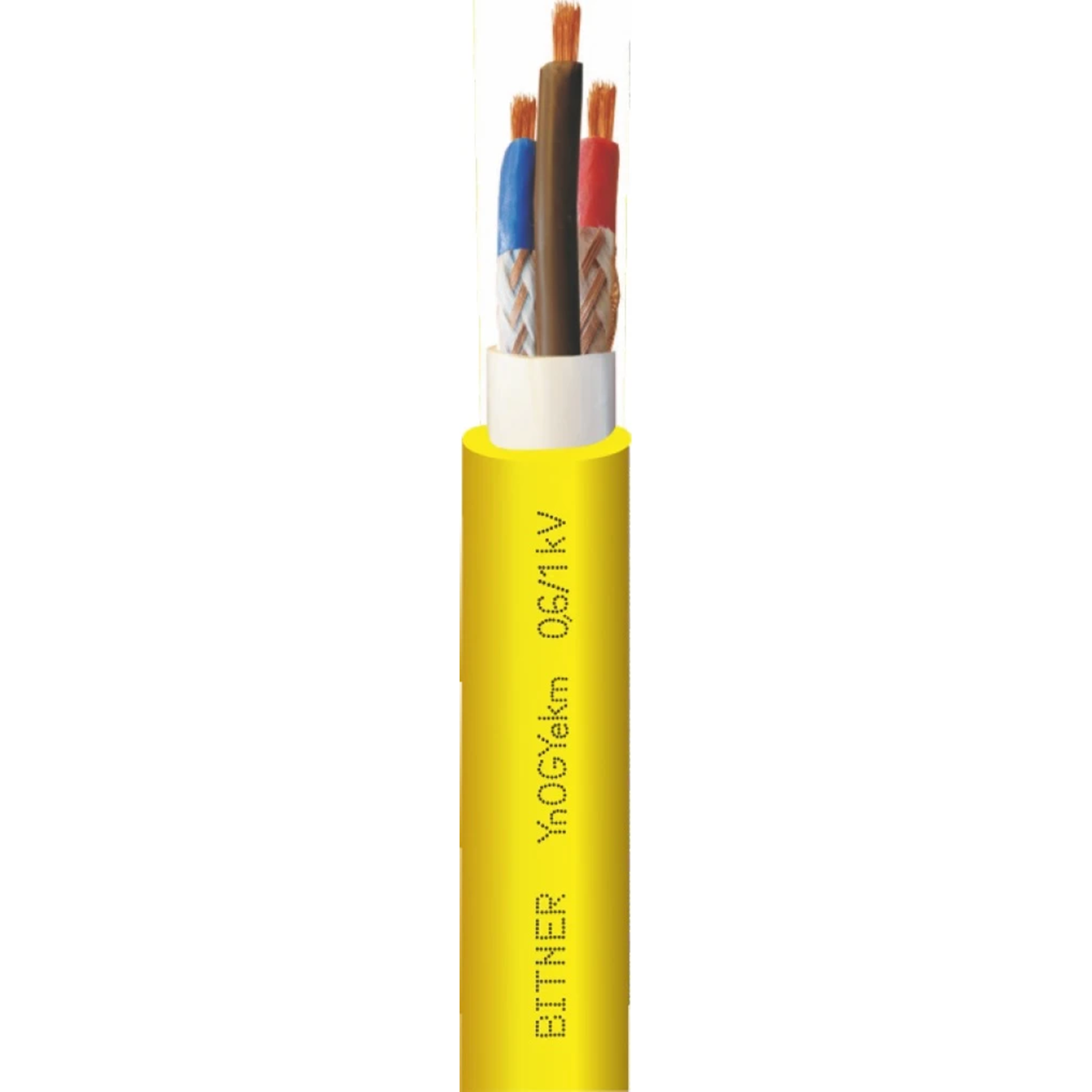

Shielded mining cable with PVC insulation and sheath YnOGYekm 0.6/1kV 3x10+10+6

Click on the photo to enlarge

Manufacturer: BITNER

Permissible core temperature during short-circuit [°C]: 160

Maximum operating temperature [°C]: 70

Minimum bending radius [mm]: for permanent installation 6 x diameter, for mobile receivers 10 x diameter

See full description

Large-size product

Price:

36,03 €

gross / m.

(including VAT 23%)

Delivery in 3h

Product on individual request

Pickup in 1h

Quantity m.

(multiplicity:

)

Add to inquiry

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Sheathed cable, mining, with copper cores, PVC insulation, with individual screens on the cores in the form of a copper braid, with an outer PVC sheath, with increased resistance to flame spread

Technical data

Permissible core temperature during short-circuit [°C]

160
Minimum bending radius [mm]

for permanent installation 6 x diameter, for mobile receivers 10 x diameter
Outer diameter [mm]

25.8
PKWIU

27.32.13
