el12 Cables and wires Power cables Al power cables up to 1 kV

Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY) 110198037

local index:
KEA400NKTQ
Catalog No:
110198037
EAN code:
8591462103580

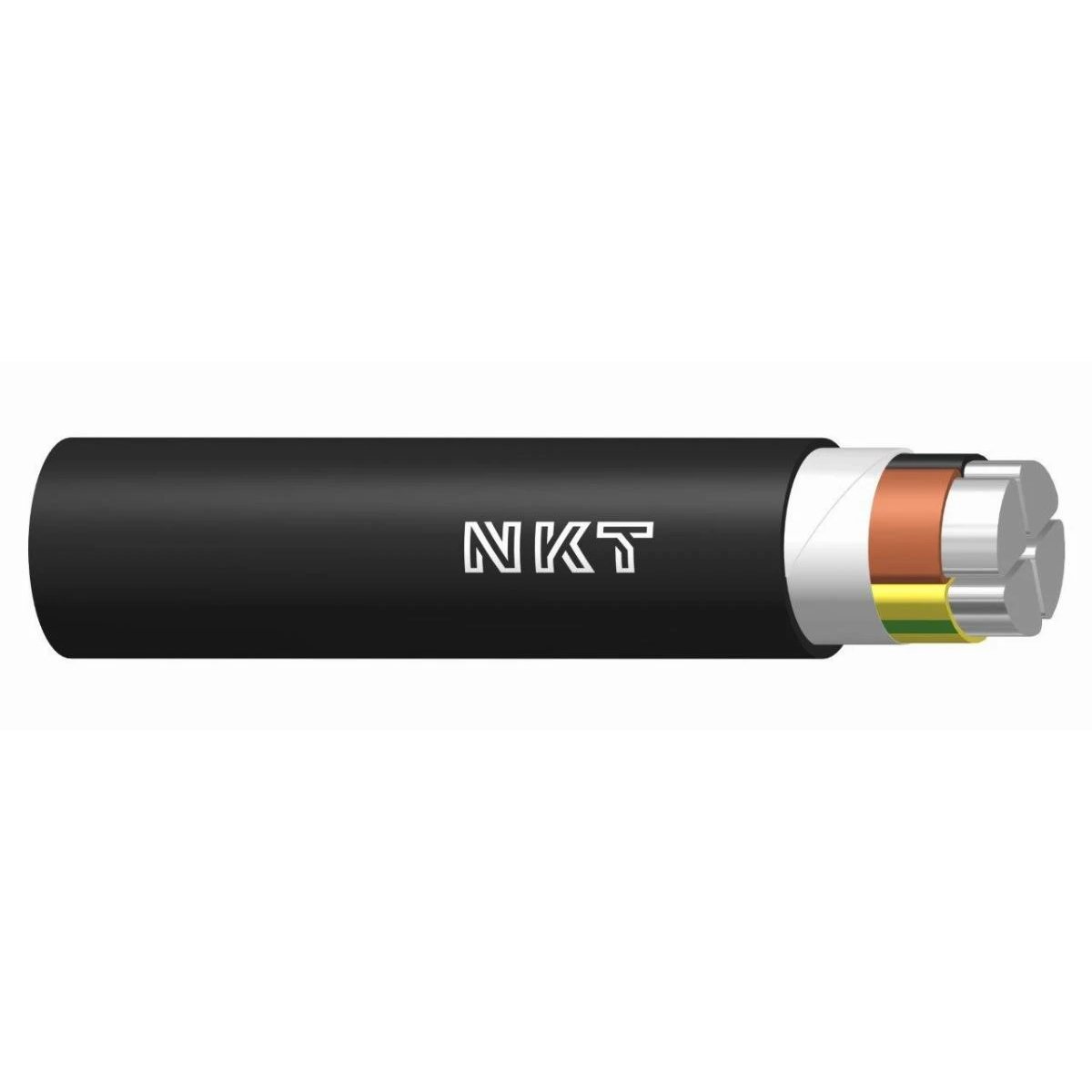

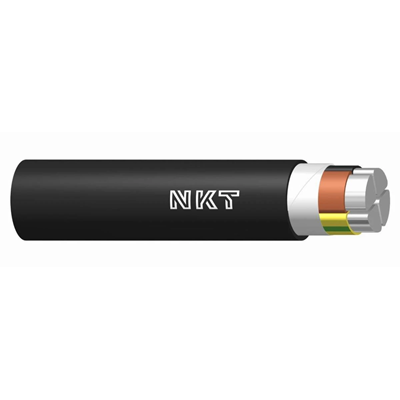

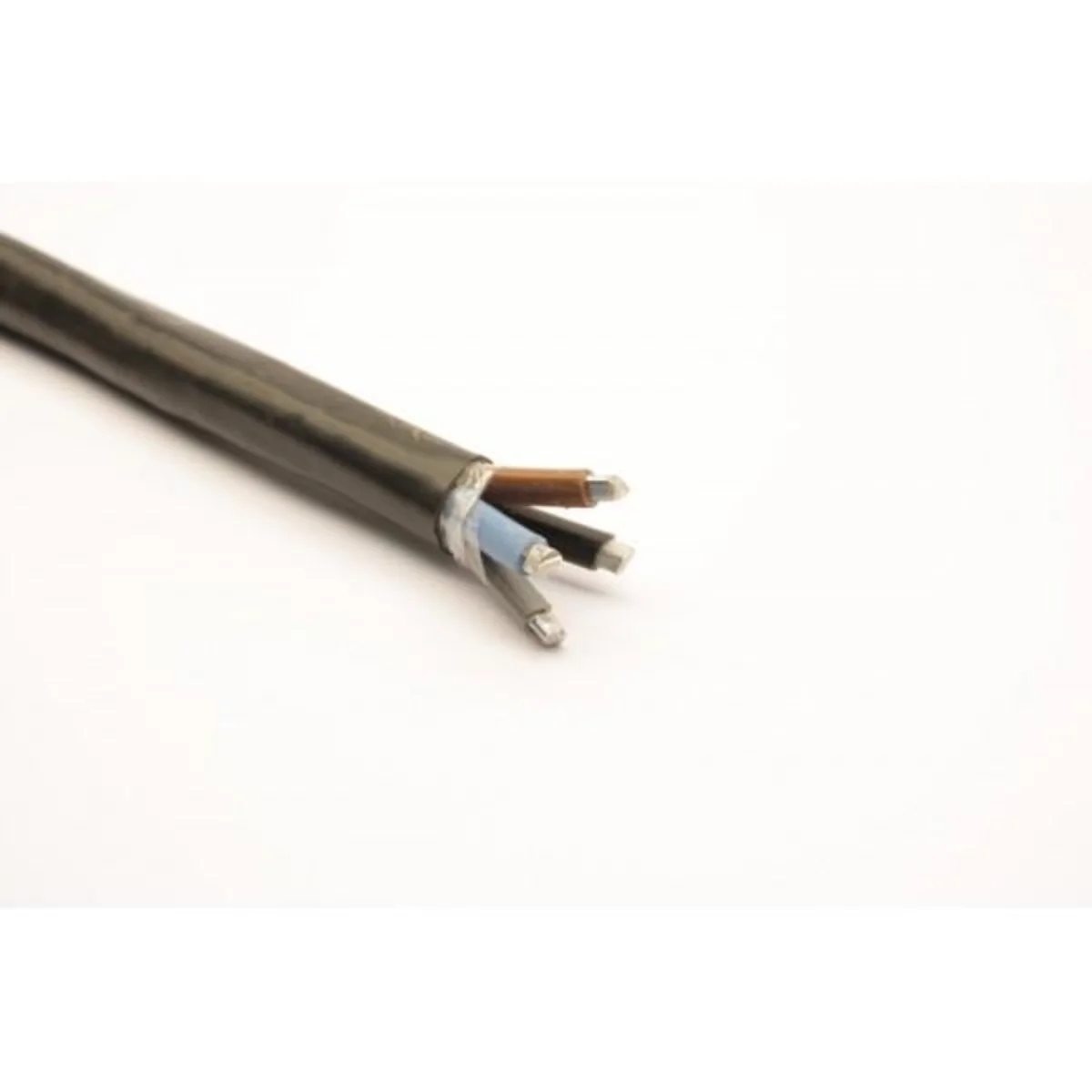

Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)
Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)
Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)
Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)
Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)
Power cable YAKXS 4x35 SE cross-linked 0.6/1kV (NA2XY)

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 4
Color: Gray
Vein material: Aluminum
See full description
Large-size product
Price:
4,42 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 5500 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description


YAKXS 4x35 SE power cable cross-linked 0.6/1kV (NA2XY) with aluminum conductors and cross-linked polyethylene insulation, PVC sheath.


Used for electricity transmission, in power lines run in the air, inside and outside rooms, in cable ducts and laid directly in the ground.


Large cross-sections of cables are used in the power industry - for energy transmission between transformer stations, also in industry - for supplying electricity to industrial buildings, in devices requiring a lot of power.

Technical data

  • Number of veins
    4
  • Vein material
    Aluminum
  • Core cross-section [mm²]
    35
  • Accurate color
    Gray
  • PKWIU
    27.32.13.0
  • Color
    Gray
  • Rated voltage [V]
    600/1000
  • Core
    Wire
  • Insulation material
    PVC

Other technical data

  • Conductor material
    Aluminium
  • Nominal cross section conductor
    35 mm²
  • Conductor resistance at 20 °C
    0.868
  • Number of cores
    4
  • Specification core insulation
    Crosslinked polyethylene (XLPE)
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Cable geometry
    Round
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Min. permitted bending radius, stationary application/permanent installation
    257 mm
  • Max. conductor temperature
    90 °C
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 90 °C
  • Nominal voltage U
    1 kV
  • Certified for shipboard application
    No
  • Suitable as high-voltage cable
    No
  • Circuit integrity according to EN 50200
    No
  • Circuit integrity according to IEC 60331-3
    No
  • Flame retardant according to EN 60332-1-2
    Yes
  • Flame retardant according to EN 60332-3-22 (Cat A)
    No
  • Flame retardant according to EN 60332-3-24 (Cat C)
    No
  • Halogen free according to EN 60754-1
    No
  • Halogen free according to EN 60754-3
    No
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Shape of conductor
    Sector-shaped
  • Material core insulation
    Polyolefin
  • Core identification according to HD 308 S2
    Yes
  • Laminated sheath
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Outer diameter approx.
    21.4 mm
  • Weight
    603
  • Permitted cable outer temperature during assembling/handling
    -5 ... 40 °C
  • Nominal voltage U0
    0.6 kV
  • Suitable as installation cable
    No
  • Suitable as medium-voltage cable
    No
  • Certified as airport lighting cable
    No
  • Circuit integrity according to EN 50200 annex E
    No
  • Circuit integrity according to IEC 60331-21
    No
  • Flame retardant according to EN 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to EN 60332-3-23 (Cat B)
    No
  • Flame retardant according to EN 60332-3-25 (Cat D)
    No
  • Halogen free according to EN 60754-2
    No

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000080
  • Oznaczenie produktu
    YAKXS 4x35 SE
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
