Power cable with copper conductors, armored with steel tape YKYFtZny 5x4 Ż RE 0.6/1kV EM1945

Name: Power cable with copper conductors, armored with steel tape YKYFtZny 5x4 Ż RE 0.6/1kV
Brand: BITNER
SKU: KEE010BITN
Price: 9.23 PLN

local index:

KEE010BITN

Catalog No:

EM1945

EAN code:

5902956290380

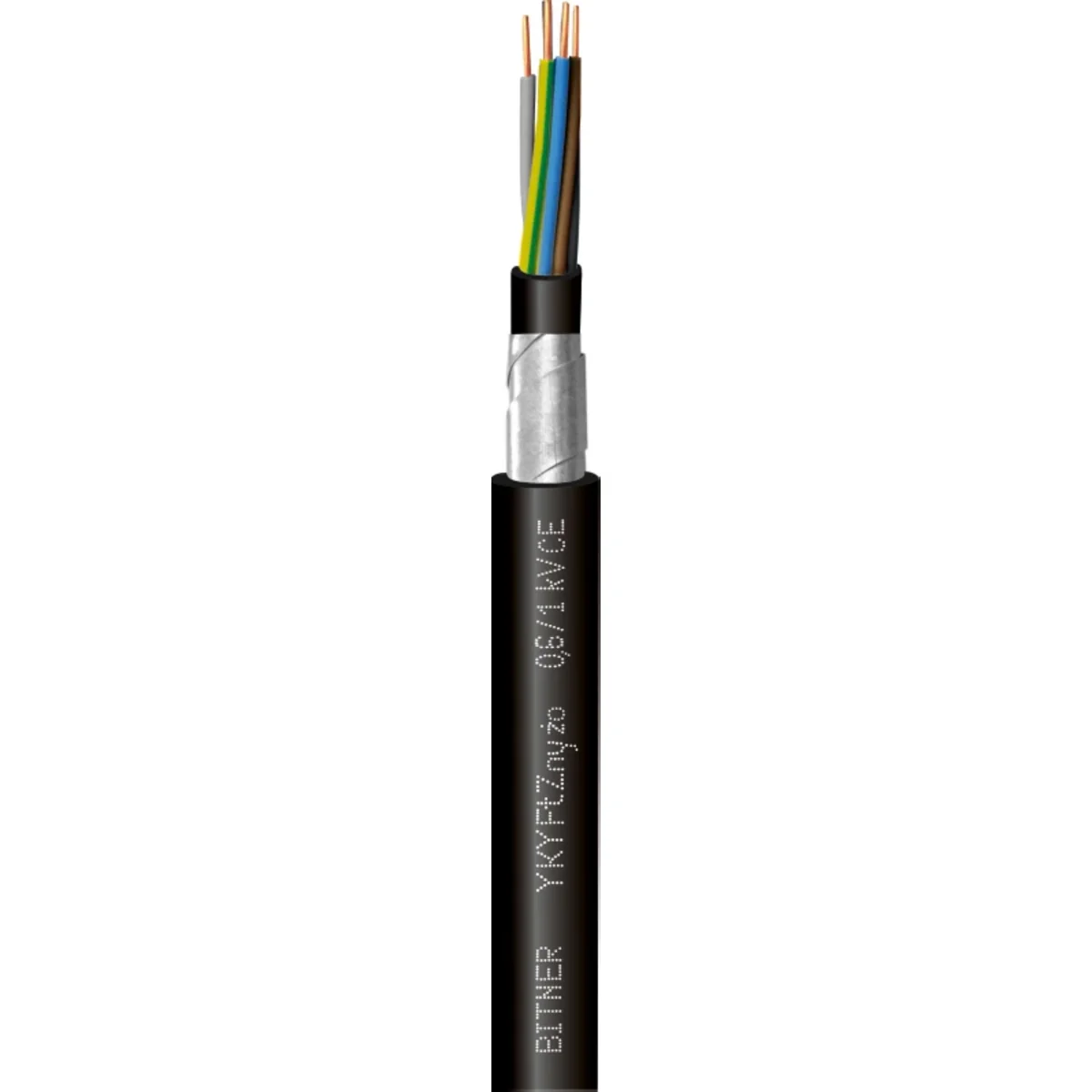

Power cable with copper conductors, armored with steel tape YKYFtZny 5x4 Ż RE 0.6/1kV

Click on the photo to enlarge

Manufacturer: BITNER

Number of veins: 5

Color: Black

Maximum operating temperature [°C]: 70

See full description

Large-size product

Price:

9,23 €

gross / m.

(including VAT 23%)

Delivery in 3h

Product on individual request

Pickup in 1h

Quantity m.

(multiplicity:

)

Add to inquiry

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

The cables are designed to supply electricity to low voltage receivers. The cables are suitable for permanent installation, for laying directly in the ground and cable ducts, on structures (overpasses), in places with high risk of mechanical damage, in particular transverse forces.

Technical data

Number of veins

5
Maximum operating temperature [°C]

70
Voltage test [kV]

4
Outer diameter [mm]

17.9
Wire cross-section [mm²]

5x4

Color

Black
Maximum conductor temperature during short-circuit [°C]

160
Core cross-section [mm²]

4
Accurate color

Black
PKWIU

27.32.13

Dane CPR (Construction Products Regulation)

Wydzielane substancje niebezpieczne:

brak
Numer referencyjny DoP (DWU)

0075/DWU/E/2017
Oznaczenie produktu

YKYFtZnyżo 0,6/1kV 5x4RE

Reakcja na ogień:

Fca
Zharmonizowana specyfikacja techniczna (norma):

PN-EN 50575
Zastosowanie:

Dostarczanie energii do budynków i innych obiektów budowlanych z uwzględnieniem ograniczenia powstawania i rozprzestrzeniania się ognia.
