Power cable with copper conductors, armored with steel tape YKYFtZny 3x2.5 Ż RE 0.6/1kV EM1925

Name: Power cable with copper conductors, armored with steel tape YKYFtZny 3x2.5 Ż RE 0.6/1kV
Brand: BITNER
SKU: KEE003BITN
Price: 17.90 PLN
Availability: BackOrder

Indice locale:

KEE003BITN

Numero di catalogo:

EM1925

Codice EAN:

5902956290182

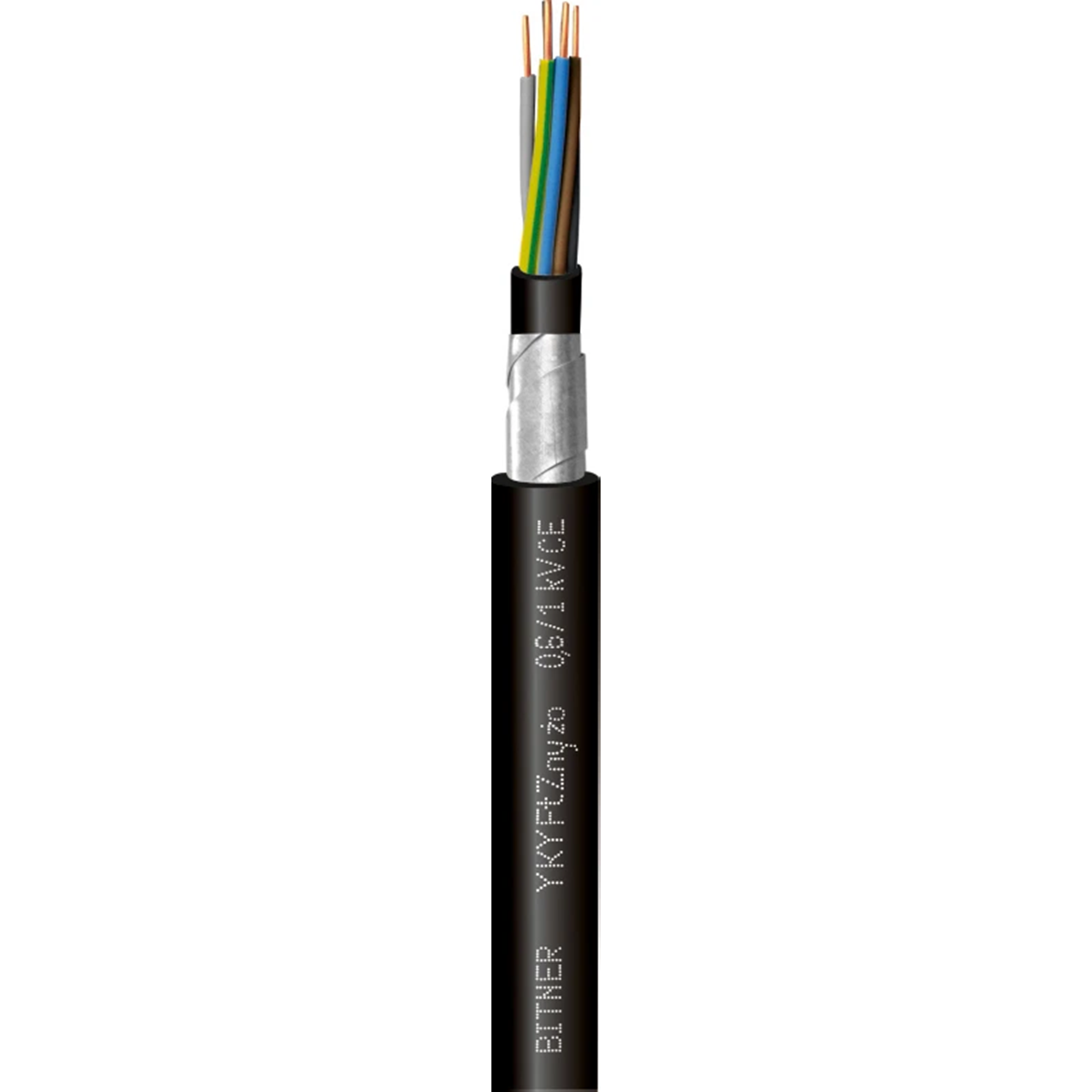

Power cable with copper conductors, armored with steel tape YKYFtZny 3x2.5 Ż RE 0.6/1kV

Clicca sulla foto per ingrandire

Produttore: BITNER

Number of veins: 3

Color: Black

Maximum operating temperature [°C]: 70

Vedi la descrizione completa

Prodotto di grandi dimensioni

Prezzo:

17,90 zł

gross / metro

(inclusa IVA 23%)

Esaurito

Su ordinazione

Aggiungi alla richiesta di preventivo

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore File da scaricare

Descrizione del prodotto

The cables are designed to supply electricity to low voltage receivers. The cables are suitable for permanent installation, for laying directly in the ground and cable ducts, on structures (overpasses), in places with high risk of mechanical damage, in particular transverse forces.

Dati tecnici

Number of veins

3
Maximum operating temperature [°C]

70
Voltage test [kV]

4
Outer diameter [mm]

14.2
PKWIU

27.32.13

Color

Black
Maximum conductor temperature during short-circuit [°C]

160
Core cross-section [mm²]

2.5
Wire cross-section [mm²]

3x2.5

Dane CPR (Construction Products Regulation)

Wydzielane substancje niebezpieczne:

brak
Numer referencyjny DoP (DWU)

0075/DWU/E/2017
Oznaczenie produktu

YKYFtZnyżo 0,6/1kV 3x2,5RE

Reakcja na ogień:

Fca
Zharmonizowana specyfikacja techniczna (norma):

PN-EN 50575
Zastosowanie:

Dostarczanie energii do budynków i innych obiektów budowlanych z uwzględnieniem ograniczenia powstawania i rozprzestrzeniania się ognia.
