MV power cable with XLPE insulation XRUHAKXS 1x240RMC/50 12/20kV G-116879

MV power cable by Telefonika (catalogue number G-016879) with XLPE XRUHAKXS 1X240/50 insulation is a product intended for the transmission of electricity in lines with a rated voltage not exceeding 12/20 kV.

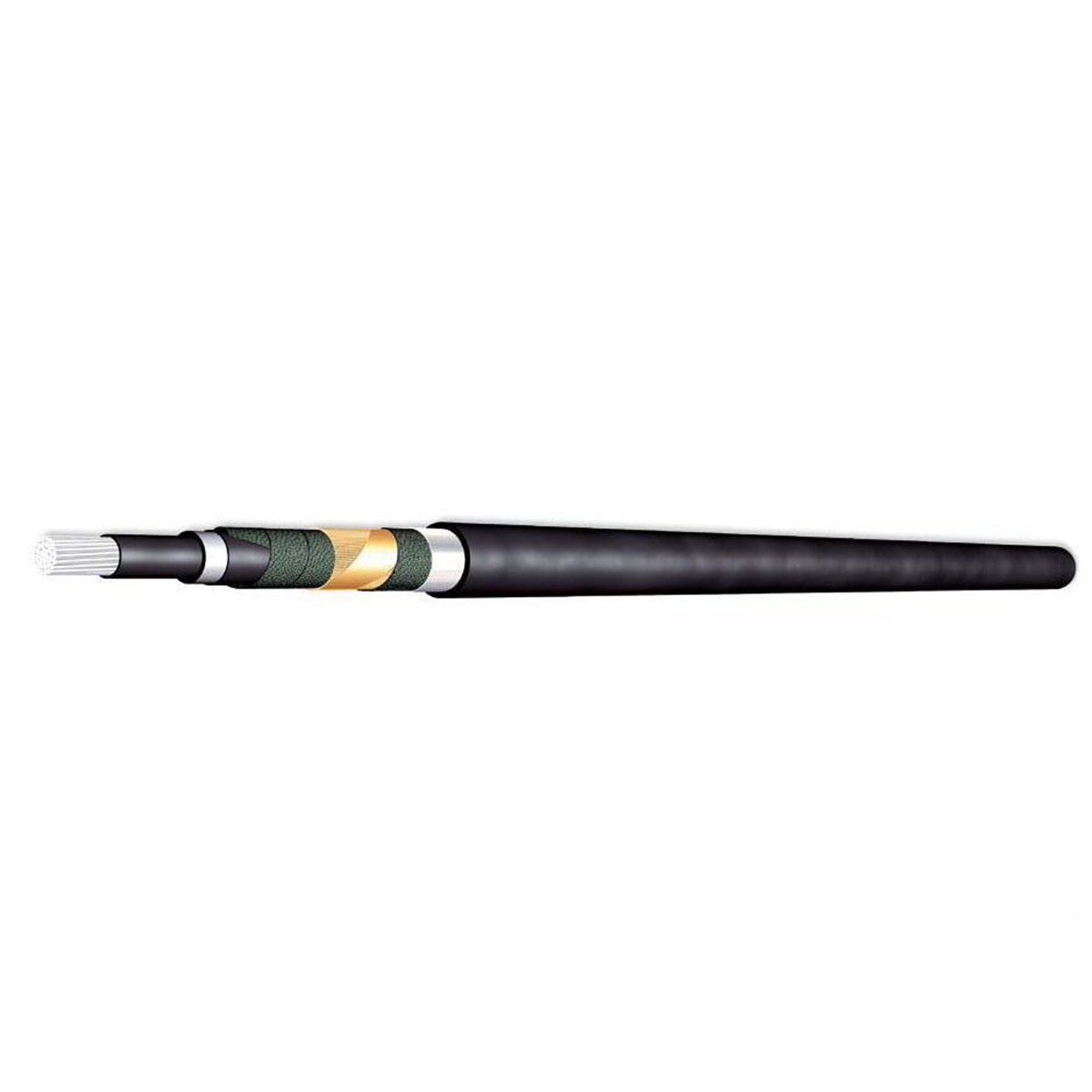

The product has one aluminum core (made of semi-rigid wires) surrounded by cross-linked and radially sealed polyethylene insulation, and a longitudinally sealed concentric copper screen with a sheath made of high-quality thermoplastic polyethylene. The outer diameter of the cable is 40.3 millimeters. The cross-section of the vein is 240 square millimeters. The product weighs approximately 3.3 kilograms.

The insulation wrap is made of a semi-conductive tape protecting the product against water and moisture. The middle, in turn, is filled with non-conductive tape.

The sheath consists of round copper wires, a helix and a copper tape.

The product performs its function at maximum load up to +90°C. The highest temperature of the working conductor with a five-second short-circuit is +250°C. The power cable should not be laid in frosts exceeding -20°C. The lowest possible temperature for solid insulation is -40°C. The minimum bending radius is 15d (where d is the diameter of the cable).

The power cable does not have an armor and a cover that does not spread fire in the event of a possible fire.

The class of the core was specified by the manufacturer as 2.

Insulation color - black.

The price is for one meter of the product.
