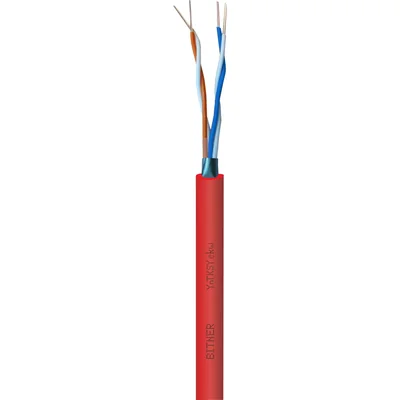

Fixed fire alarm cable YnTKSYekw 3x2x0.8 TN0103

Indeks lokalny:
KTK103BITN
Nr katalogowy:
TN0103
Kod EAN:
5902956139856
Producent: BITNER
Number of veins: 6
Inductance [mH/km]: 0.7
Color: Red
Cena:
8,19 zł
gross / mb.
(w tym VAT 23%)
Dostawa do 3h
Dostępne 769 mb.
Odbiór za 1h
Ilość mb.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Telecommunication station cable with PVC insulation and flame-retardant red PVC sheath, for use in fire protection systems. The cables are used primarily as transmission lines and power supply lines for line devices (sensors, line modules) in supervision lines of fire alarm systems, autonomous fire extinguishing and smoke exhaust control systems, they are used at the "0" moment of the fire (the moment of fire detection by the detection panel) . The cables are intended for signal transmission or triggering of auxiliary devices, which, in the event of fire detection, are activated by the fire alarm control panel (e.g. disconnection of comfort ventilation, bringing passenger lifts, switching off the power supply of the facility).

Dane techniczne

  • Number of veins
    6
  • Color
    Red
  • Minimum bending radius [mm]
    10 x diameter
  • Core cross-section [mm²]
    0.8
  • Insulation resistance [MΩ]
    >200
  • Operating temperature range [°C]
    -0.571428571428571
  • Insulation material
    PVC
  • Inductance [mH/km]
    0.7
  • Vein material
    Copper
  • Voltage test [V]
    1500DC, 2250AC
  • Core
    Wire
  • Diameter [mm]
    7.1
  • Accurate color
    Red
  • PKWIU
    27.32.13

Dane producenta

  • Producent
    BITNER Zakłady Kablowe Sp. z o.o.
  • Adres
    30-009 Kraków Friedleina 3/3 Polska
