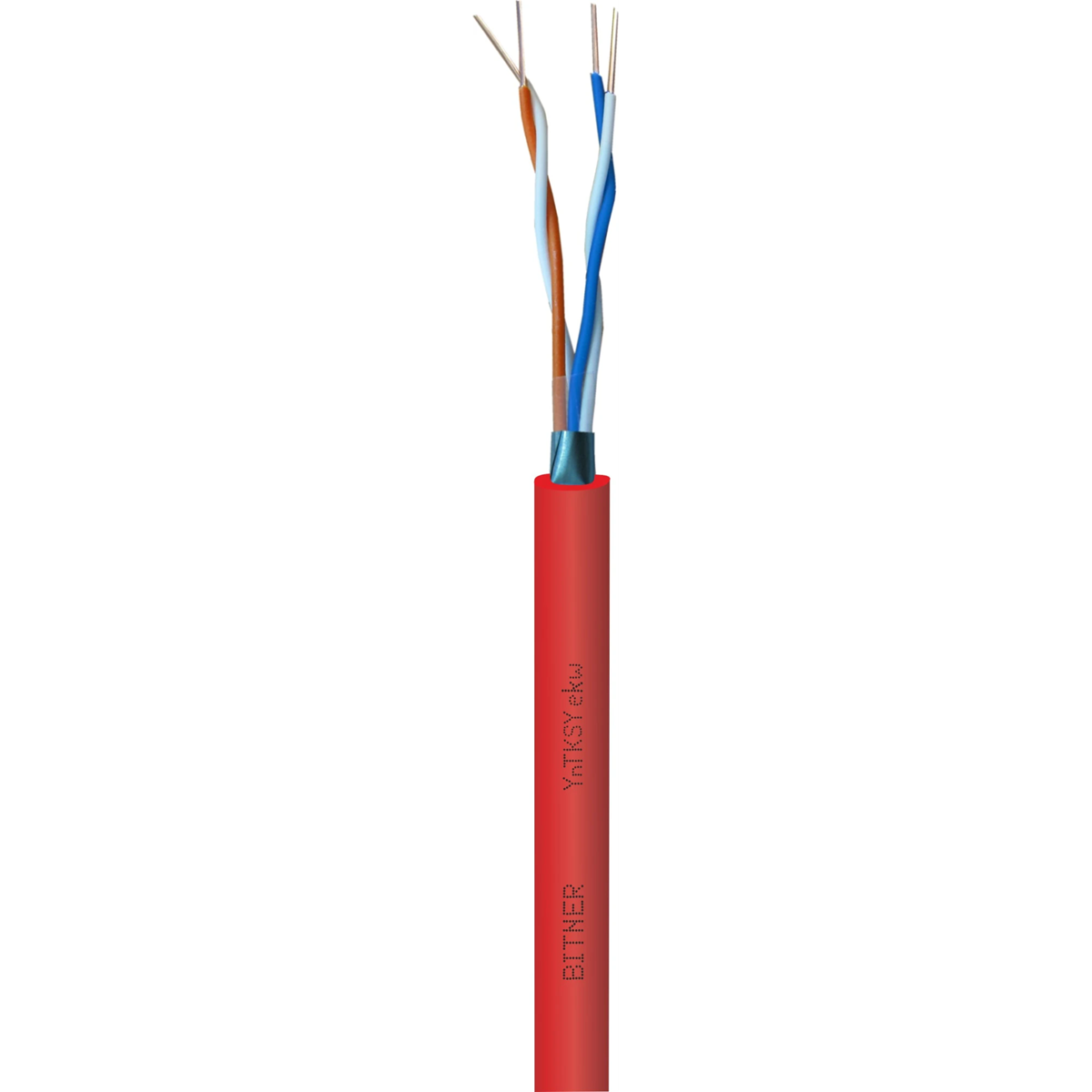

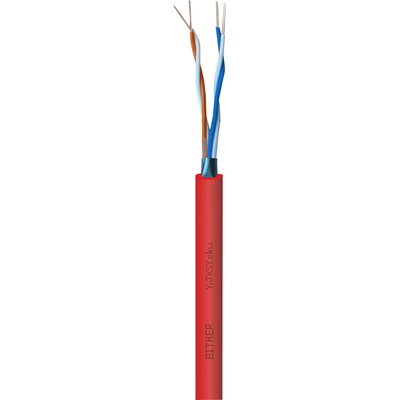

Fixed fire alarm cable YnTKSYekw 1x2x0.8 TN0100

Indice locale:
KTK090BITN
Numero di catalogo:
TN0100
Codice EAN:
5902956139825
Produttore: BITNER
Number of veins: 2
Inductance [mH/km]: 0.7
Color: Red
Prezzo:
0,75 €
gross / metro
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 9579 metro
Raccolta in 1h
Quantità metro
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Telecommunication station cable with PVC insulation and flame-retardant red PVC sheath, for use in fire protection systems. The cables are used primarily as transmission lines and power supply lines for line devices (sensors, line modules) in supervision lines of fire alarm systems, autonomous fire extinguishing and smoke exhaust control systems, they are used at the "0" moment of the fire (the moment of fire detection by the detection panel) . The cables are intended for signal transmission or triggering of auxiliary devices, which, in the event of fire detection, are activated by the fire alarm control panel (e.g. disconnection of comfort ventilation, bringing passenger lifts, switching off the power supply of the facility).

Dati tecnici

  • Number of veins
    2
  • Color
    Red
  • Minimum bending radius [mm]
    10 x diameter
  • Core cross-section [mm²]
    0.8
  • Insulation resistance [MΩ]
    >200
  • Operating temperature range [°C]
    -0.571428571428571
  • Insulation material
    PVC
  • Inductance [mH/km]
    0.7
  • Vein material
    Copper
  • Voltage test [V]
    1500DC, 2250AC
  • Core
    Wire
  • Diameter [mm]
    4.2
  • Accurate color
    Red
  • PKWIU
    27.32.13

Dettagli del produttore

  • Produttore
    BITNER Zakłady Kablowe Sp. z o.o.
  • Indirizzo
    30-009 Kraków Friedleina 3/3 Polska
