Fireproof power cable without protective conductor HDGs 2x1.5mm2 B52001

Name: Fireproof power cable without protective conductor HDGs 2x1.5mm2
Brand: BITNER
SKU: KTK042BITN
Price: 1.75 PLN
Availability: InStock

local index:

KTK042BITN

Catalog No:

B52001

EAN code:

5902956320599

Fireproof power cable without protective conductor HDGs 2x1.5mm2

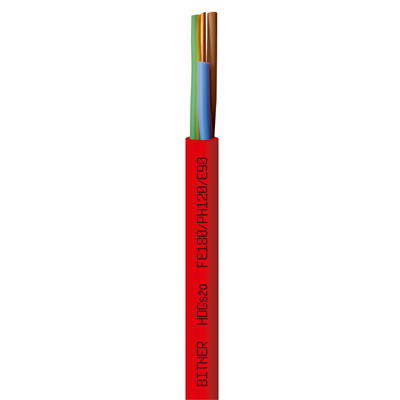

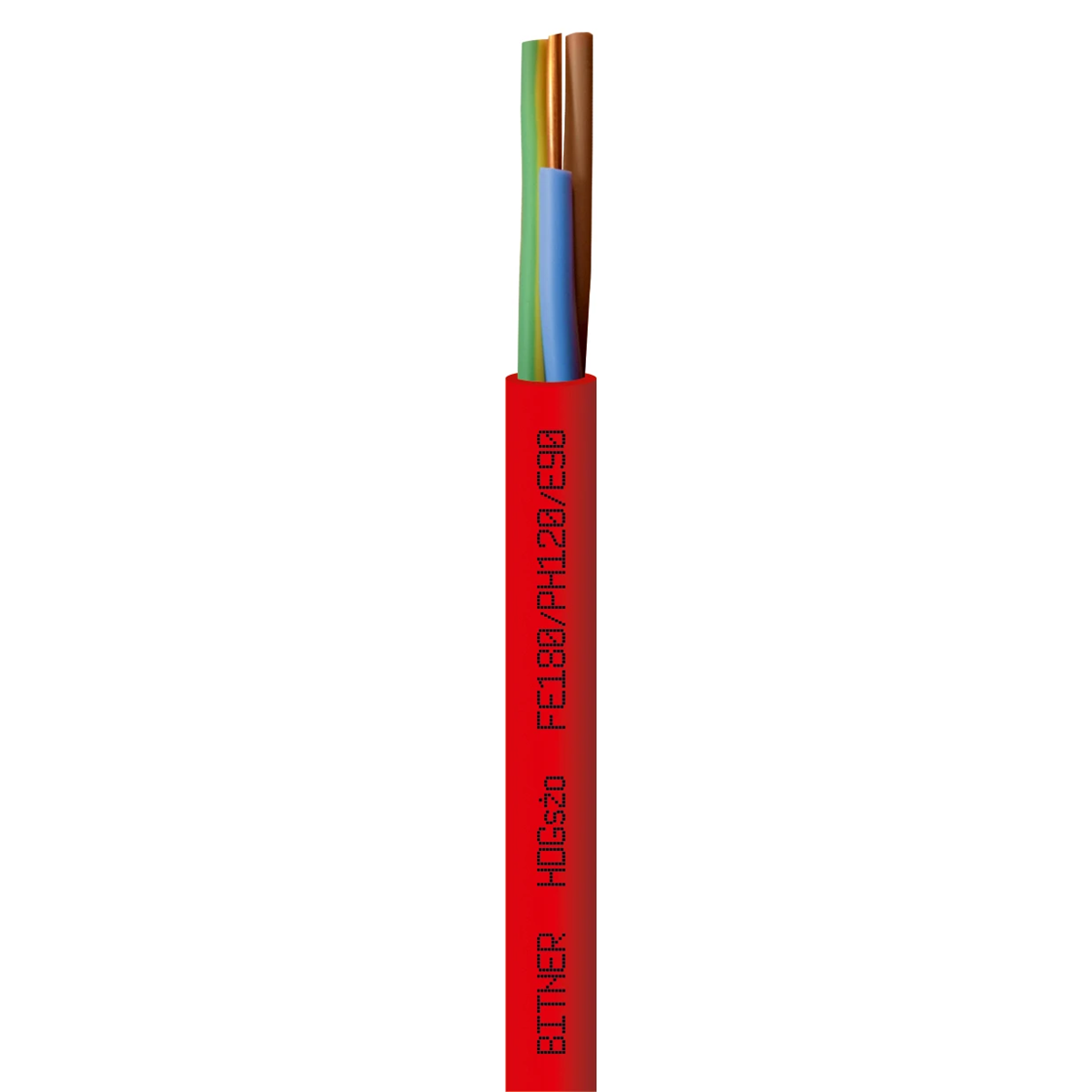

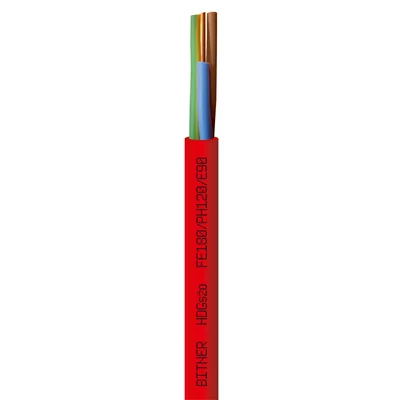

Click on the photo to enlarge

Manufacturer: BITNER

Permissible core temperature during short-circuit [°C]: 250

Number of veins: 2

Color: Blue | Brown

See full description

Price:

1,75 €

gross / m.

(including VAT 23%)

Accessible 2240 m.

Quantity m.

(multiplicity:

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details

Product description

Fireproof power cable without HDGs protective conductor, halogen-free, from the manufacturer BITNER. Product part number is B52001.

2-wire: blue, brown.
Operating temperature:
- During operation : -30°C to 80°C.
- Minimum laying temperature: -10°C.
Permissible core temperature: 90°C.
Test voltage:
- AC voltage: 3000V.
- DC voltage: 7200V.
Insulation resistance (min.): 100MΩxkm.
Minimum bending radius: 10xØ.
Conductors: solid copper class 1 (according to PN-EN 60228, EN 60228, IEC 60228).
Flame retardant.
No corrosive gases.
Low smoke emission.
Increased insulation durability (FE180).
Cable function maintenance (PH120).
Low fire load (heat of combustion).
