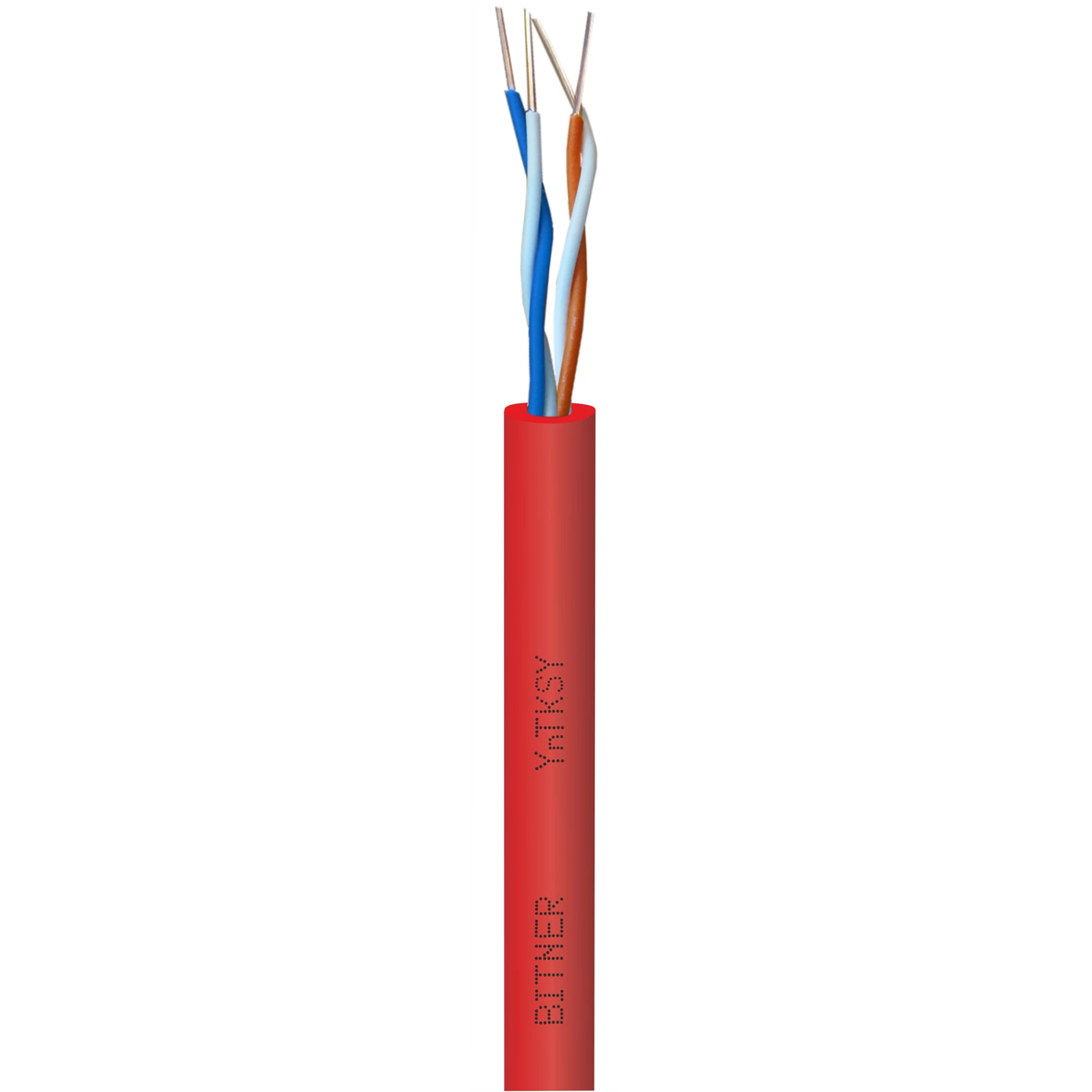

Fire signaling cable for fixed installation YnTKSY 2x2x1 TN0008

Indice locale:
KTK008BITN
Numero di catalogo:
TN0008
Codice EAN:
5902956139344
Produttore: BITNER
Inductance [mH/km]: 0.7
Color: Red
Minimum bending radius [mm]: 10 x diameter
Prodotto di grandi dimensioni
Prezzo:
8,08 zł
gross / metro
(inclusa IVA 23%)
Consegna in 3 ore
Prodotto su richiesta individuale
Raccolta in 1h
Quantità metro
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Telecommunication station cable with PVC insulation and flame-retardant red PVC sheath, for use in fire protection systems. The cables are used primarily as transmission lines and power supply lines for line devices (sensors, line modules) in supervision lines of fire alarm systems, autonomous fire extinguishing and smoke exhaust control systems, they are used at the "0" moment of the fire (the moment of fire detection by the detection panel) . The cables are intended for signal transmission or triggering of auxiliary devices, which, in the event of fire detection, are activated by the fire alarm control panel (e.g. disconnection of comfort ventilation, bringing passenger lifts, switching off the power supply of the facility).

Dati tecnici

  • Inductance [mH/km]
    0.7
  • Minimum bending radius [mm]
    10 x diameter
  • Insulation resistance [MΩ]
    >200
  • Operating temperature range [°C]
    -0.571428571428571
  • PKWIU
    27.32.13
  • Color
    Red
  • Voltage test [V]
    1500DC, 2250AC
  • Diameter [mm]
    5.8
  • Accurate color
    Red

Dettagli del produttore

  • Produttore
    BITNER Zakłady Kablowe Sp. z o.o.
  • Indirizzo
    30-009 Kraków Friedleina 3/3 Polska
