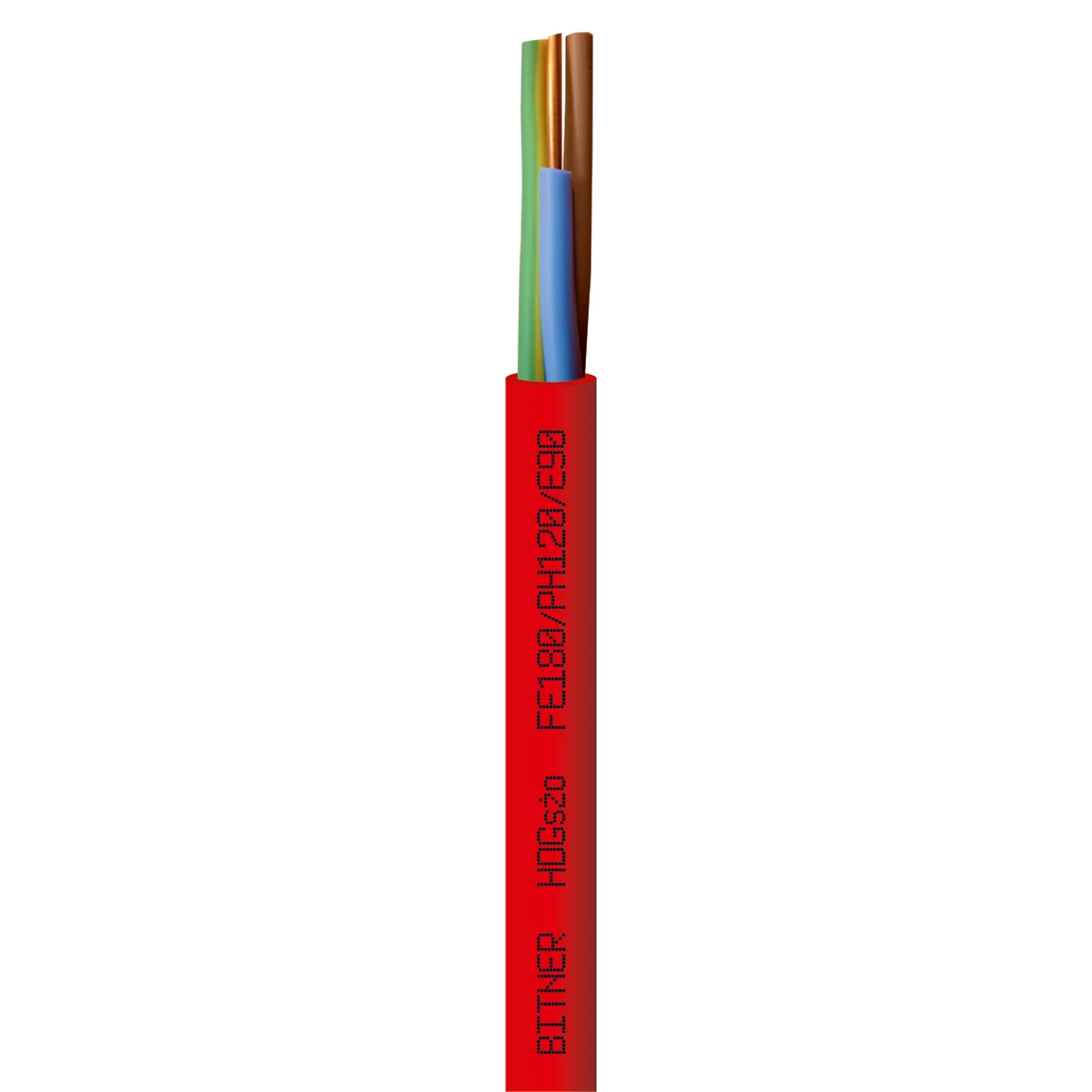

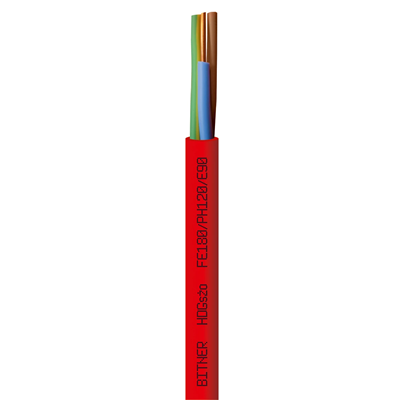

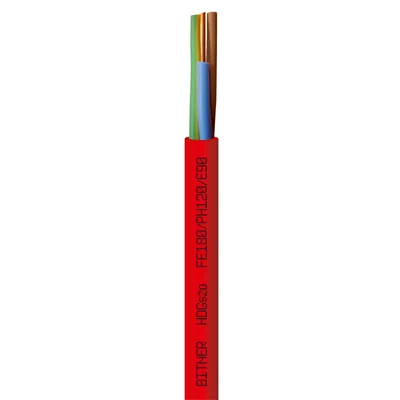

Fire-resistant power cable with HDGs 5x1.5 protective conductor B52063

Fireproof power cable with protective conductor HDGsżo, halogen-free, from the manufacturer BITNER. The product catalog number is B52063.

• 5-wire: yellow-green, blue, brown, black, gray.
• Operating temperature :
  • Operating: -30°C to 80°C.
  • Minimum laying temperature: -10°C.
• Permissible working core temperature: 90°C.
• Voltage test:
  • Alternating voltage: 3000V.
  • Direct voltage: 7200V.
  • Insulation resistance (min.): 100MΩxkm.
  • Minimum bending radius: 10xØ.
  • Conductors: solid copper class 1 ( according to PN-EN 60228, EN 60228, IEC 60228).
  • Does not spread flame.
  • No corrosive gases.
  • Low smoke emission.< /li>
  • Increased durability of insulation (FE180).
  • Maintenance of cable function (PH120).
  • Low fire load (heat of combustion).
