Fire-resistant power cable with HDGs 3x1.5 protective conductor B52051

Name: Fire-resistant power cable with HDGs 3x1.5 protective conductor
Brand: BITNER
SKU: KTK041BITN
Price: 2.47 PLN
Availability: InStock

local index:

KTK041BITN

Catalog No:

B52051

EAN code:

5902956320568

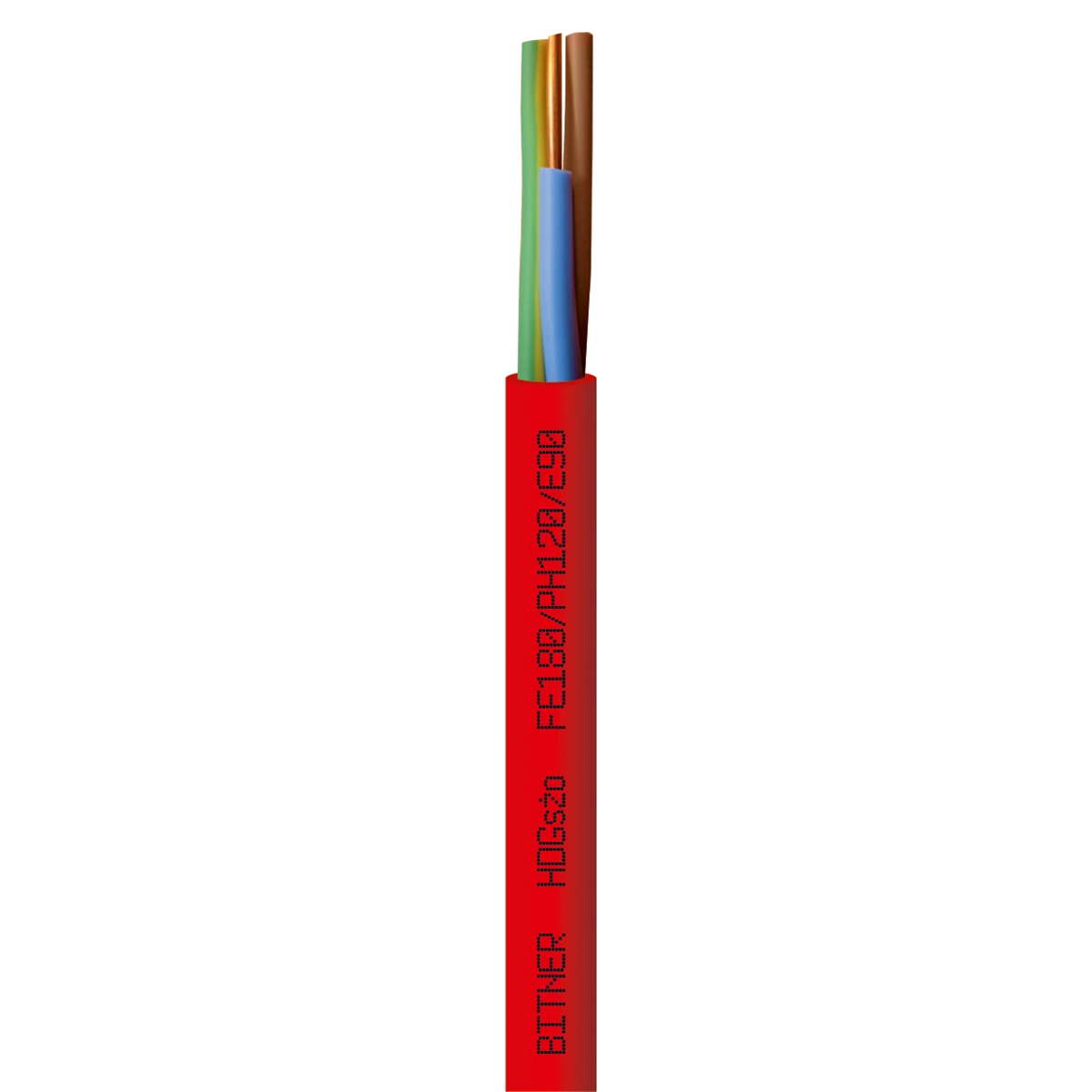

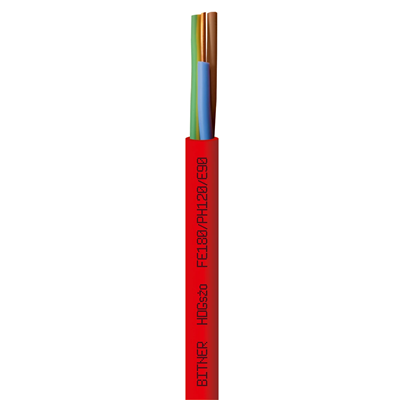

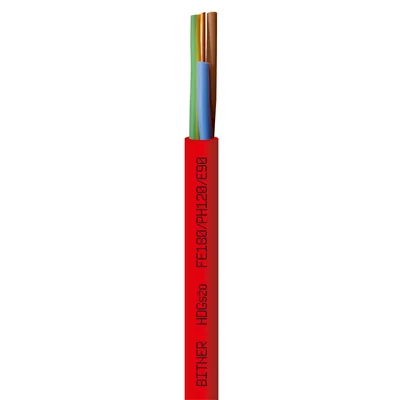

Fire-resistant power cable with HDGs 3x1.5 protective conductor

Click on the photo to enlarge

Manufacturer: BITNER

Permissible core temperature during short-circuit [°C]: 250

Number of veins: 3

Color: Yellow | Green | Blue | Brown

See full description

Price:

2,47 €

gross / m.

(including VAT 23%)

Accessible 2548 m.

Quantity m.

(multiplicity:

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details

Product description

Fireproof power cable with protective conductor HDGsżo, halogen-free, from the manufacturer BITNER. Product part number is B52051.

3-wire: yellow-green, blue, brown.
Operating temperature:
- Operating: -30°C to 80°C.
- Minimum laying temperature: -10°C.
Permissible core temperature operating temperature: 90°C.
Voltage test:
- AC voltage: 3000V.
- DC voltage: 7200V.
< /li>
Insulation resistance (min.): 100MΩxkm.
Minimum bending radius: 10xØ.
Conductors: solid copper, class 1 (according to PN- EN 60228, EN 60228, IEC 60228).
Flame retardant.
No corrosive gases.
Low smoke emission.
Increased durability of insulation (FE180).
Maintenance of cable function (PH120).
Low fire load (heat of combustion).
