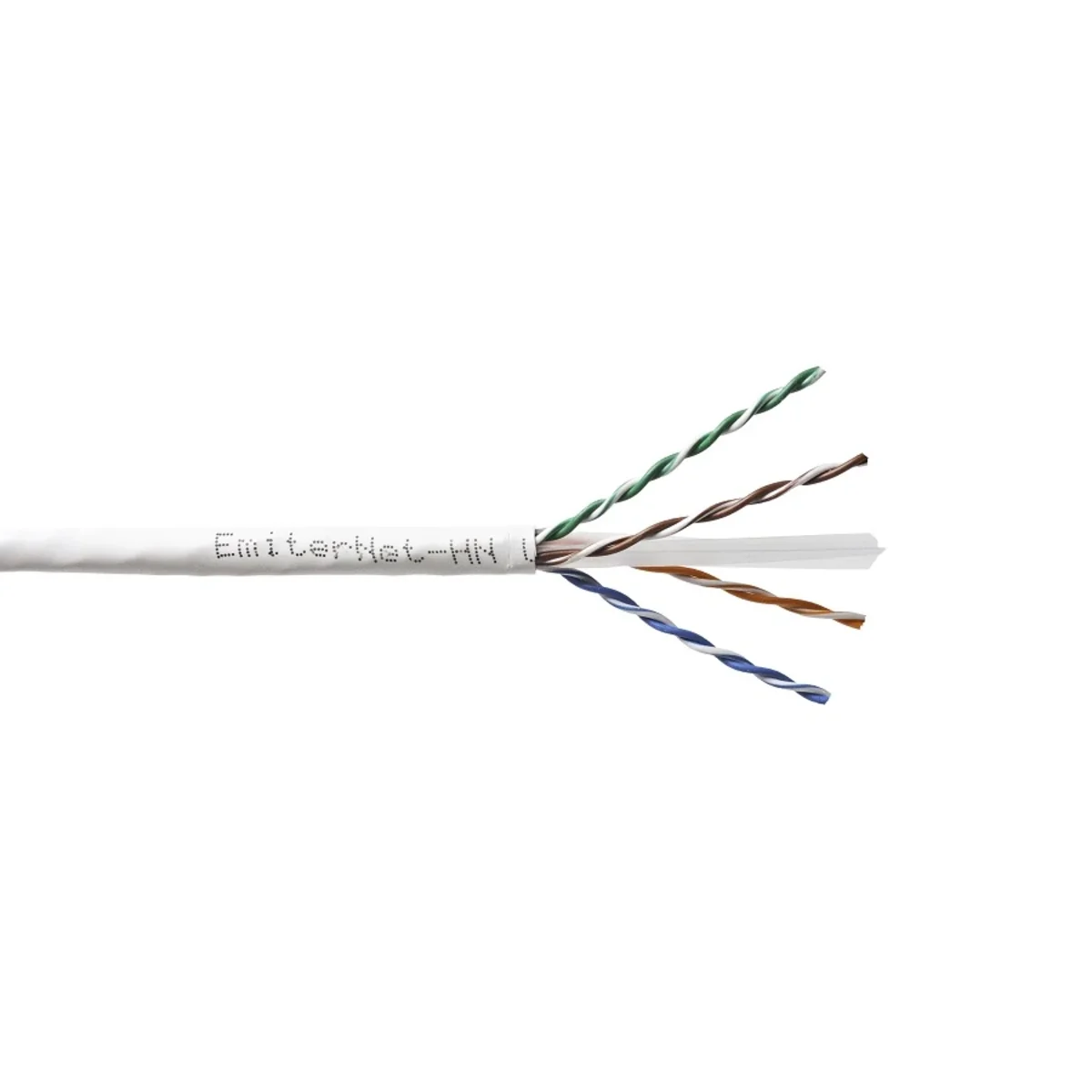

Name: Emitter Net UTP (U/UTP) cable cat. 6 450 MHz, wire 4 x 2 x 23 AWG, LS0H
Brand: EMITER
SKU: KRD018EMSO
Price: 2.92 PLN
Availability: BackOrder

Další technické údaje

Conductor surface

Bare
Conductor category

Class 1 = solid
Number of stranding elements

4
Material core insulation

Other
Core identification

Colour
Stranding

Bundle
Longitudinal water blocking cable

No
Protective sheath

Other
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Dca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

d2
Halogen free according to EN 60754-1/2

Yes
Flame retardant

According to IEC/EN 60332-1-2
Low smoke according to EN IEC 61034-2

No
Olejoodporny zgodnie z IEC 60811-404

No
Min. permitted bending radius, moving application with forced guidance

65 mm
Min. permitted bending radius, stationary application/permanent installation

35 mm
Permitted cable outer temperature after assembling without vibration

-20 ... 70 °C
NVP value

69 %
UV resistant

No

Diameter conductor

0.6 mm
Number of cores

8
Stranding element

Pairs
Specification core insulation

Polyethylene (PE)
Screen over stranding element

None
Screen over stranding

None
Radial water blocking cable

No
Material outer sheath

Other
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Smoke production

s2
Reaction-to-fire according to EN 13501-6: Acidity

a2
Halogen free according to EN IEC 60754-2

No
Low smoke (according to EN 61034-2)

Yes
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

6.5 mm
Min. permitted bending radius, moving application/free movement

65 mm
Permitted cable outer temperature during assembling/handling

0 ... 50 °C
Category

6
Suitable for underground installation

No

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

0366
Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

004/5020671/9-1
Oznaczenie produktu

Kabel Emiter Net UTP (U/UTP) kat. 6 450 MHz, drut 4 x 2 x 23 AWG,LS0H

Reakcja na ogień:

Dca-s2-d2-a2
Zharmonizowana specyfikacja techniczna (norma):

EN13501-6, EN60332-1-2, EN50399, EN61034-2, EN60754-2
Zastosowanie:

Zastosowanie wewnątrz budynku

Emitter Net UTP (U/UTP) cable cat. 6 450 MHz, wire 4 x 2 x 23 AWG, LS0H K/EMITERNET-UTP6LSOH.
