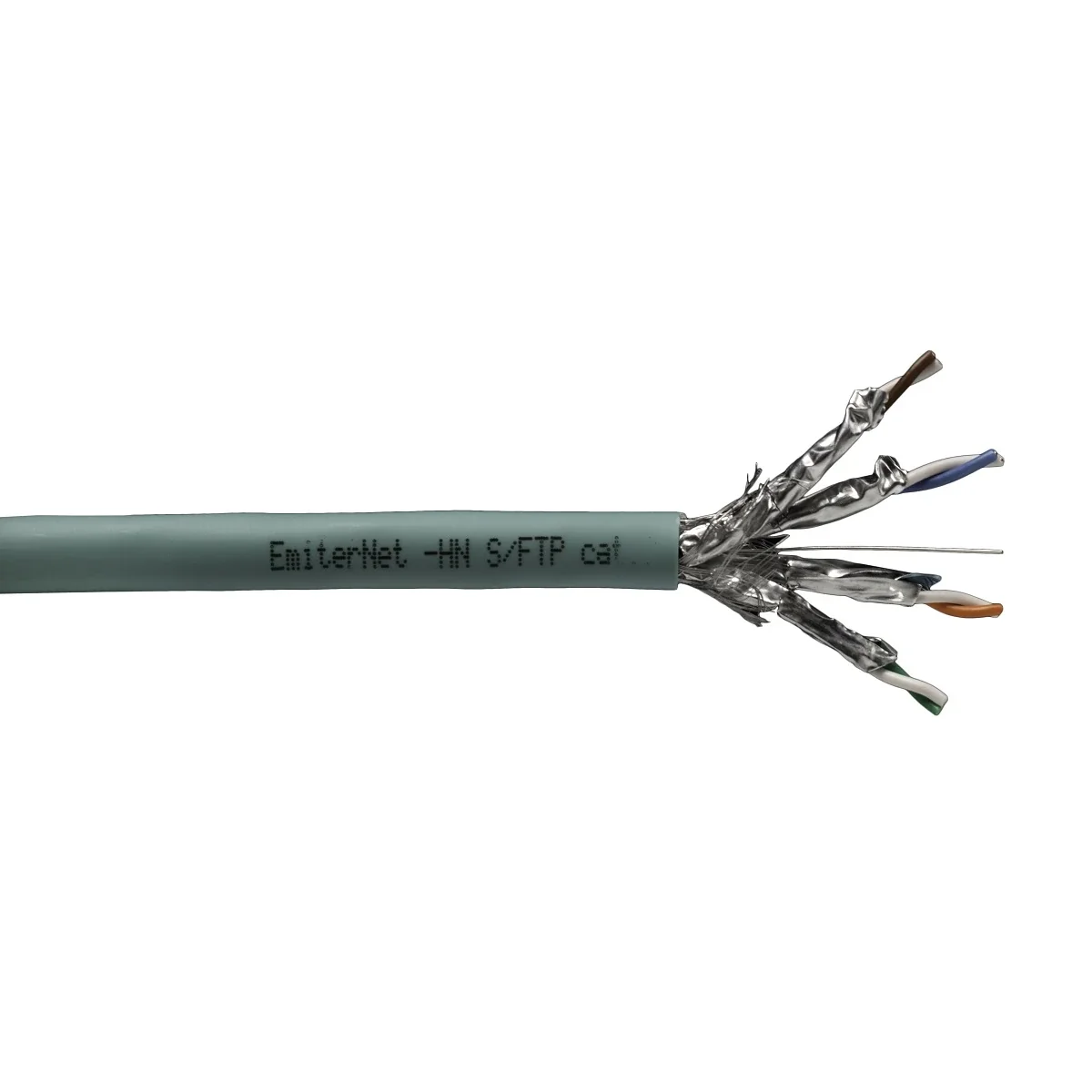

Name: Emitter Net S/FTP cable cat 7 1000MHz B2ca LSZH-FR, wire 4 x 2 x 23AWG
Brand: EMITER
SKU: KRD004EMSO
Price: 4.82 PLN
Availability: BackOrder

Autres données techniques

Conductor surface

Bare
Conductor category

Class 1 = solid
Number of stranding elements

4
Material core insulation

Other
Core identification

Colour
Stranding

Bundle
Longitudinal water blocking cable

No
Protective sheath

Other
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Smoke production

s1a
Reaction-to-fire according to EN 13501-6: Acidity

a1
Halogen free according to EN IEC 60754-2

Yes
Low smoke (according to EN 61034-2)

Yes
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

8 mm
Min. permitted bending radius, moving application/free movement

160 mm
Permitted cable outer temperature during assembling/handling

0 ... 50 °C
Category

7
Suitable for underground installation

No

Diameter conductor

0.57 mm
Number of cores

8
Stranding element

Pairs
Specification core insulation

Polyethylene (PE)
Screen over stranding element

Foil
Screen over stranding

Braiding
Radial water blocking cable

No
Material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

B2ca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

d2
Halogen free according to EN 60754-1/2

Yes
Flame retardant

According to IEC/EN 60332-1-2
Low smoke according to EN IEC 61034-2

No
Olejoodporny zgodnie z IEC 60811-404

No
Min. permitted bending radius, moving application with forced guidance

160 mm
Min. permitted bending radius, stationary application/permanent installation

80 mm
Permitted cable outer temperature after assembling without vibration

-20 ... 60 °C
NVP value

74 %
UV resistant

No

Emitter Net S/FTP cable cat 7 1000MHz B2ca LSZH-FR, wire 4 x 2 x 23AWG K/EMITERNET-SFTP7LS0HB2CA.
