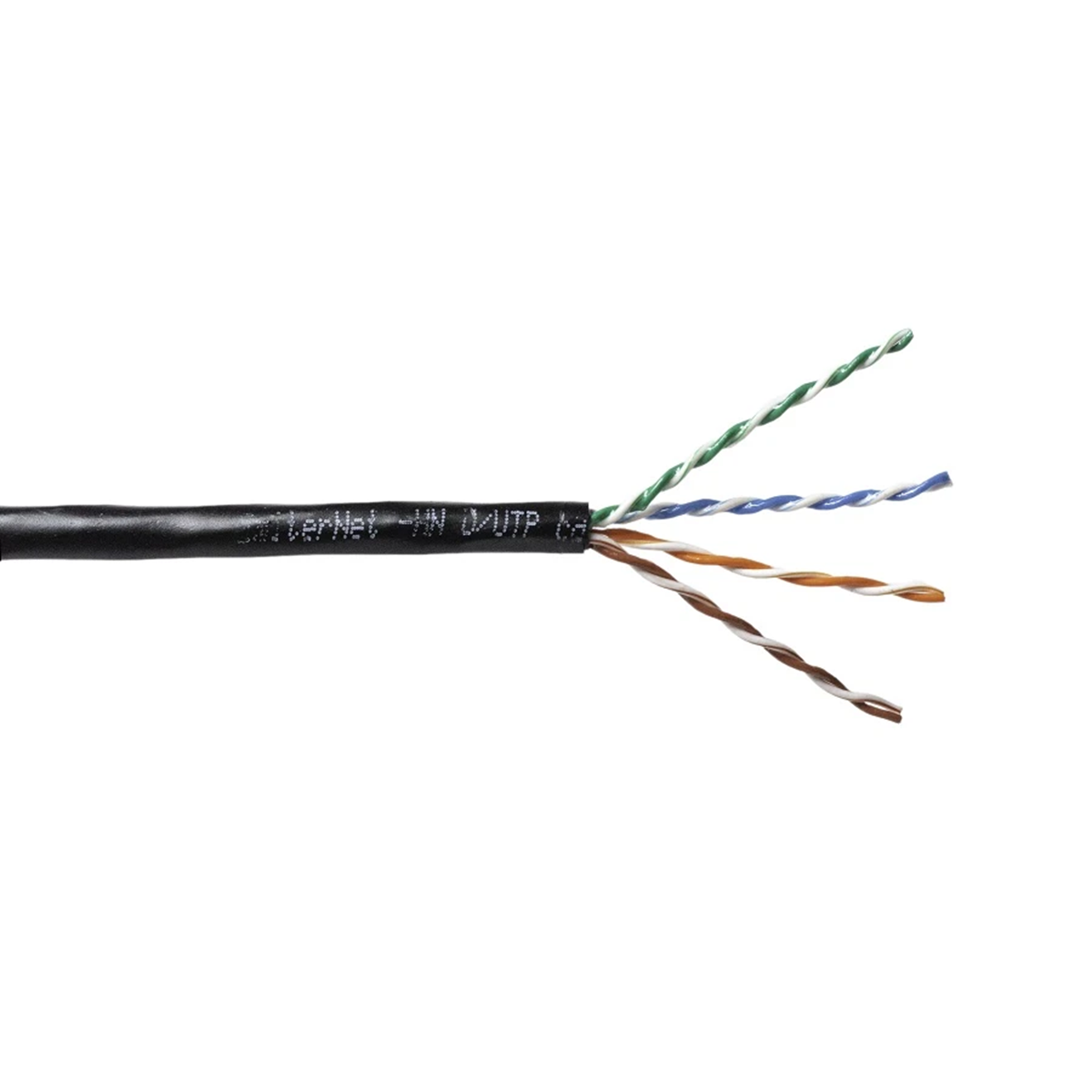

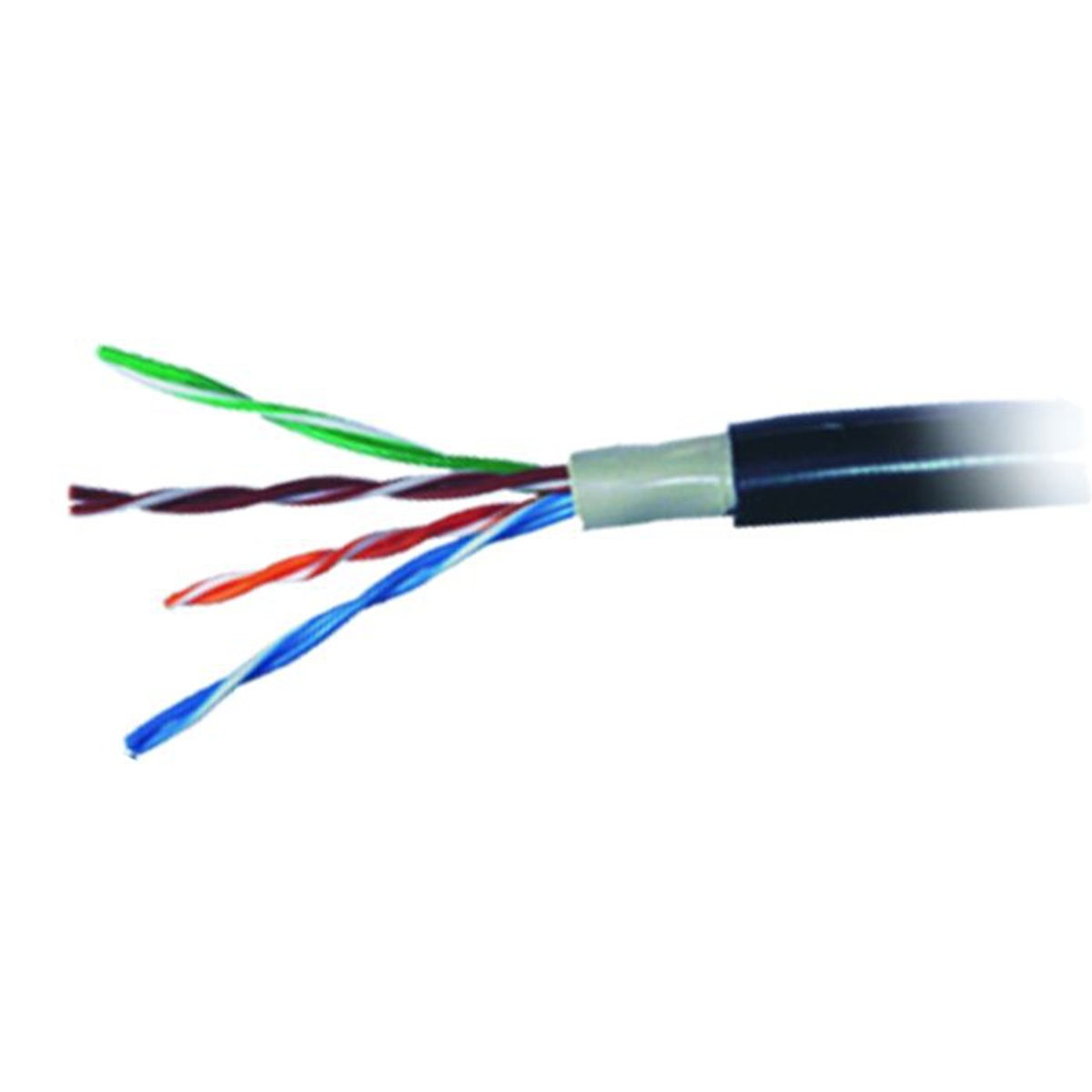

EmiterNet external cable gelled PE UTP (U/UTP) cat.5e K/EMITERNET-UTP5EOUT-GEL.

Four-pair category 5e unshielded cable is designed for ICT data transmission systems. The construction of the cable is based on 4 pairs of wires twisted together in such a way as to reduce inter-pair crosstalk. Thanks to this, you can achieve - using this cable - a connection in the GigabitEthernet standard. The outer sheath of the cable is made of weather-resistant PE polyethylene. The inner core is filled with a hydrophobic gel ensuring the cable's resistance to longitudinal water penetration. Thanks to the combination of polyethylene insulation and gel filling, the cable can be laid directly in the ground. The cable has 4 pairs of colored wires. The manufacturer's mark, compliance with standards and a length marker are printed on the cable (EmiterNet -HN UTP cat.5e PE+GEL 24AWG x 4PR outdoor, Verified to EN/PL 50173 ISO/IEC 11801 EIA/TIA 568-C.2 MM/YY xxxm).

• Cable outer diameter  5.2mm +/- 0.5mm
• Single wire diameter  0.5mm; 24 AWG
• Cable outer insulation  PE
• External insulation color  Black
• Core insulation  PE
• Resort  hydrophobic gel
• Wave impedance  100Ω +/- 15Ω for 1 - 100 MHz
• Resistance of any pair for voltage standing  95Ω/km
• NVP  69.00%
• Insulation resistance of any core (min)  150MΩ/km
• Rms capacitance of any pair (f=1kHz)  330pF/100m
• Bending radius when stacking  50mm
• Bending radius in operation  25mm
• Operating Temperatures  -40ºC - +70ºC
• Temperature during laying  0ºC - +50 ºC
• Weight   40 kg/km
• Drum packaging  305m
