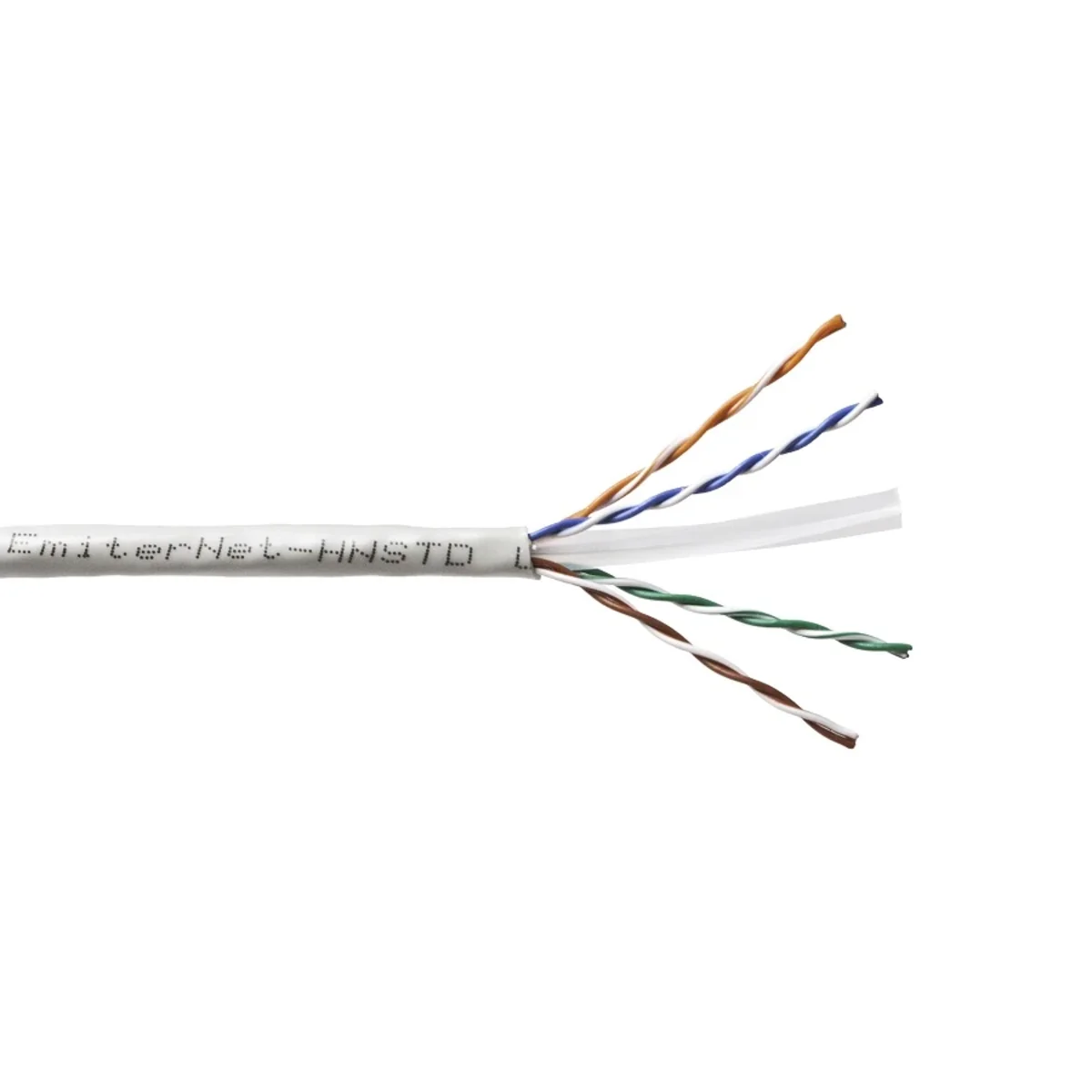

Name: Emiter Net UTP (U/UTP) Cable Category 6 450 MHz, Solid, Standard, PVC, Gray
Brand: EMITER
SKU: KRD002EMSO
Price: 2.84 PLN
Availability: BackOrder

Other technical data

Conductor surface

Bare
Conductor category

Class 1 = solid
Number of stranding elements

4
Material core insulation

Other
Core identification

Colour
Stranding

Bundle
Longitudinal water blocking cable

No
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

Grey
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Halogen free according to EN IEC 60754-2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

6 mm
Min. permitted bending radius, moving application/free movement

60 mm
Permitted cable outer temperature during assembling/handling

0 ... 50 °C
Category

6
Suitable for underground installation

No

Diameter conductor

0.57 mm
Number of cores

8
Stranding element

Pairs
Specification core insulation

Polyethylene (PE)
Screen over stranding element

None
Screen over stranding

None
Radial water blocking cable

No
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Flame retardant

According to IEC/EN 60332-1-2
Low smoke according to EN IEC 61034-2

No
Olejoodporny zgodnie z IEC 60811-404

No
Min. permitted bending radius, moving application with forced guidance

60 mm
Min. permitted bending radius, stationary application/permanent installation

30 mm
Permitted cable outer temperature after assembling without vibration

-20 ... 60 °C
NVP value

69 %
UV resistant

No

Emiter Net UTP (U/UTP) Cable Category 6 450 MHz, Solid, Standard, PVC, Gray K/EMITERNET-UTP6PVC-STD.
