Cat 7 SFTP cable K/EMITERNET-SFTP7LS0H.
local index:
KRD030EMSO
Catalog No:
K/EMITERNET-SFTP7LS0H.
EAN code:
5906764105904
Large-size product
Price:
1,00 €
gross / m.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Print
Ask about the product
Product description

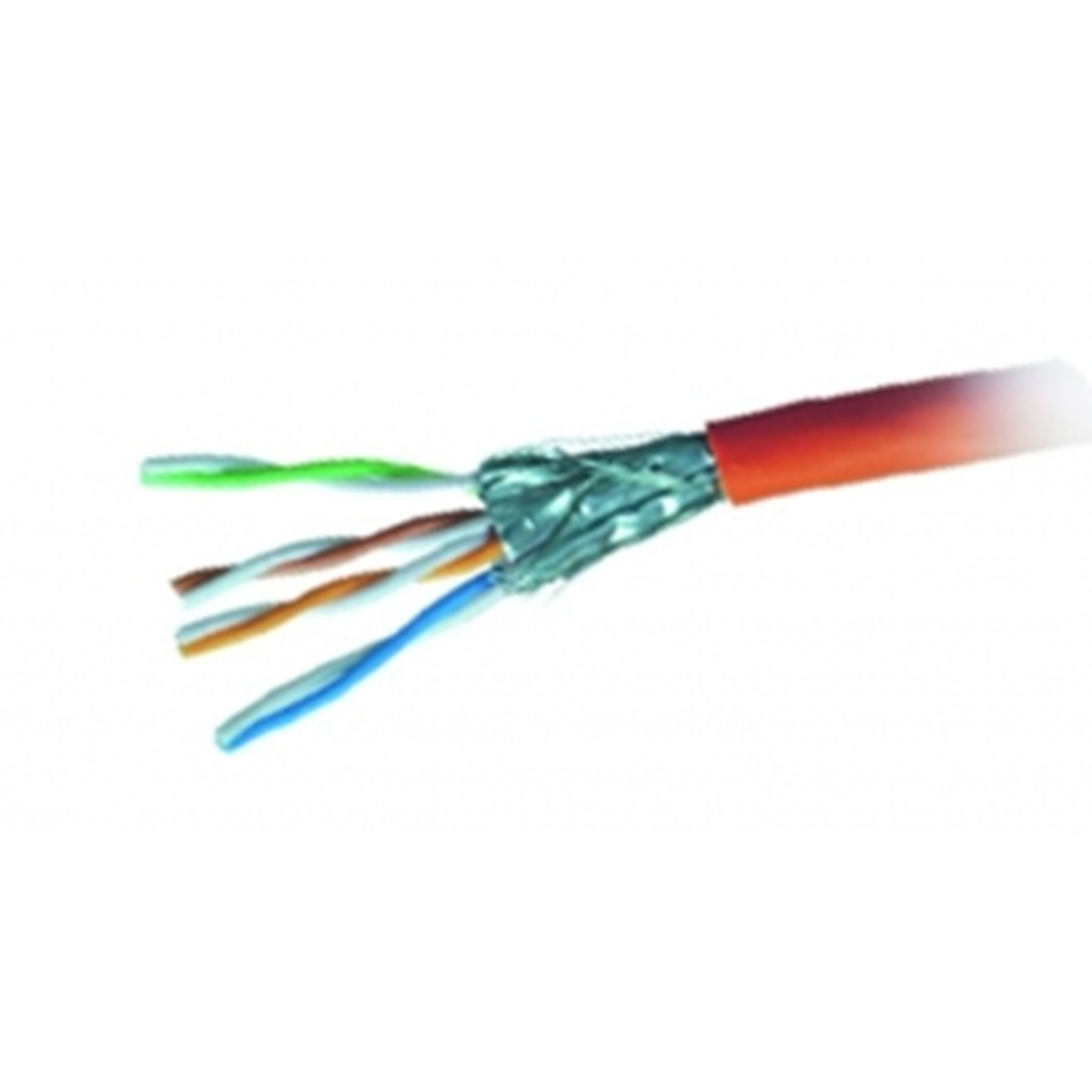

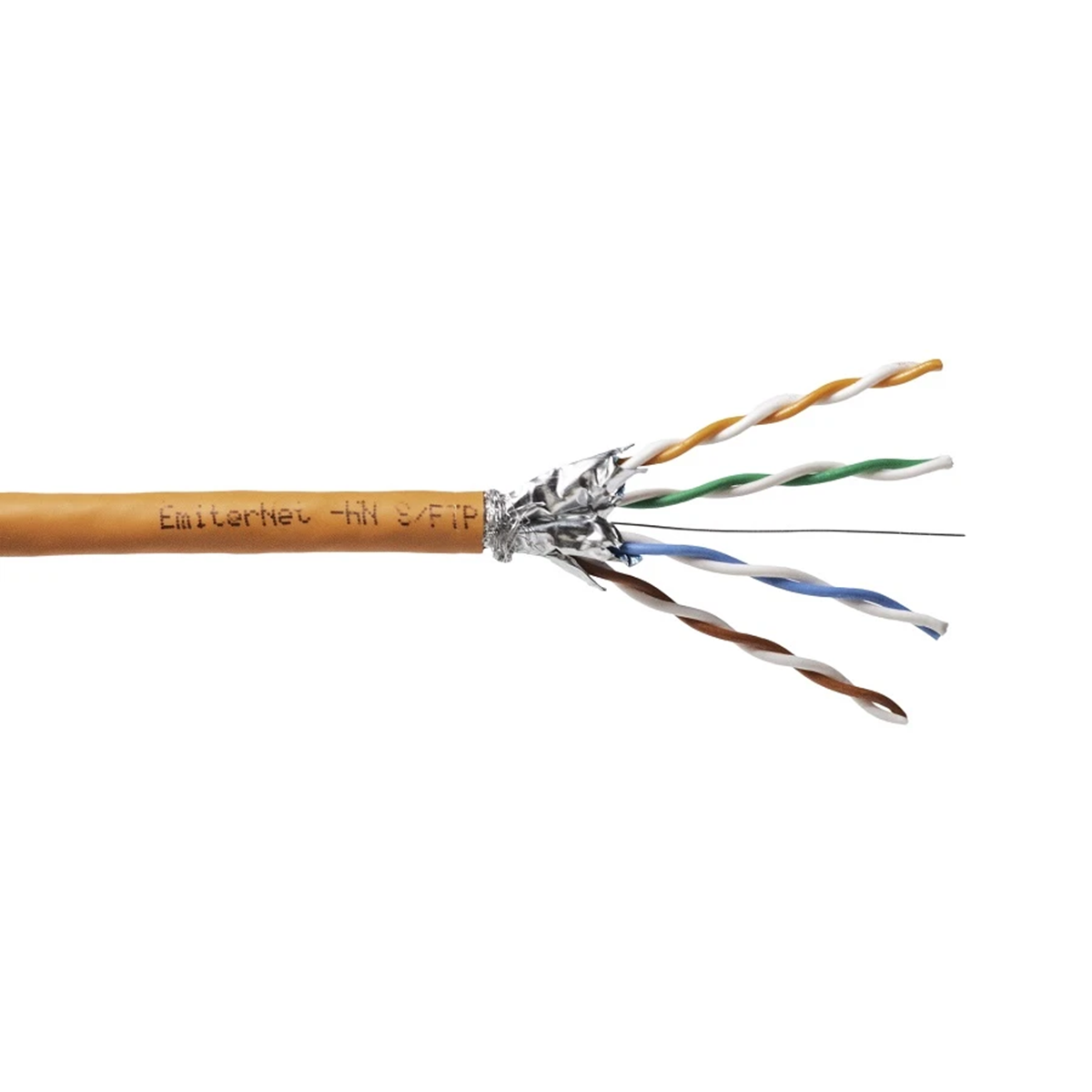

Net emitter SFTP cat. 7 wire 4x2x23 AWG LS0H
Technical data
-
ShieldedYes
-
Category7
-
Vein materialCopper
-
Accurate colorGray
-
Number of veins4x2
-
ColorGray
-
CoreWire
Other technical data
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Number of stranding elements4
-
Material core insulationOther
-
Core identificationColour
-
StrandingBundle
-
Longitudinal water blocking cableNo
-
Protective sheathOther
-
Specification material outer sheathOther
-
Reaction-to-fire according to EN 13501-6: ClassDca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd2
-
Halogen free according to EN 60754-1/2Yes
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low smoke according to EN IEC 61034-2No
-
Olejoodporny zgodnie z IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance150 mm
-
Min. permitted bending radius, stationary application/permanent installation75 mm
-
Permitted cable outer temperature after assembling without vibration-20 ... 60 °C
-
NVP value74 %
-
UV resistantNo
-
Diameter conductor0.6 mm
-
Number of cores8
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Screen over stranding elementFoil
-
Screen over strandingBraiding
-
Radial water blocking cableNo
-
Material outer sheathOther
-
Colour outer sheathOrange
-
Reaction-to-fire according to EN 13501-6: Smoke productions1a
-
Reaction-to-fire according to EN 13501-6: Aciditya1
-
Halogen free according to EN IEC 60754-2No
-
Low smoke (according to EN 61034-2)Yes
-
Oil resistant according to EN IEC 60811-404No
-
Outer diameter approx.7.5 mm
-
Min. permitted bending radius, moving application/free movement150 mm
-
Permitted cable outer temperature during assembling/handling0 ... 50 °C
-
Category7
-
Suitable for underground installationNo
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0366
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)003/5020671/6-1
-
Oznaczenie produktuKabel Emiter Net SFTP (S/FTP) kat 7 1000MHz, drut 4 x2 x 23AWG, LS0H
-
Reakcja na ogień:Dca-s1a-d2-a1
-
Zharmonizowana specyfikacja techniczna (norma):EN13501-6, EN30332-1-2, EN50399, EN61034-2, EN60754-2
-
Zastosowanie:Zastosowanie wewnątrz budynku
Manufacturer details
-
ManufacturerEmiter Sp. z o.o. Katowice
-
Address40-241 Katowice Porcelanowa 27
-
Tax identification number6442926039
