Cat. 5e UTP cable K/EMITERNET-UTP5ELINKA.
Lokaler Index:
KRD021EMSO
Katalognummer:
K/EMITERNET-UTP5ELINKA.
EAN-Code:
5906764102071
Großformatiges Produkt
Preis:
0,52 €
gross / lfm.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge lfm.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

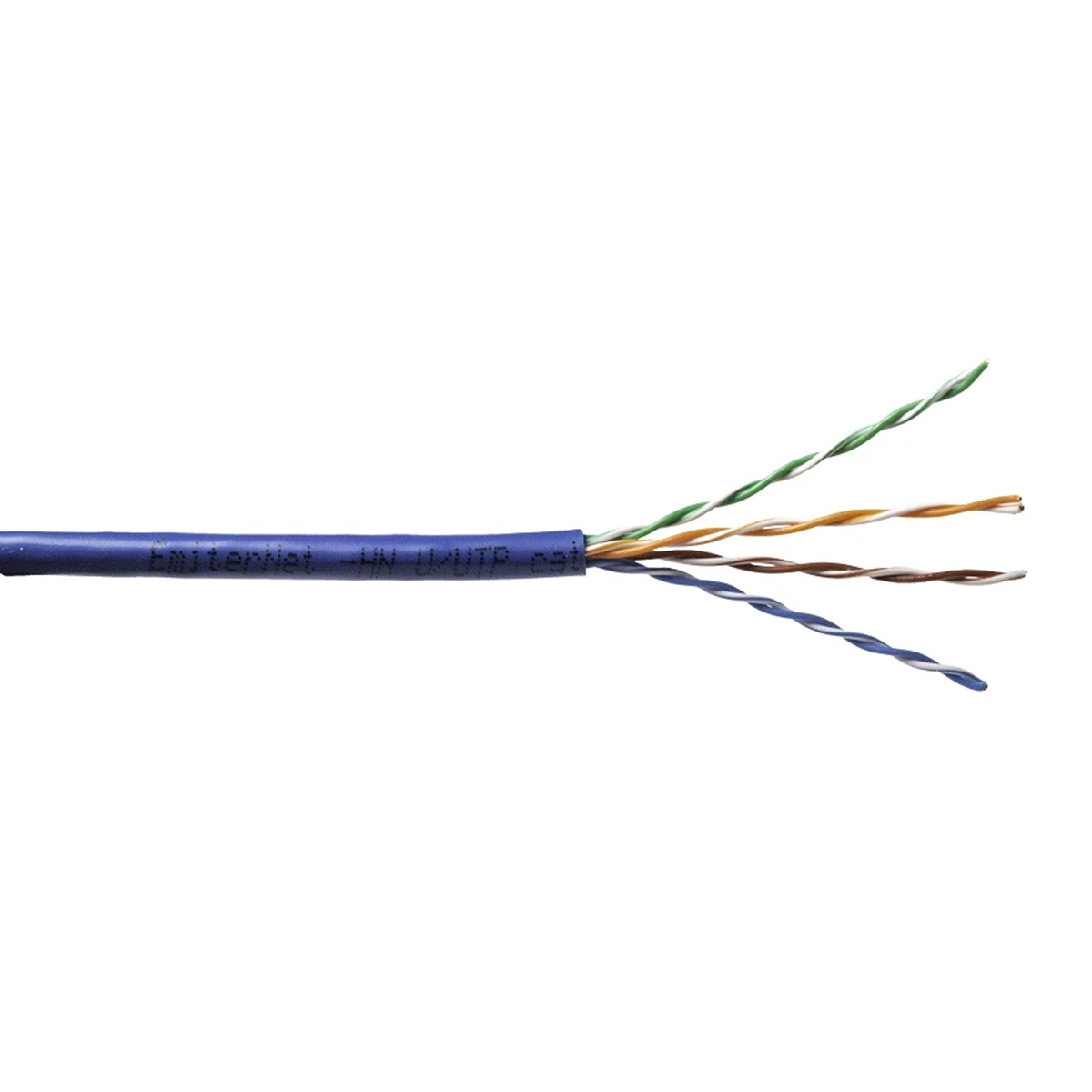

Emitter Net UTP cat. 5e stranded 4x2x24 AWG PVC blue
Technische Daten
-
ShieldedNO
-
Category5e
-
Vein materialCopper
-
Accurate colorGray
-
Number of veins4x2
-
ColorGray
-
CoreWire
Weitere technische Daten
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Number of stranding elements4
-
Material core insulationOther
-
Core identificationColour
-
StrandingBundle
-
Longitudinal water blocking cableNo
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathBlue
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Flame retardantNo
-
Low smoke according to EN IEC 61034-2No
-
Olejoodporny zgodnie z IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance40 mm
-
Min. permitted bending radius, stationary application/permanent installation20 mm
-
Permitted cable outer temperature after assembling without vibration-20 ... 70 °C
-
NVP value69 %
-
UV resistantNo
-
Diameter conductor0.205 mm
-
Number of cores8
-
Stranding elementPairs
-
Specification core insulationOther
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableNo
-
Specification material outer sheathOther
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Halogen free according to EN IEC 60754-2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Outer diameter approx.5.2 mm
-
Min. permitted bending radius, moving application/free movement40 mm
-
Permitted cable outer temperature during assembling/handling0 ... 50 °C
-
Category5E
-
Suitable for underground installationNo
