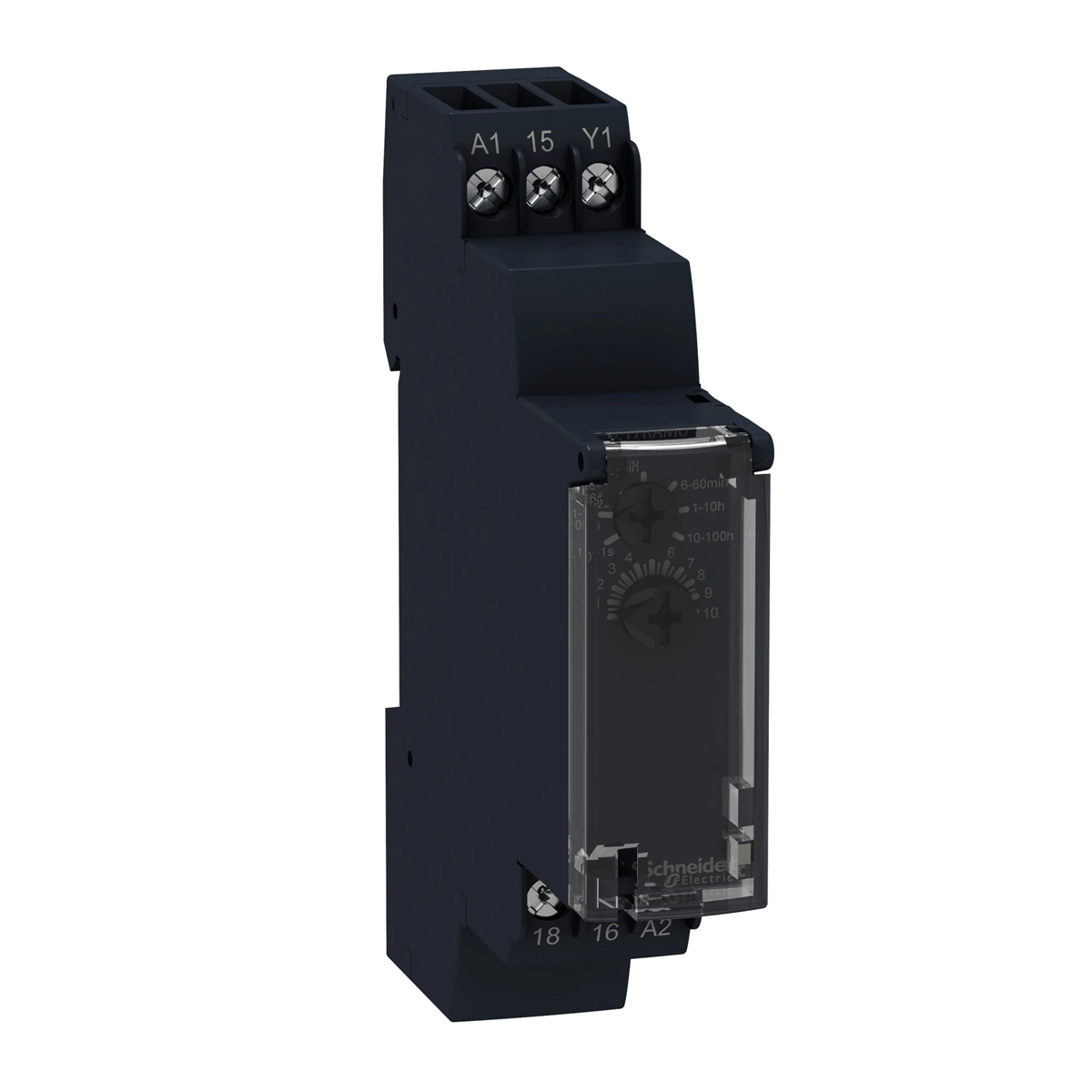

Zelio Time Time relay 24 240VAC DC range 0.1s/ 100h contact 1CO RE17RCMU

local index:
APC019SCHN
Catalog No:
RE17RCMU
EAN code:
3606480552694
Zelio Time Time relay 24 240VAC DC range 0.1s/ 100h contact 1CO
Zelio Time Time relay 24 240VAC DC range 0.1s/ 100h contact 1CO

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Width [mm]: 17.5
See full description
Price:
49,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Files to download

Product description

Zelio Time Time relay 24 240VAC DC range 0.1s/ 100h contact 1CO

Technical data

  • Width [mm]
    17.5
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    No
  • Function floating contact on de-energization
    No
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Time range
    0.1 ... 360000 s
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, change-over contact
    1
  • With semiconductor output
    No
  • Suitable for front mounting
    Yes
  • Height
    90 mm
  • Function delay-on energization
    No
  • Function floating contact on energization
    No
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Nominal current
    8 A
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, change-over contact
    1
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Width
    17.5 mm
  • Depth
    72 mm
