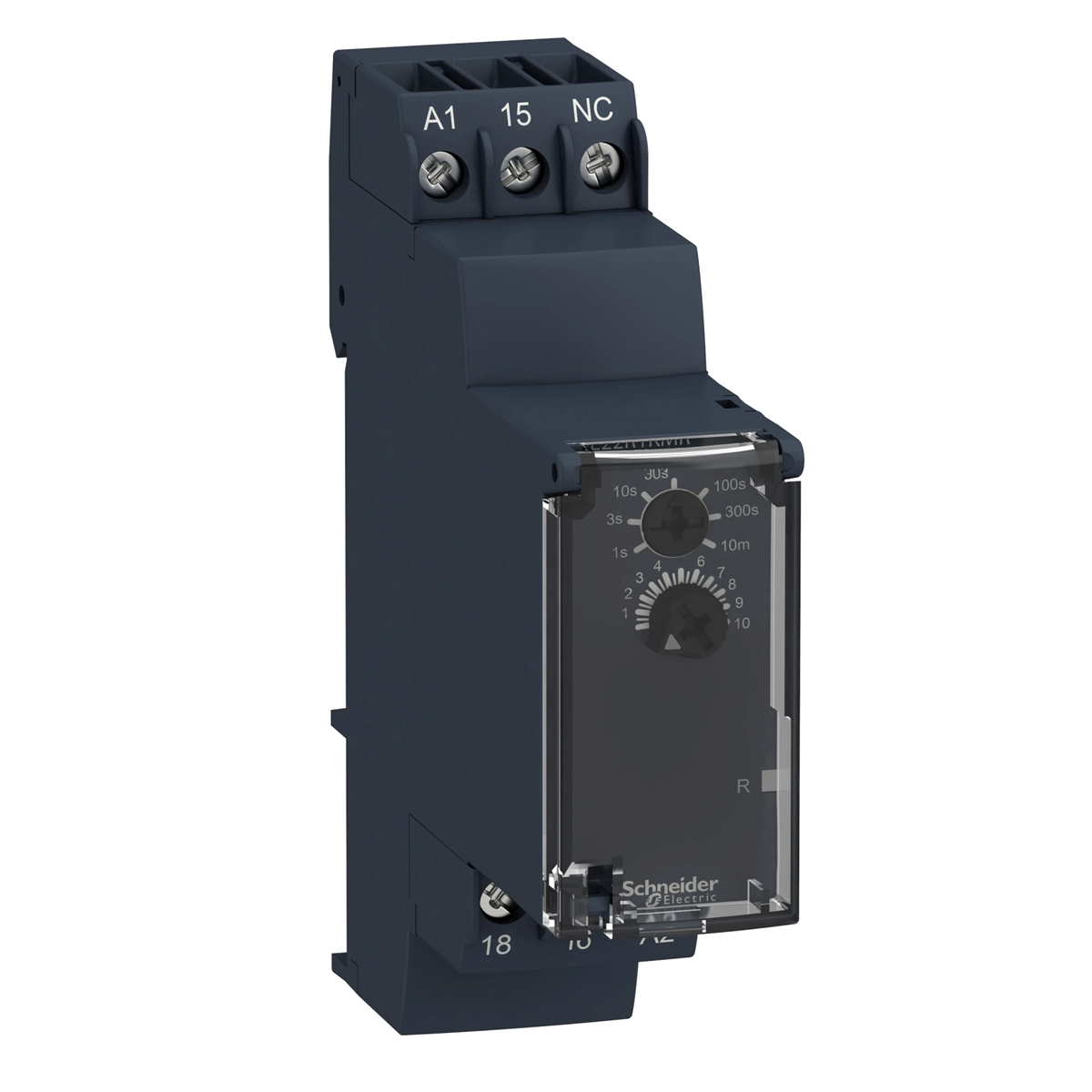

Zelio Time Time delay relay 24 240VAC/DC 0.05s/ 300h contact 1C/O 8A RE22R1KMR

local index:
APC026SCHN
Catalog No:
RE22R1KMR
EAN code:
3606480792458
Manufacturer: SCHNEIDER ELECTRIC
Width [mm]: 22.5
Price:
92,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Zelio Time Time delay relay 24 240VAC/DC 0.05s/ 300h contact 1C/O 8A

Technical data

  • Width [mm]
    22.5
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    No
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Time range
    0.05 ... 600 s
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, delayed, normally closed contact
    1
  • Number of outputs, delayed, change-over contact
    1
  • With semiconductor output
    No
  • Suitable for front mounting
    No
  • Height
    90 mm
  • Function delay-on energization
    No
  • Function floating contact on energization
    No
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • Nominal current
    5 A
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, change-over contact
    0
  • Number of outputs, delayed, normally open contact
    1
  • Outputs, reversible delayed/undelayed
    No
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Width
    22.5 mm
  • Depth
    73 mm
