el12 Automation Relays and drivers Other automation elements

XN-322-8DI-PD XN300 - 8 digital inputs, P 183172

Lokaler Index:
API023MOEL
Katalognummer:
183172
EAN-Code:
4015081781058

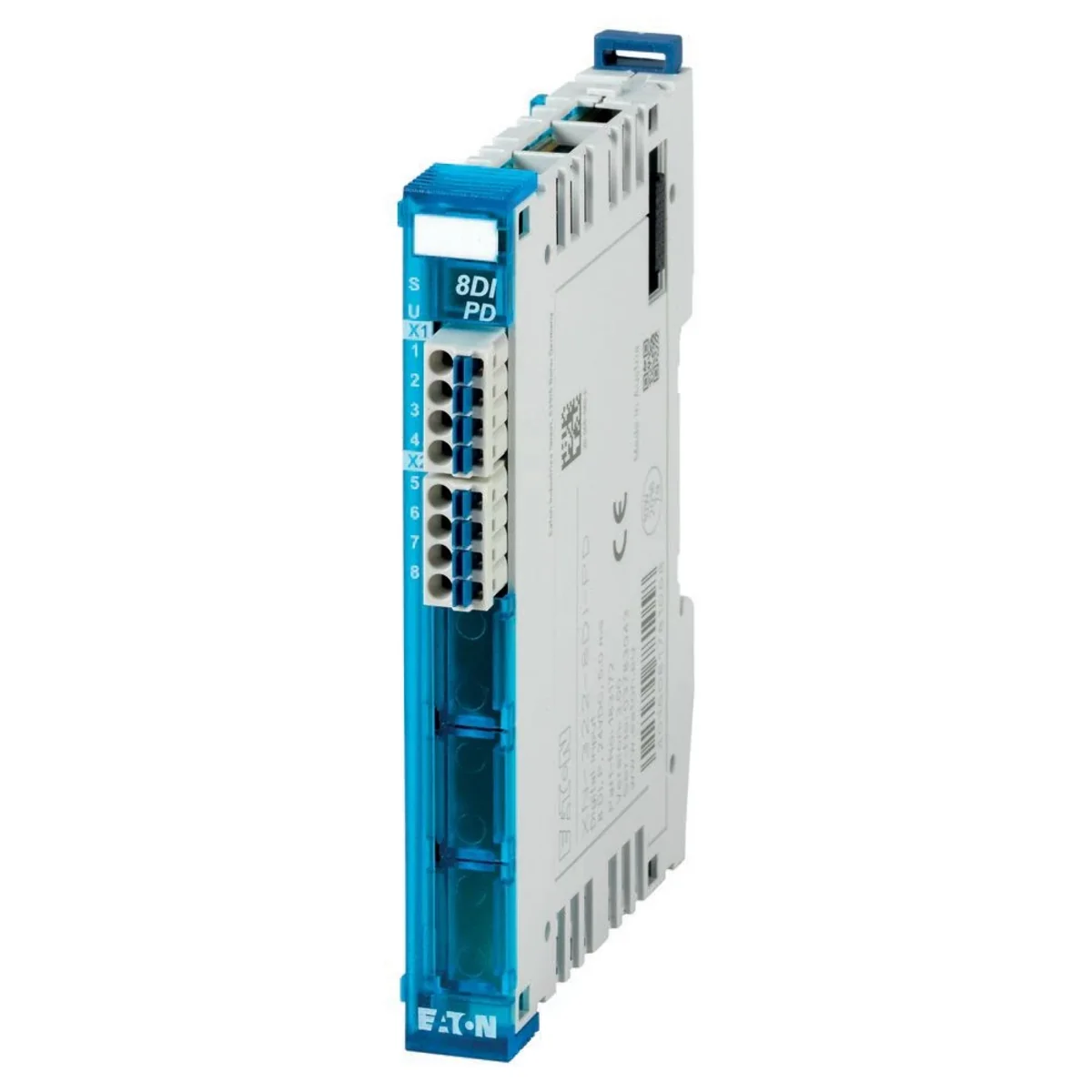

XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P
XN-322-8DI-PD XN300 - 8 digital inputs, P

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON
Preis:
651,21 zł
gross / stk.
(inklusive MwSt 23%)
2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

  • Supply voltage AC 50 Hz
    0 ... 0 V
  • Supply voltage DC
    18 ... 30 V
  • Number of digital inputs
    8
  • Digital inputs configurable
    No
  • Input current at signal 1
    3.7 mA
  • Type of voltage (input voltage)
    DC
  • Output current
    0 A
  • Type of output voltage
    DC
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    4 ... 6 ms

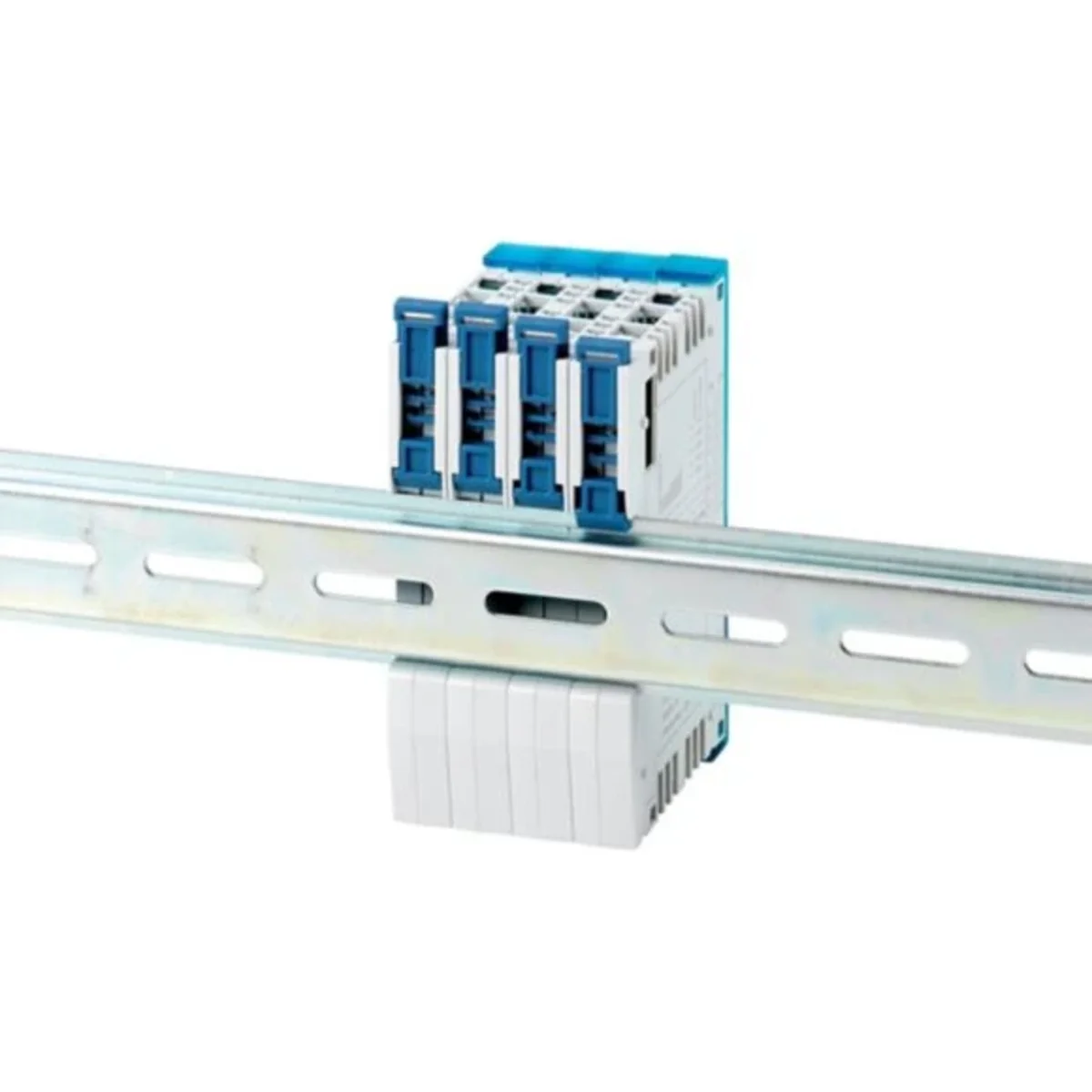

  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    16.8 mm
  • Supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    0
  • Digital outputs configurable
    No
  • Permitted voltage at input
    0 ... 30 V
  • Type of digital output
    None
  • Permitted voltage at output
    0 ... 0 V
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    1
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Plug-in connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    80.3 mm
  • Depth
    104.2 mm

Hersteller-Details

  • Hersteller
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-Mail
    wsparcietech@eaton.com

Großpackungen

Eine Art Paket Skrzynia Karton Skrzynia Karton
Menge 1 stk. 1 stk. 1 stk. 1 stk.
Gewicht (kg) 0,055 0,071 0,055 0,071
Volumen (m3) 0,000 0,000 0,000 0,000
Breite (m) 0,082 0,085 0,082 0,085
Länge (m) 0,106 0,108 0,106 0,108
Tiefe (m) 0,019 0,020 0,019 0,020
