XN-322-16DI-PD digital input module 183173
local index:
API100MOEL
Catalog No:
183173
EAN code:
4015081781065
Manufacturer:
EATON
Price:
169,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

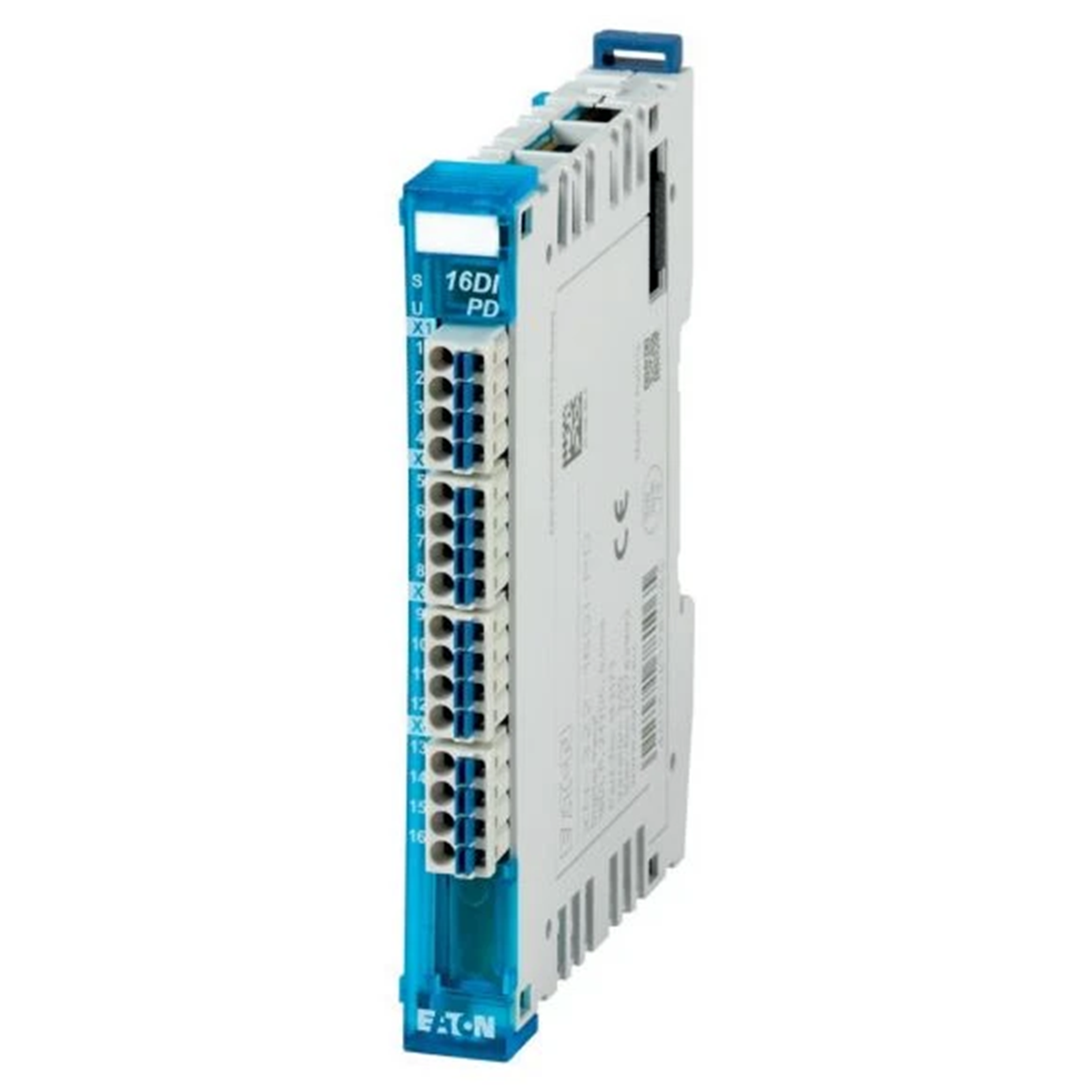

XN-322-16DI-PD digital input module
Technical data
Other technical data
-
Supply voltage AC 50 Hz0 ... 0 V
-
Supply voltage DC18 ... 30 V
-
Number of digital inputs16
-
Digital inputs configurableNo
-
Input current at signal 13.7 mA
-
Type of voltage (input voltage)DC
-
Output current0 A
-
Type of output voltageDC
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4850
-
Number of HW-interfaces parallel0
-
Number of HW-interfaces USB0
-
With optical interfaceNo
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsYes
-
Radio standard WLAN 802.11No
-
Radio standard GSMNo
-
IO link masterNo
-
Degree of protection (IP)IP20
-
Time delay at signal change4 ... 6 ms
-
Rail mounting possibleYes
-
Front built-in possibleNo
-
Suitable for safety functionsNo
-
Performance level according to EN ISO 13849-1None
-
Appendant operation agent (Ex ib)No
-
Explosion safety category for dustNone
-
Height16.8 mm
-
Supply voltage AC 60 Hz0 ... 0 V
-
Voltage type (supply voltage)DC
-
Number of digital outputs0
-
Digital outputs configurableNo
-
Permitted voltage at input0 ... 30 V
-
Type of digital outputNone
-
Permitted voltage at output0 ... 0 V
-
Short-circuit protection, outputs availableNo
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces wireless0
-
Number of HW-interfaces other1
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Radio standard BluetoothNo
-
Radio standard GPRSNo
-
Radio standard UMTSNo
-
System accessoryYes
-
Type of electric connectionPlug-in connection
-
Fieldbus connection over separate bus coupler possibleYes
-
Wall mounting/direct mountingNo
-
Rack-assembly possibleNo
-
SIL according to IEC 61508None
-
Appendant operation agent (Ex ia)No
-
Explosion safety category for gasNone
-
Width80.3 mm
-
Depth104.2 mm
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,055 | 0,071 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,080 | 0,085 |
| Length (m) | 0,104 | 0,108 |
| Depth (m) | 0,017 | 0,020 |
