Wired roller shutter controller TYPE: SRP-01 EXT10000126

local index:
APT011ZAME
Catalog No:
EXT10000126
EAN code:
5903669024170
Manufacturer: ZAMEL
Length [mm]: 20
Power [W]: 1250
Rated voltage [V]: 230
Price:
30,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 33 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

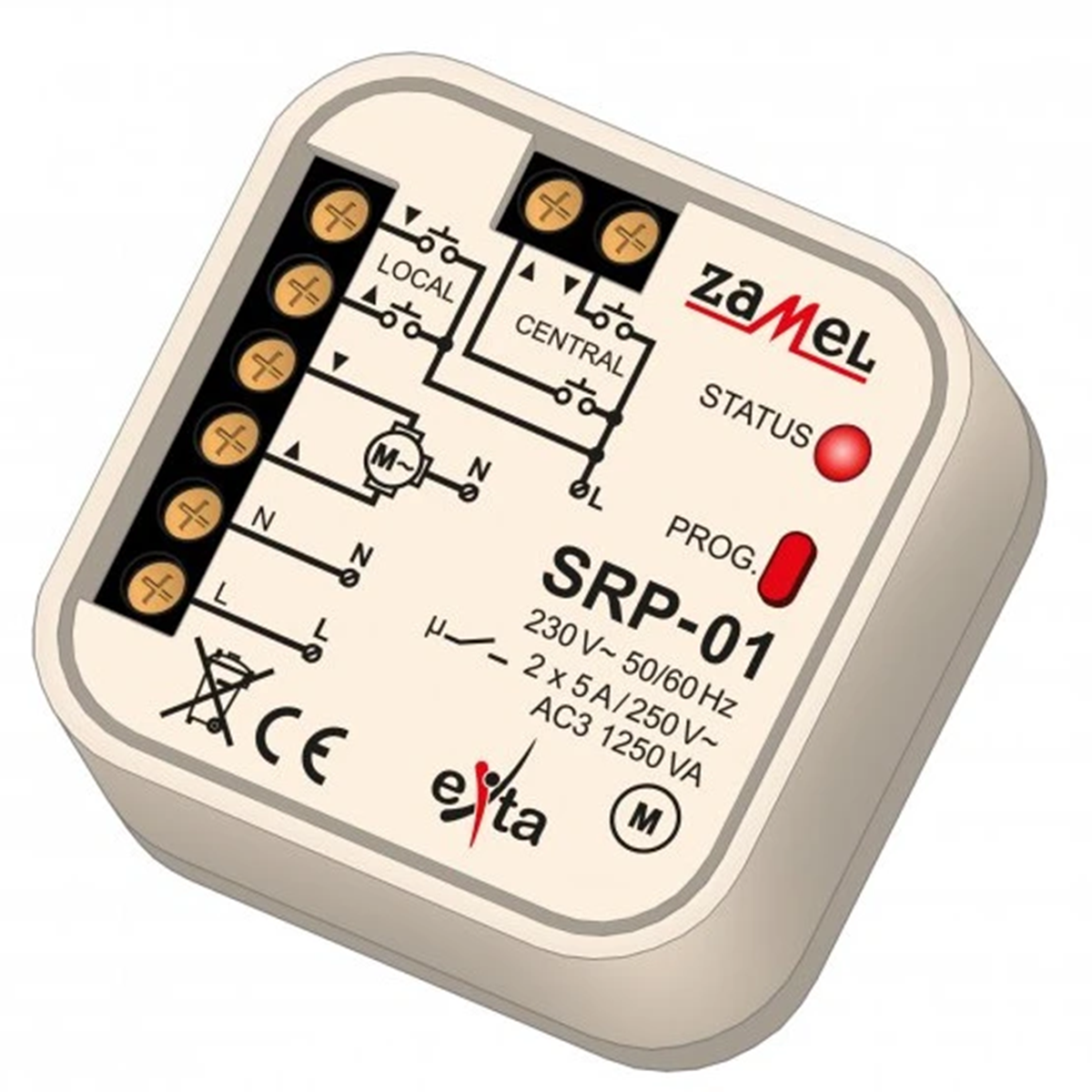

SRP-01 recessed roller shutter controller designed for local and/or central control of window roller shutters or other devices driven by 230 V single-phase motors. It can operate as an independent controller or be combined into sections. The device has built-in comfortable modes - upper and lower (possibility of remembering the position of the blind). The range of time settings t discreetly 0 - 2 min. Housing mounting box fi 60

Technical data

  • Length [mm]
    20
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Type
    Drivers
  • PKWIU
    27.12.40.0
  • Power [W]
    1250
  • Relay current [A]
    5
  • Width [mm]
    47.5
  • Height [mm]
    47.5
