Weekly programmable timer PCZ-521.3 PLUS PCZ-521.3-PLUS

local index:
APC043FIFQ
Catalog No:
PCZ-521.3-PLUS
EAN code:
5902431673134
Manufacturer: F&F
Time error: ±1s/24h
Setting accuracy: 1 min.
Indication accuracy: 1 sec
Price:
50,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Weekly programmable timer from the manufacturer F&F. The product catalog number is PCZ-521.3-PLUS. Work on a weekly basis, with a memory of 500 program steps. Programmable manually or remotely via NFC and mobile application. Load capacity of the executive contact 16 A [AC-1]. External input controlling the clock operation and backlit LCD display. The clock turns on and off the controlled electric circuit at programmed times in a weekly cycle, with the possibility of setting recurring programs: daily, weekly, on working days (Mon-Fri) and on holidays (Sat-Sun). An external button connected to the clock allows you to temporarily interrupt the program execution and manually control the receiver.

  • work in automatic mode in a weekly cycle or in manual mode,
  • memory for up to 500 commands on or off,
  • programming directly in the timer or remotely using a free mobile application (Android) with using NFC wireless communication,

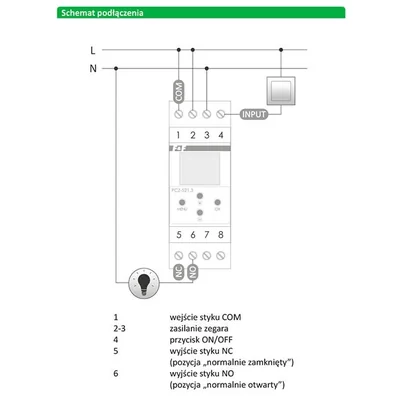

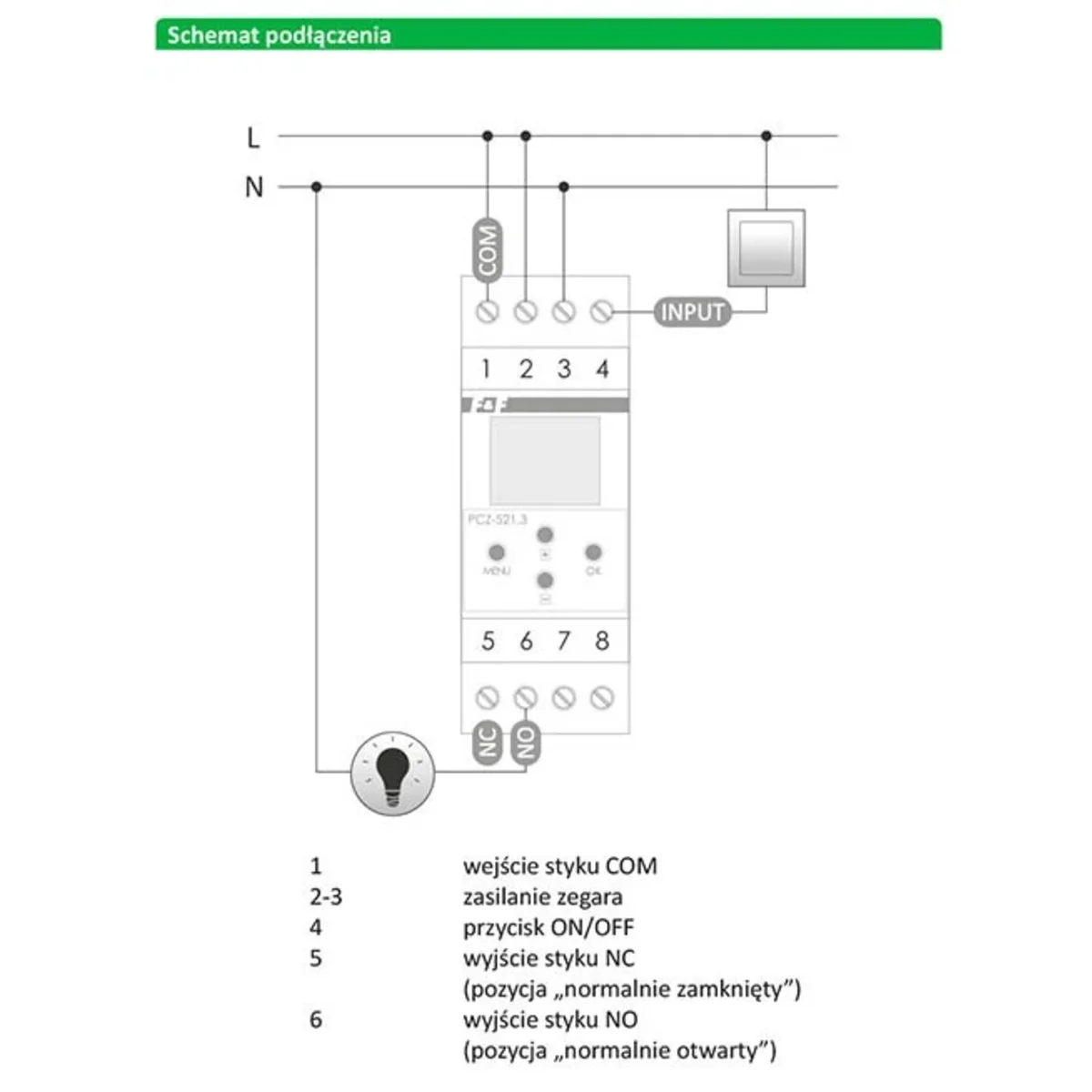

  • possibility of connecting an external button for temporary interruption of the work program and manual control of the relay operation (the break will be valid until the next switching resulting from the automatic operation cycle),
  • illuminated display with programmable brightness and contrast levels,
  • built-in, replaceable battery to maintain clock settings in case of power failure and battery charge indicator informing about the need to replace it,
  • automatic switching between summer and summer time winter,
  • relay state memory – in manual mode, the state of the relay will be restored after a power failure and return.



The PCZ-521.3 Plus clock equipped with there is a NFC wireless communication module (short-range communication used, among others, for contactless payments). Thanks to this, having a phone equipped with an NFC communication module and working under the control of the Android system, you can remotely program the clock using the free PCZ Configurator application. The basic capabilities of the PCZ Configurator application include:

  • preparing the clock configuration in offline mode (without the need to connect to the clock),
  • reading and saving the configuration to the controller,
  • quick programming of multiple controllers using the previously prepared configuration ,
  • filtering of programs enabling easy determination of program steps performed in a given period,
  • reading and saving configuration to a file;
  • sharing configuration files via e-mail, Bluetooth, network drives,
  • unambiguous identification of the connected clock and the ability to give devices your own names,
  • automatic backup of configurations which, in conjunction with the given name of the clock, will allow it is easy to restore the previous configuration,
  • setting the time and date based on the clock on the phone.



Parameters

  • Supply voltage: 24÷264 V AC/DC.
  • Control input: +/L/N trigger.
  • Maximum pulse current 1 mA.
  • Pin configuration: 1 × NO/NC.
  • Contact separation: YES.
  • Operating temperature: -20÷50°C.
  • Dimensions: 2 modules (35 mm).
  • Mounting: on 35 mm rail.

Technical data

  • Time error
    ±1s/24h
  • Indication accuracy
    1 sec
  • Maximum load current [A]
    16
  • Power consumption [W]
    1.5
  • Battery type
    2032 (lithium)
  • PKWIU
    27.12.31.0
  • Setting accuracy
    1 min.
  • The number of program memory cells
    500 (250 pairs of ON/OFF COMMANDS)
  • Tightening torque [Nm]
    0.5
  • Level of security
    IP20
  • Terminal type
    Threaded

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    24 ... 264 V
  • Accuracy per day
    1 s
  • With memory card
    No
  • 24 h program
    Yes
  • Annual program
    No
  • Cycle program
    Yes
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 1
    1 min
  • Number of memory locations
    500
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Width in number of modular spacings
    2
  • Height
    90 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC/DC
  • External programming
    Yes
  • 60 min program
    Yes
  • Weekly program
    Yes
  • Impulse program
    Yes
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Contact type
    Change-over contact (NO/NC)
  • Shortest switching time channel 2
    1 min
  • Automatic switching summer-/winter time
    Yes
  • External pushbutton input
    Yes
  • Degree of protection (IP)
    IP20
  • Width
    35 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,110
Width (m) 43,000
Length (m) 70,000
Depth (m) 103,000
