W.1 Key safety switch IP55 grey 44713515

Name: W.1 Key safety switch IP55 grey
Brand: BERKER
SKU: ALB002BERK
Price: 161.12 PLN

local index:

ALB002BERK

Catalog No:

44713515

EAN code:

4011334390435

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 67

Surface: Matt

Rated current [A]: 10

See full description

Price:

161,12 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

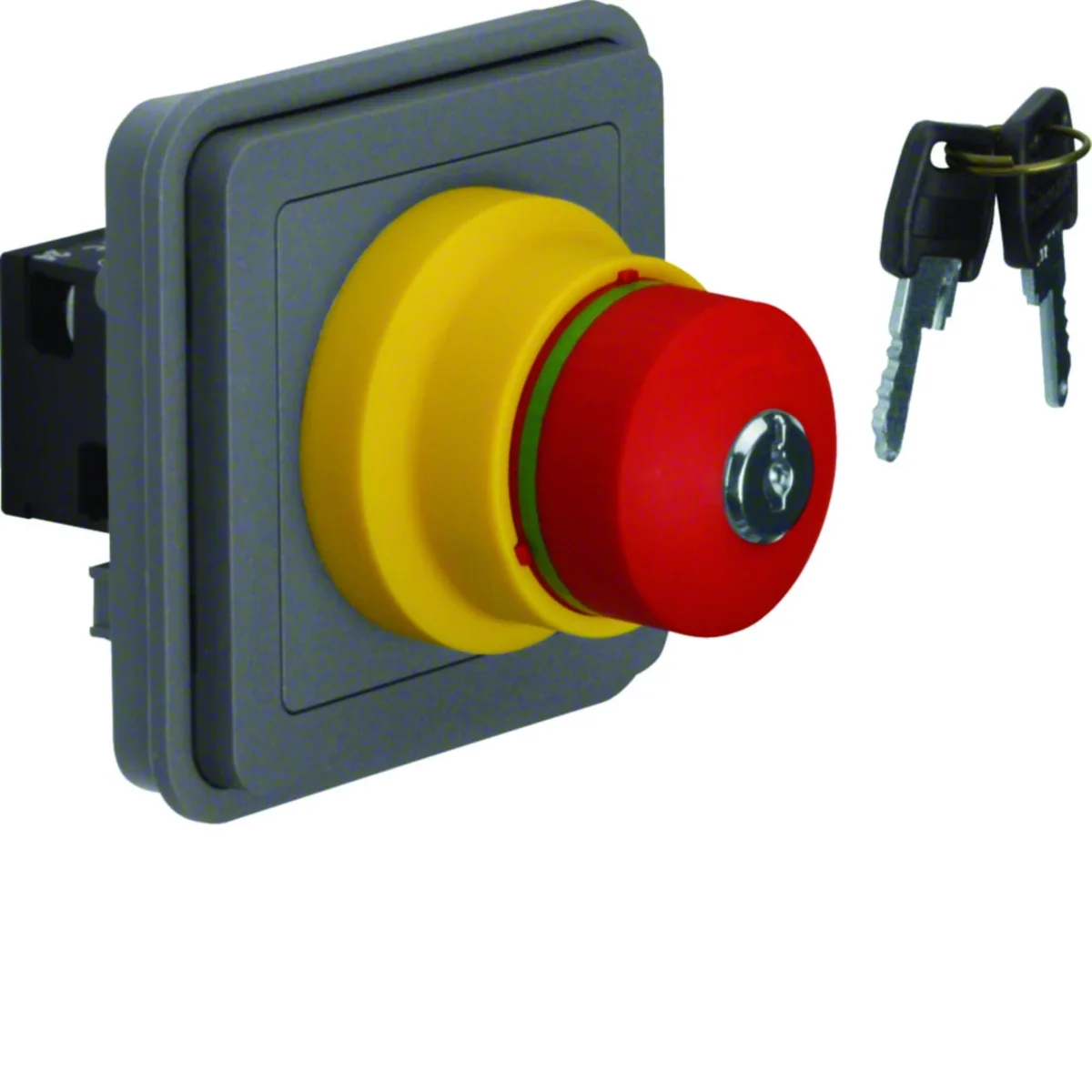

Key key safety switch module, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The mechanisms achieve the IP55 degree of protection only when mounted with a surface-mounted housing or a frame for flush-mounting.

Technical data

Depth [mm]

67
Rated current [A]

10
Level of security

IP20
Operating temperature range [°C]

from -40 to 30
storage temperature [°C]

from -50 to 50

Surface

Matt
Family

W.1
Width [mm]

71
Connection type

With screw terminals
PKWIU

27.33.11.0

Other technical data

Degree of protection (IP)

IP20
With lighting

No

Mounting method

Surface mounting
Diameter cap

36.5 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	18 pcs.	576 pcs.
Weight (kg)	0,095	0,123	2,656	104,992
Width (m)	0,071	0,087	0,300	0,800
Length (m)	0,067	0,096	0,225	1,050
Depth (m)	0,071	0,119	0,400	1,200
