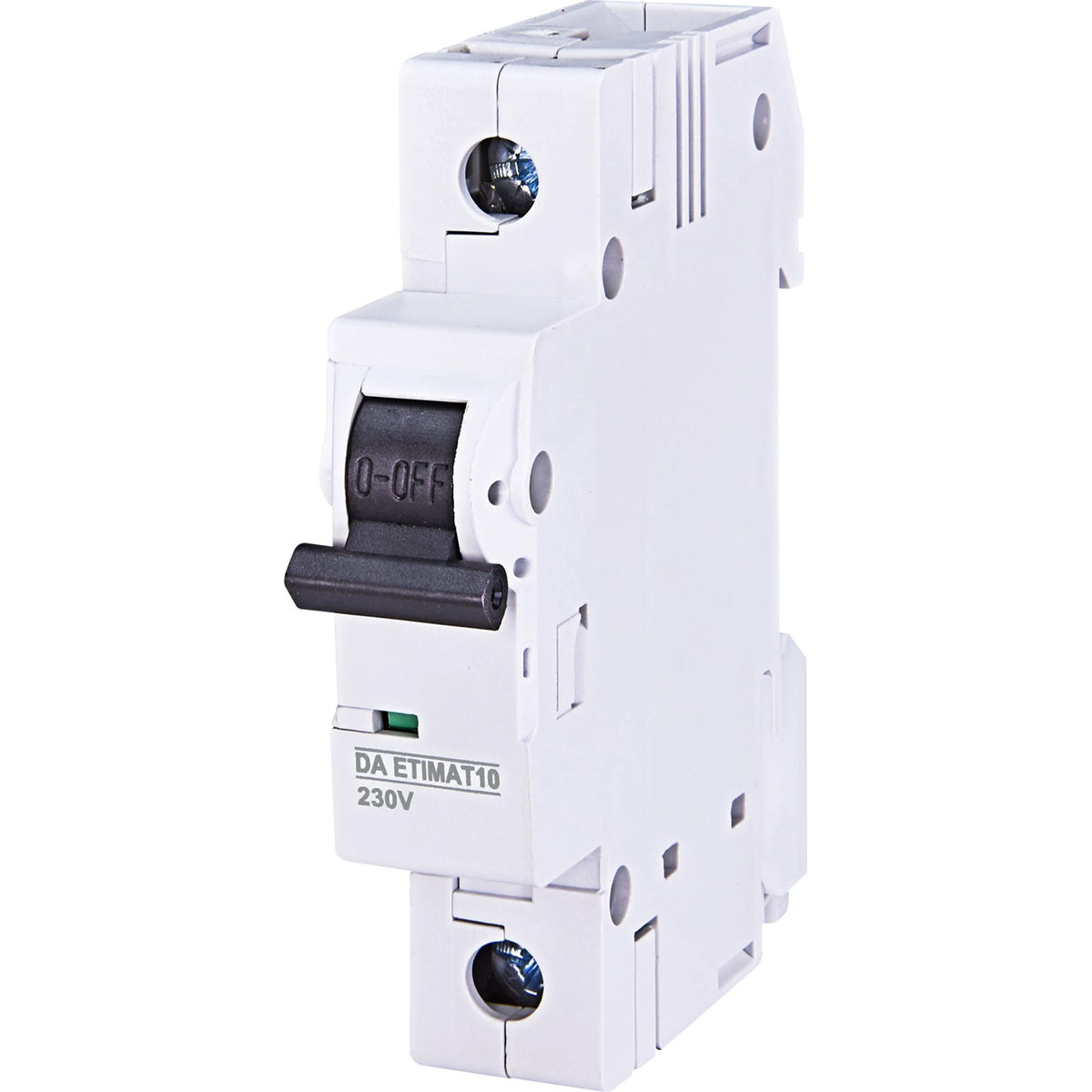

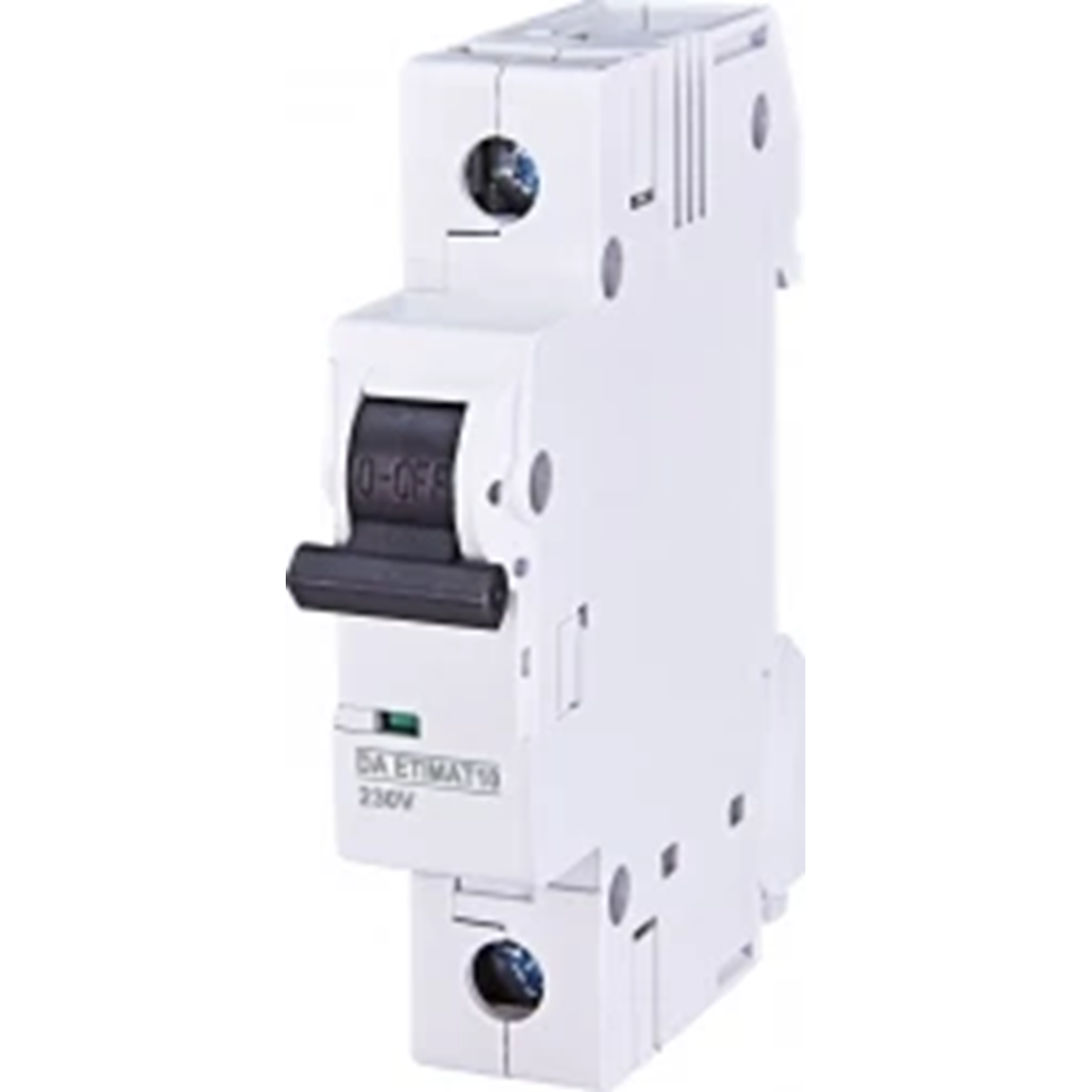

Voltage (increase) release DA ETIMAT10 230 AC/DC 002159301

local index:
ALA001ETIP
Catalog No:
002159301
EAN code:
3838895308553
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Number of NO contacts: 1
Price:
15,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The DA ETIMAT 10 voltage (increase) release is mounted to the side (right) side of the ETIMAT 10 and ETIMAT 10 DC, ETIMAT 6 overcurrent circuit breakers, and the OSP-10 and ETIMAT T power limiters.
< br /> Causes the circuit breaker to trip when voltage is applied to the trip coil. It can also be used for SV disconnectors in the range of rated currents 16A - 40A.

Technical data

  • Rated voltage [V]
    230
  • PKWIU
    27.12.22.0
  • Number of NO contacts
    1

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC/DC
  • Rated control supply voltage DC
    230 ... 230 V
  • Type of electric connection
    Screw connection
