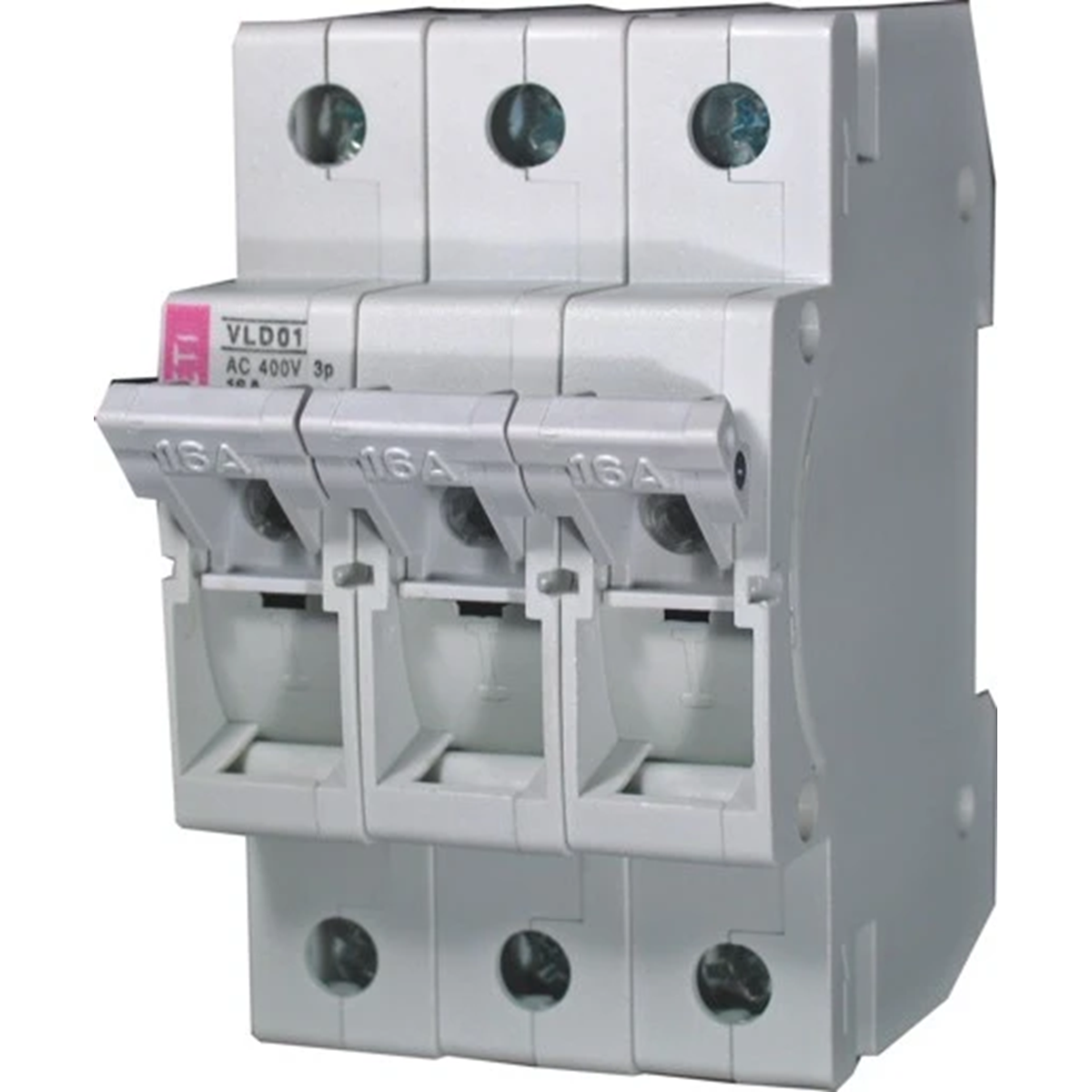

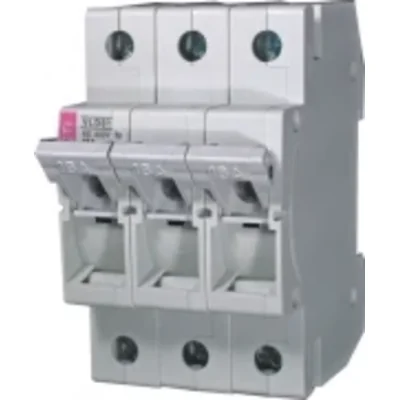

VLDO1 6A 3p fuse switch disconnector 002261011

local index:
ALB101ETIP
Catalog No:
002261011
EAN code:
5904722906730
Manufacturer: ETI POLAM
Neutral pole N: disconnectable
Number of poles: 3
Surge voltage [kV]: 8
Price:
52,52 €
gross / pcs.
(including VAT 23%)
258,72 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The fuse disconnector is a protective device with a replaceable fuse link.
It allows you to use the operational advantages of the D0 fuse system:
– enables replacement of a blown fuse-link without the risk of touching live parts
– no need for a fuse head; the correct contact of the insert is ensured by a system of spring clips
– both in position 1 and 0, the fuse link indicator is visible.
VLD01 switch disconnector operating principles - Replaceable insert (drawer) for D01 fuse links (2A to 6A, 10A, 16A) serves as a lever / switch. and off/on the switch. The replaceable insert can only be replaced with an additional tool. The disconnector is designed to be mounted on a TH 35 rail.
Advantages:
→ dimensions of the VLD01 switch disconnector comparable to other serial devices, e.g. Etimat, EFI, Eticon, Etitec circuit breakers, lamps, etc.
→ sealable in on and off position,
→ the construction of the clamp allows for a cable as well as a bridging rail,
→ depending on the types, they are made in versions 1p, 1p+N, 2p, 3p, 3p+N,
→ working category AC 22B,
→ Rated short-circuit capacity [kA]: 50.

Technical data

  • Neutral pole N
    disconnectable
  • Surge voltage [kV]
    8
  • Terminal capacity
    25mm
  • Width [mm]
    52.5
  • Mechanical strength
    10,000 shifts
  • PKWIU
    27.12.23.0
  • Number of poles
    3
  • Rated voltage [V]
    230
  • Rated current [A]
    6
  • Weight [g]
    203
  • Insulation voltage [V]
    500

Other technical data

  • Number of poles
    3
  • Rated voltage
    400 V
  • Construction size
    D01
  • Rated current
    6 A

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 4 pcs. 36 pcs.
Weight (kg) 0,920 -
Volume (m3) 0,002 -
Width (m) 0,092 -
Length (m) 0,220 -
Depth (m) 0,078 -
