VISTOP 32 A 4P switch disconnector in a housing 022607

Index local:

ALP003LEGR

Numéro de catalogue:

022607

Code EAN:

3245060226077

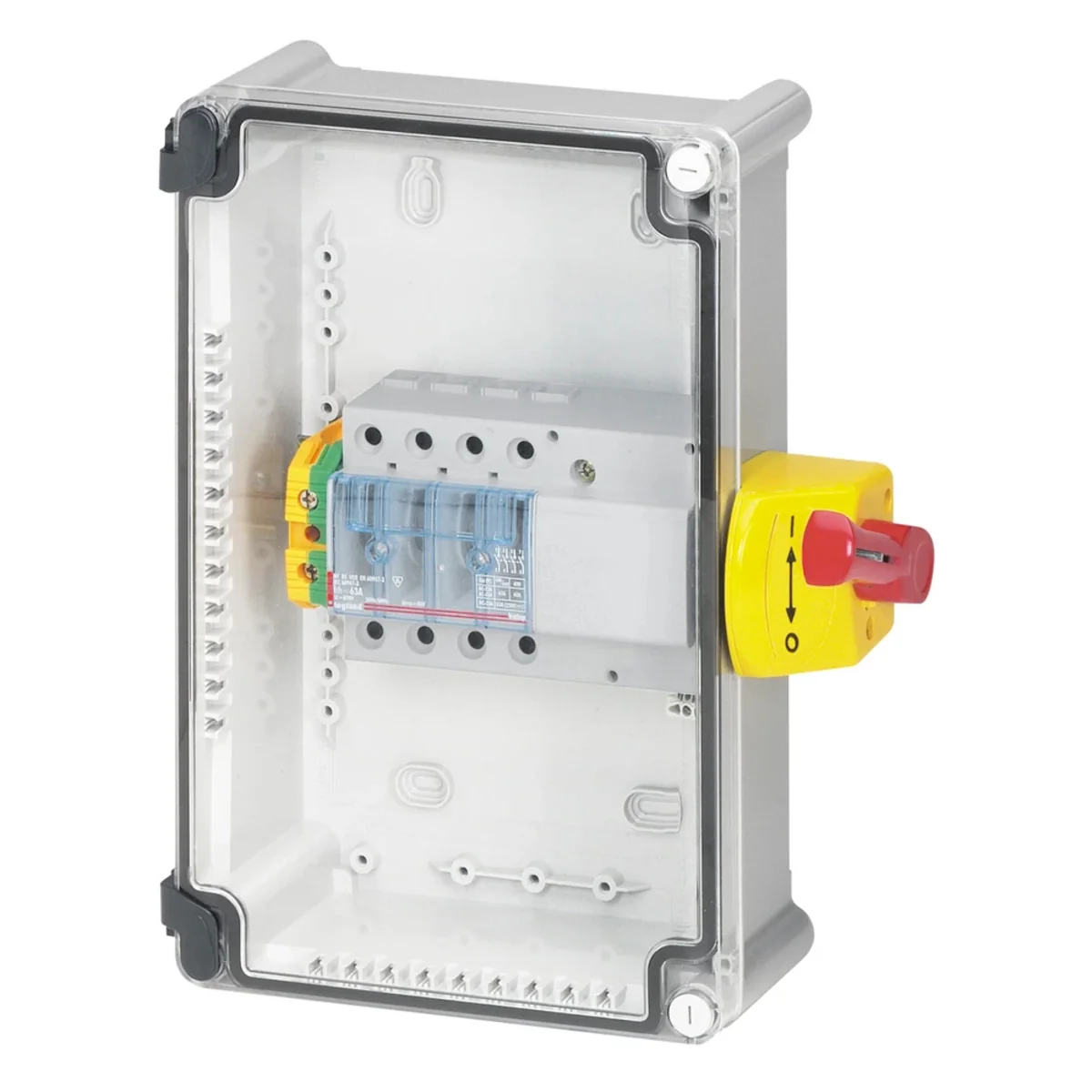

VISTOP 32 A 4P switch disconnector in a housing

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Rated current [A]: 32

Voir la description complète

1 730

zł

gross / pcs. (y compris la TVA 23%)

Dostępne jusqu'à 2 semaines

Sur commande

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Vistop switch disconnectors in a housing, with external control
Case made of insulating materials (transparent cover)
Switch disconnector rated currents from 32 to 160 A
Switch disconnectors equipped with auxiliary contacts: N/C and N/O< br>Switch disconnector lever in red, adapted for sealing in the 'off' position
Switches designed for multi-family, industrial and general construction, machinery and production equipment
agricultural machinery, passenger and industrial lifts
IP65 protection level, IK07

32 A
Connection: sleeve terminals 16 mm2
Supplied with: 2 pcs. glands 21P - ISO25
Number of poles: 4
PE protective terminal: 10 mm2

Données techniques

Rated current [A]

32

PKWIU

27.12.23.0

Autres données techniques

Version as main switch

Yes
Version as safety switch

Yes
Version as reversing switch

No
Rated operating voltage

500 ... 500 V
Rated permanent current at AC-21, 400 V

32 A
Rated operation power at AC-23, 400 V

17 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

1
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

No
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Toggle
Type of electrical connection of main circuit

Screw connection

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Max. rated operation voltage Ue AC

500 V
Rated permanent current Iu

32 A
Rated short-time withstand current lcw

0.5 kA
Switching power at 400 V

17 kW
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Complete device in housing
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

No
Colour control element

Red
Interlockable

Yes
Degree of protection (IP), front side

IP65

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	BX	CT	PF
Quantité	1 pcs.	6 pcs.	216 pcs.
poids (kg)	0,928	6,032	217,152
Volume (m3)	0,005	0,042	2,005
Largeur (m)	0,207	0,251	1,200
Longueur (m)	0,100	0,256	1,671
Profondeur (m)	0,225	0,648	1,000
