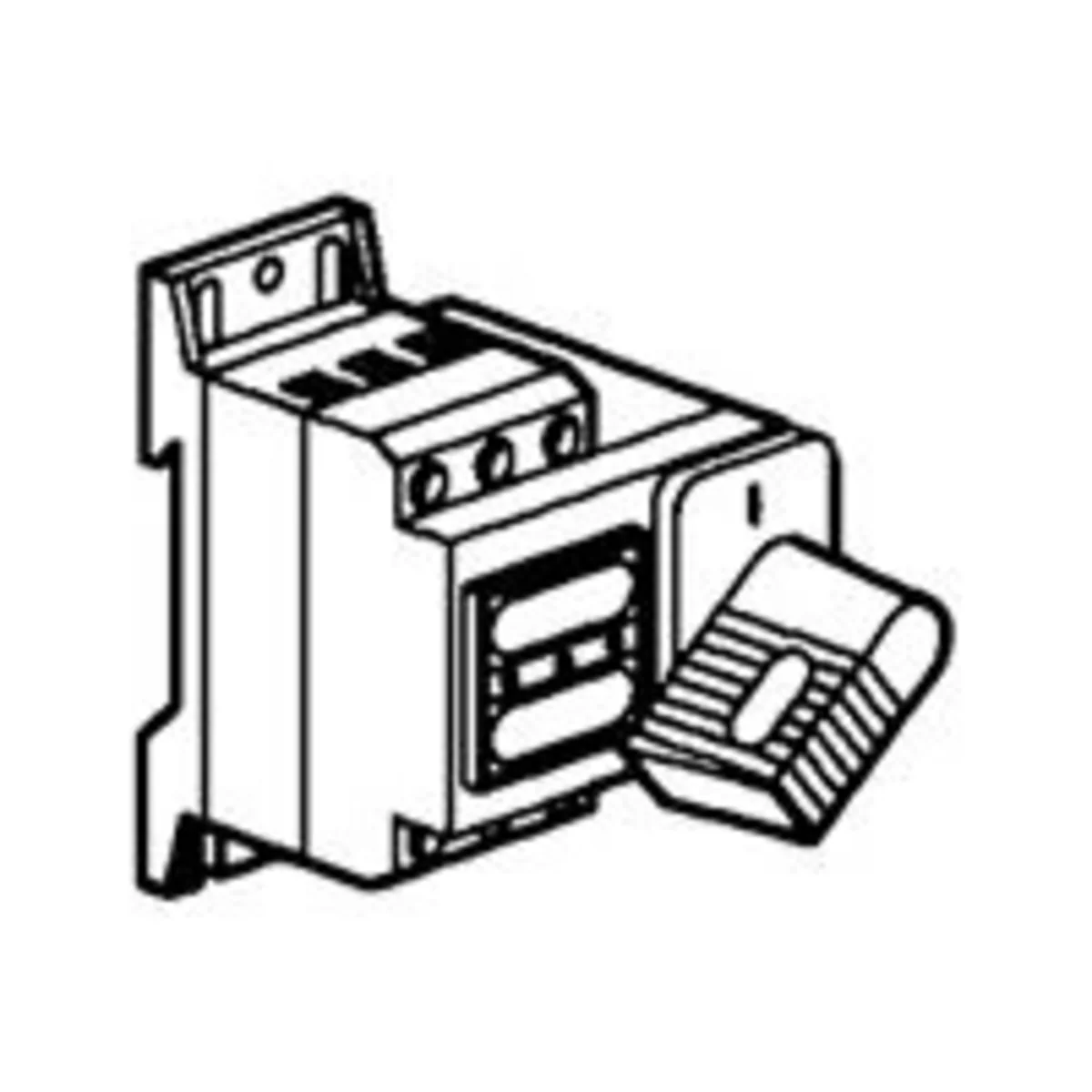

VISTOP 32 A 3P fort switch disconnector 022500
Lokaler Index:
ALB056LEGR
Katalognummer:
022500
EAN-Code:
3245060225001
Hersteller:
LEGRAND
maximum range [m]: 8
Maximum power [W]: 300
Adjustable sensitivity: from 3 to 1000 lux
810
43
zł
gross / stk.
(inklusive MwSt 23%)
Verfügbarkeit
Dostępne bis zu 2 Wochen
Auf Bestellung
Dostępność w oddziale
Wählen Sie Ihren Großhändler
Wählen Sie
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Minimum load [W]: 60
Technische Daten
-
maximum range [m]8
-
Adjustable sensitivityfrom 3 to 1000 lux
-
Range [m]8
-
Maximum power [W]300
-
Adjustable delayfrom 6 seconds to 6 minutes
-
PKWIU27.12.23.0
Weitere technische Daten
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage500 ... 500 V
-
Rated permanent current at AC-21, 400 V32 A
-
Rated operation power at AC-23, 400 V17 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreYes
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitScrew connection
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Max. rated operation voltage Ue AC500 V
-
Rated permanent current Iu32 A
-
Rated short-time withstand current lcw0.5 kA
-
Switching power at 400 V17 kW
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP2X
Hersteller-Details
-
HerstellerLegrand Polska Sp. z o.o.
-
Adresse57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Pudełko | Karton | Paleta |
| Menge | 1 stk. | 20 stk. | 200 stk. |
| Gewicht (kg) | 0,224 | 4,880 | 48,800 |
| Volumen (m3) | 0,001 | 0,015 | 0,347 |
| Breite (m) | 0,073 | 0,303 | 1,200 |
| Länge (m) | 0,078 | 0,126 | 0,289 |
| Tiefe (m) | 0,105 | 0,398 | 1,000 |
