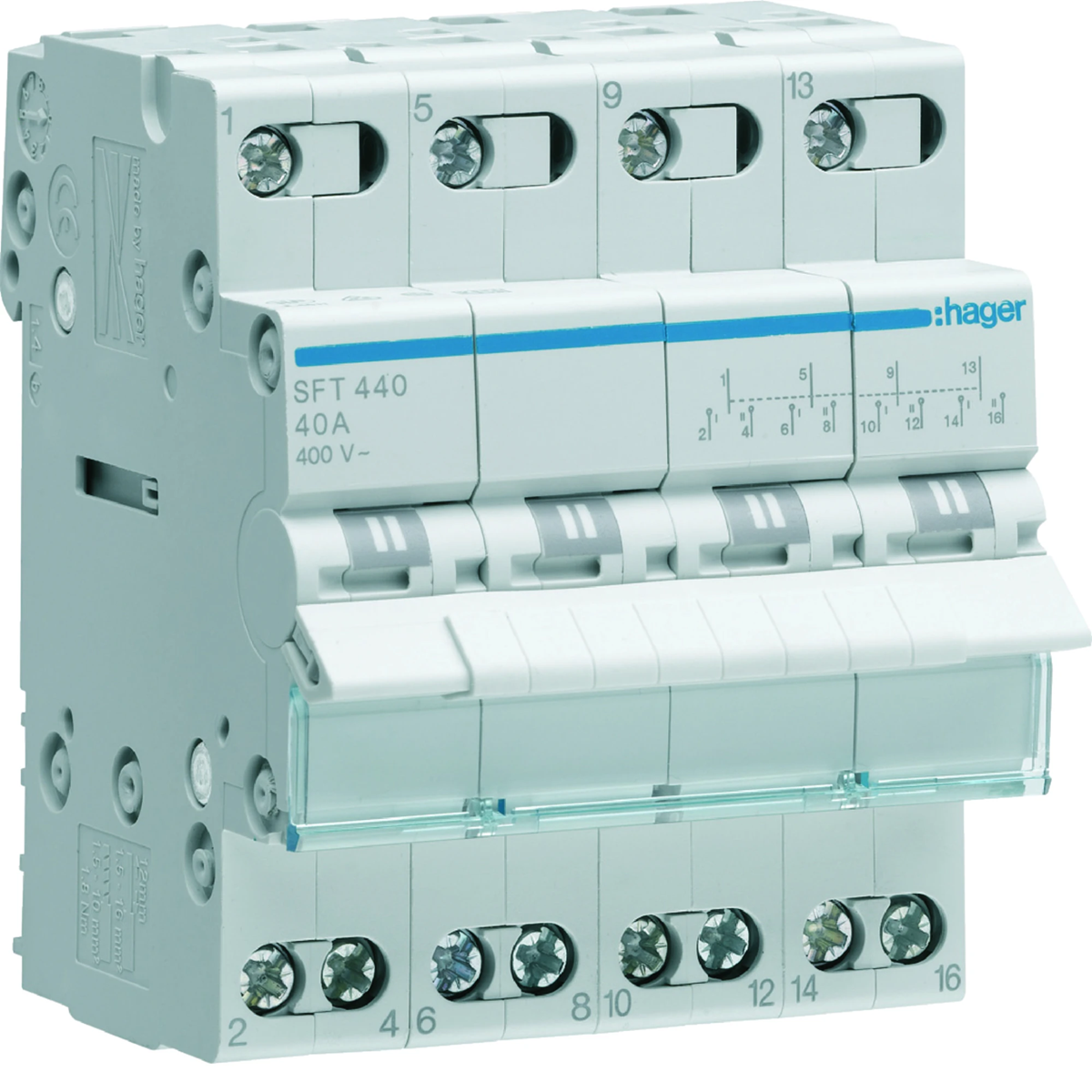

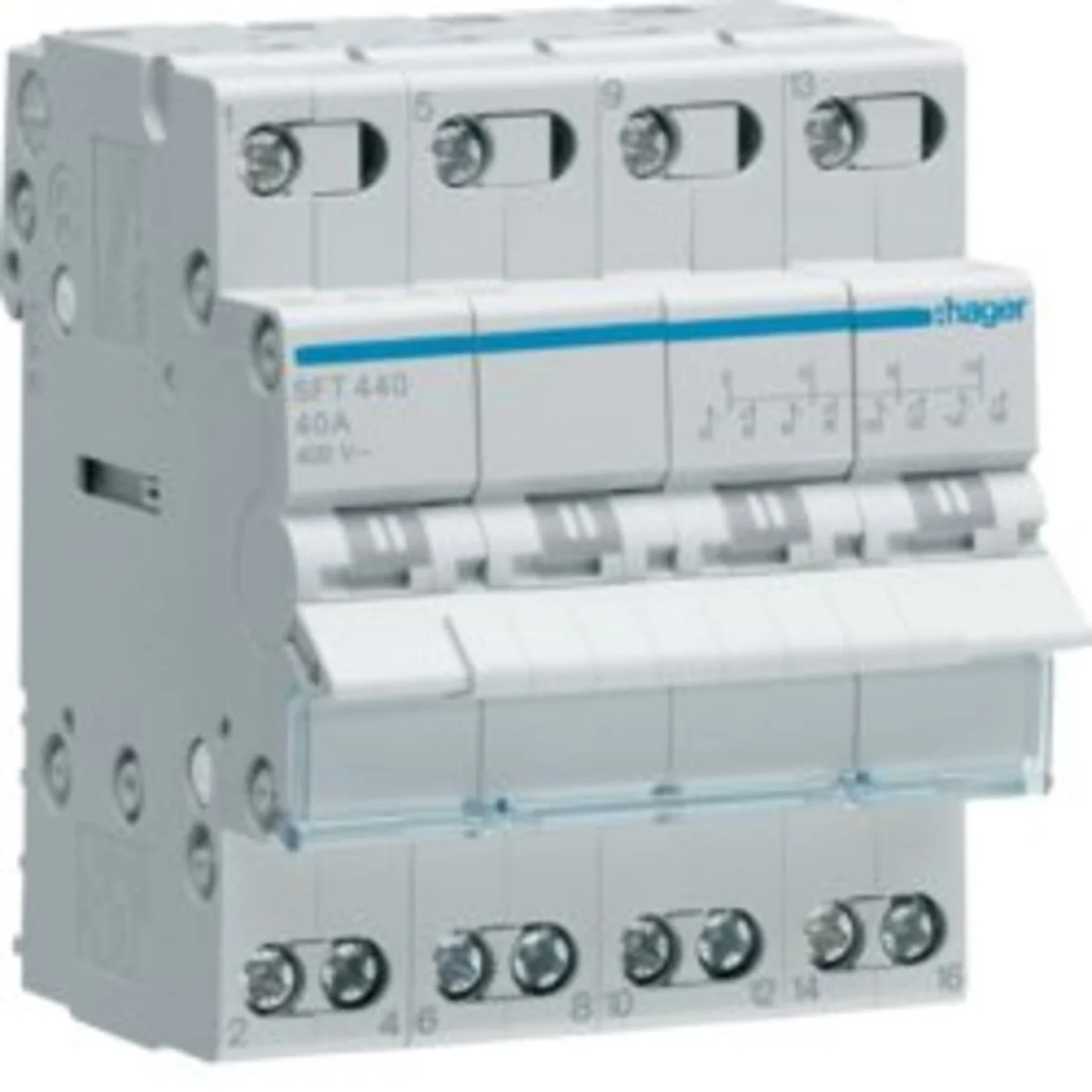

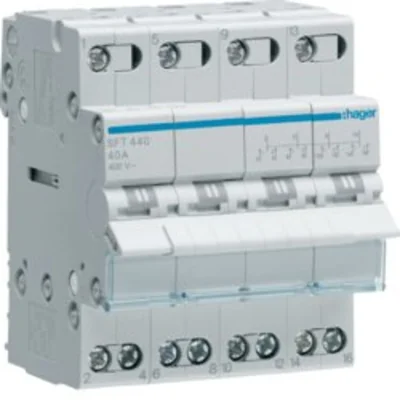

Upper power supply switch I-0-II 4P 40A SFT440

local index:
ALI177HAGE
Catalog No:
SFT440
EAN code:
3250615510945
Manufacturer: HAGER
Depth [mm]: 71
Number of modules: 4
Number of poles: 4
Price:
44,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Upper power supply switch I-0-II 4P 40A

Technical data

  • Depth [mm]
    71
  • Number of poles
    4
  • Rated insulation voltage [V]
    440
  • Width [mm]
    70
  • Number of modules
    4
  • Number of modules
    4
  • Rated voltage [V]
    230
  • Rated current [A]
    40
  • Height [mm]
    83
  • PKWIU
    27.33.11.0

Other technical data

  • Switching function
    Two-way switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    4
  • Rated voltage
    400 V
  • Rated switching capacity
    0.846 kA
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    71 mm
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    4
  • Rated current
    40 A
  • Min. rated voltage
    400 V
  • Short-circuit breaking capacity (Icw)
    0.6 kA
  • With signal lamp
    No
  • Width in number of modular spacings
    4
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,262 0,275 10,395 272,480
Width (m) 0,070 0,080 0,315 0,800
Length (m) 0,083 0,075 0,235 1,086
Depth (m) 0,076 0,095 0,365 1,200
