Universal programmable timer 1-channel 16A 24–264V AC/DC NFC PCZ-528.4

Name: Universal programmable timer 1-channel 16A 24–264V AC/DC NFC
Brand: F&F
SKU: APC056FIFQ
Price: 529.59 PLN
Availability: InStock

Indice locale:

APC056FIFQ

Numero di catalogo:

PCZ-528.4

Codice EAN:

5902431678009

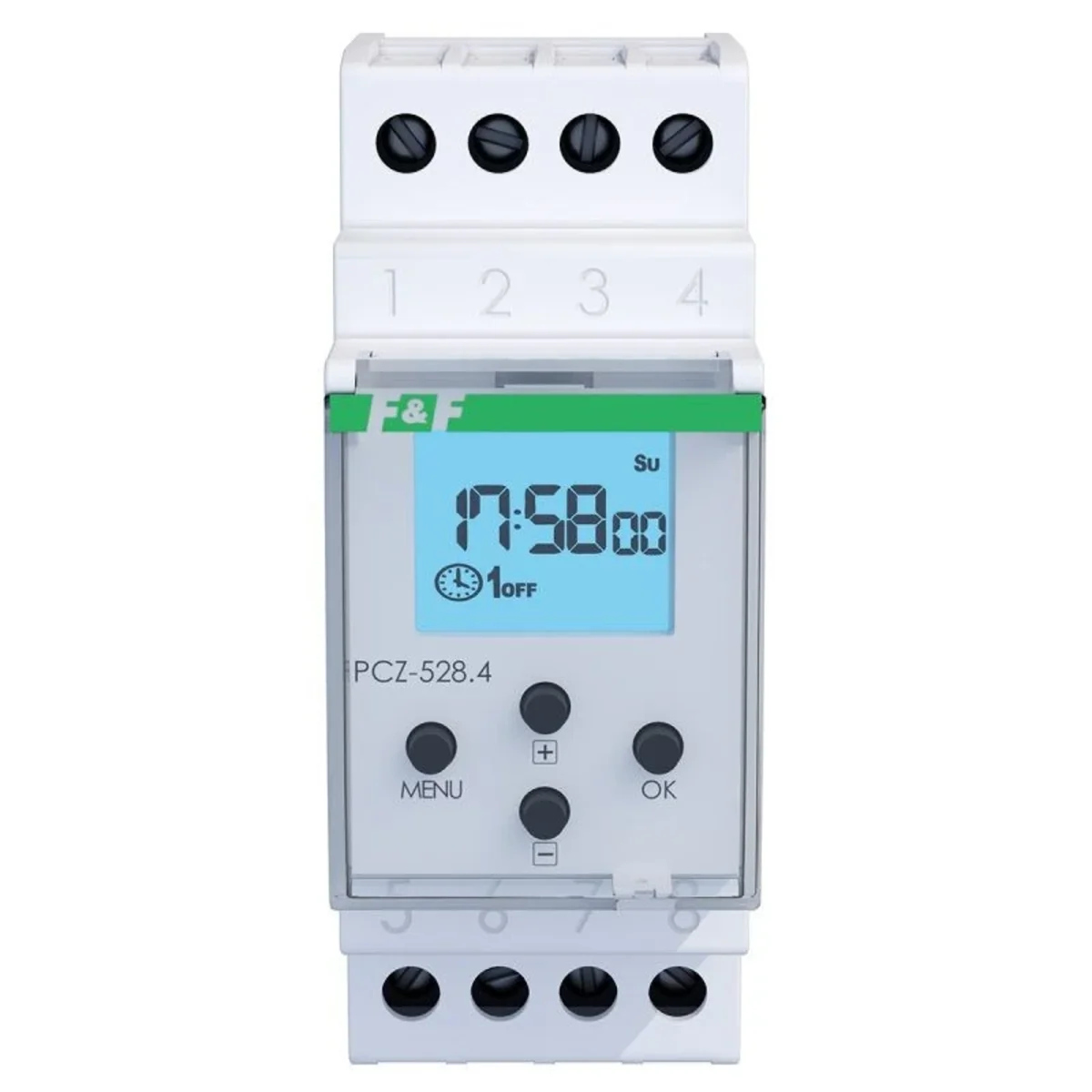

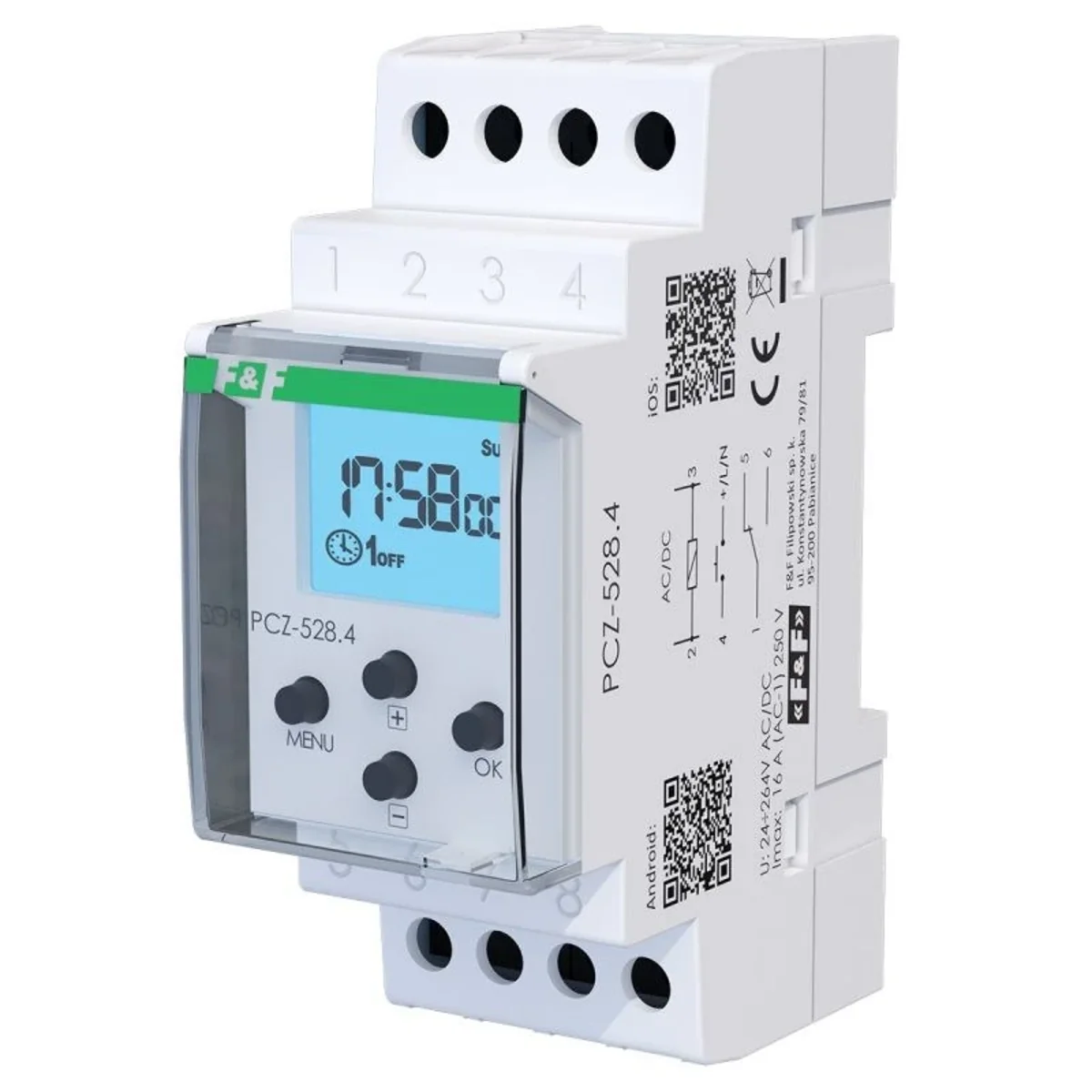

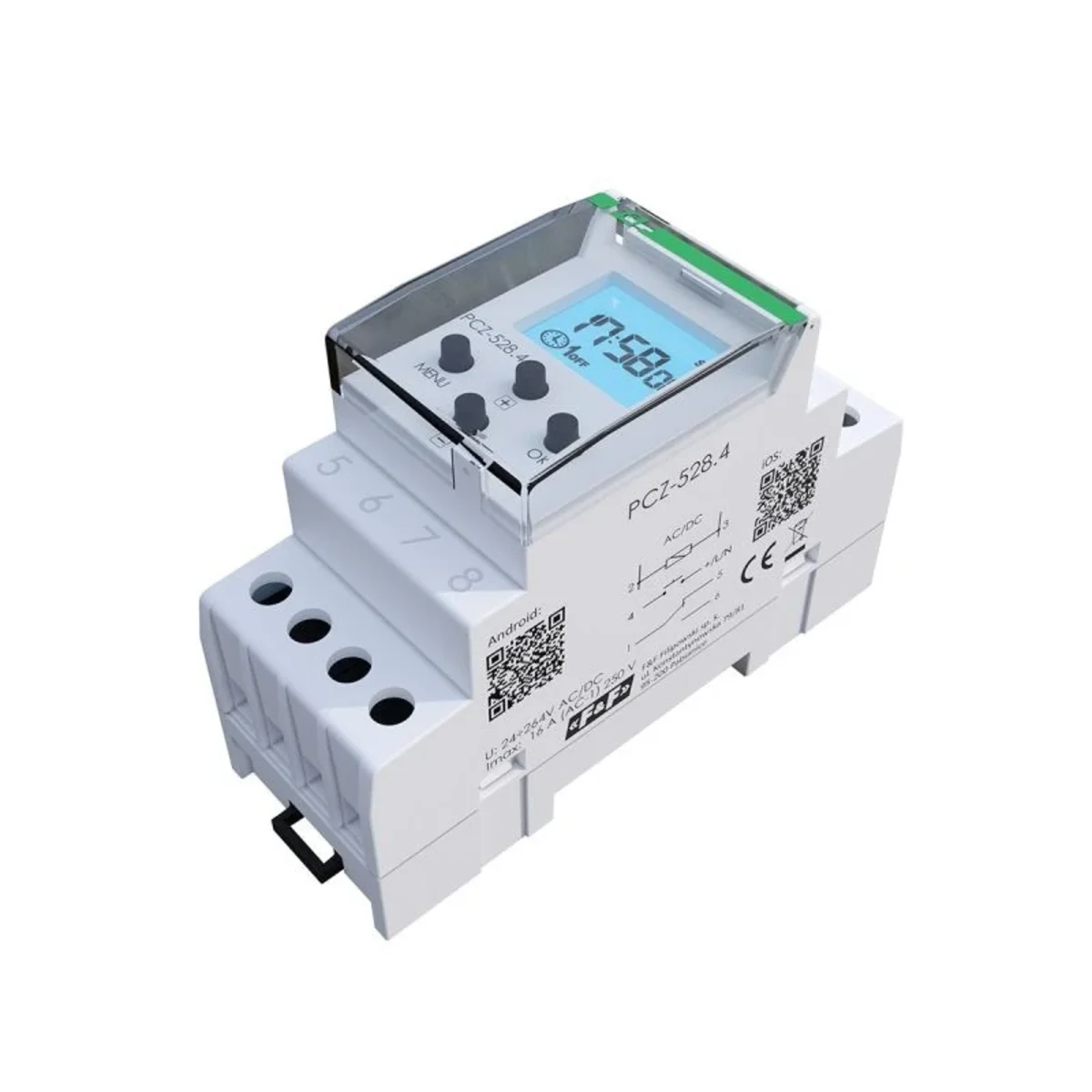

Universal programmable timer 1-channel 16A 24–264V AC/DC NFC

Clicca sulla foto per ingrandire

Produttore: F&F

Time error: ±1s/24h

Clock back-up time: 6 years

Indication accuracy: 1 sec

Vedi la descrizione completa

Prezzo:

529,59 zł

gross / pezzi

(inclusa IVA 23%)

Accessibile 4 pezzi

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore File da scaricare

Descrizione del prodotto

The PCZ-528.4 timer is a universal programmable timer. It combines the features of an astronomical, weekly, and yearly clock.

Dati tecnici

Time error

±1s/24h
Indication accuracy

1 sec
Maximum load current [A]

16
Tightening torque [Nm]

0.5
Voltage [V]

24-264
connection

screw terminals 4.0 mm²
Level of security

IP20
Dimensions

2 modules (35mm)
Voltage type

AC/DC

Clock back-up time

6 years
Number of channels

1
Maximum operating temperature [°C]

50
Installation

on a 35 mm rail
Power consumption [W]

1.5
Family

PCZ
Type

universal
Minimum operating temperature [°C]

-20
Battery type

2032 (lithium)

Altri dati tecnici

Mounting method

DIN rail
Supply voltage

24 ... 265 V
Autonomy in hours

0
Accuracy per day

1 s
External programming

Yes
60 min program

Yes
Weekly program

Yes
Holiday program

Yes
Cycle program

Yes
Random program

No
Mains synchronous

No
Radio-controlled

No
GPS (global positioning system)

No
Number of contacts

1
Shortest switching time channel 2

0 min
Automatic switching summer-/winter time

Yes
External pushbutton input

Yes
Nominal switching current at 250 V AC

16 A
Potential free switch contact

Yes
Width in number of modular spacings

2
Height

90 mm

Number of channels

1
Voltage type (supply voltage)

AC/DC
Autonomy in years

6
Text guidance in display

No
With memory card

No
24 h program

Yes
Annual program

Yes
Impulse program

No
Astro program

Yes
Hour meter

Yes
Quartz controlled

Yes
Radio-controlled (DCF77)

No
Contact type

Change-over contact (NO/NC)
Shortest switching time channel 1

1.00000008 min
Number of memory locations

250
Suitable for manual operation

Yes
Switching preselection

No
Max. switching power LED

250 W
Degree of protection (IP)

IP20
Width

35 mm
Depth

65 mm

Dettagli del produttore

Produttore

F&F Filipowski S.K.
Indirizzo

95-200 Pabianice Konstantynowska 79/81 Polska
Email

biuro@fif.com.pl

File da scaricare

Karta-katalogowa.pdf
