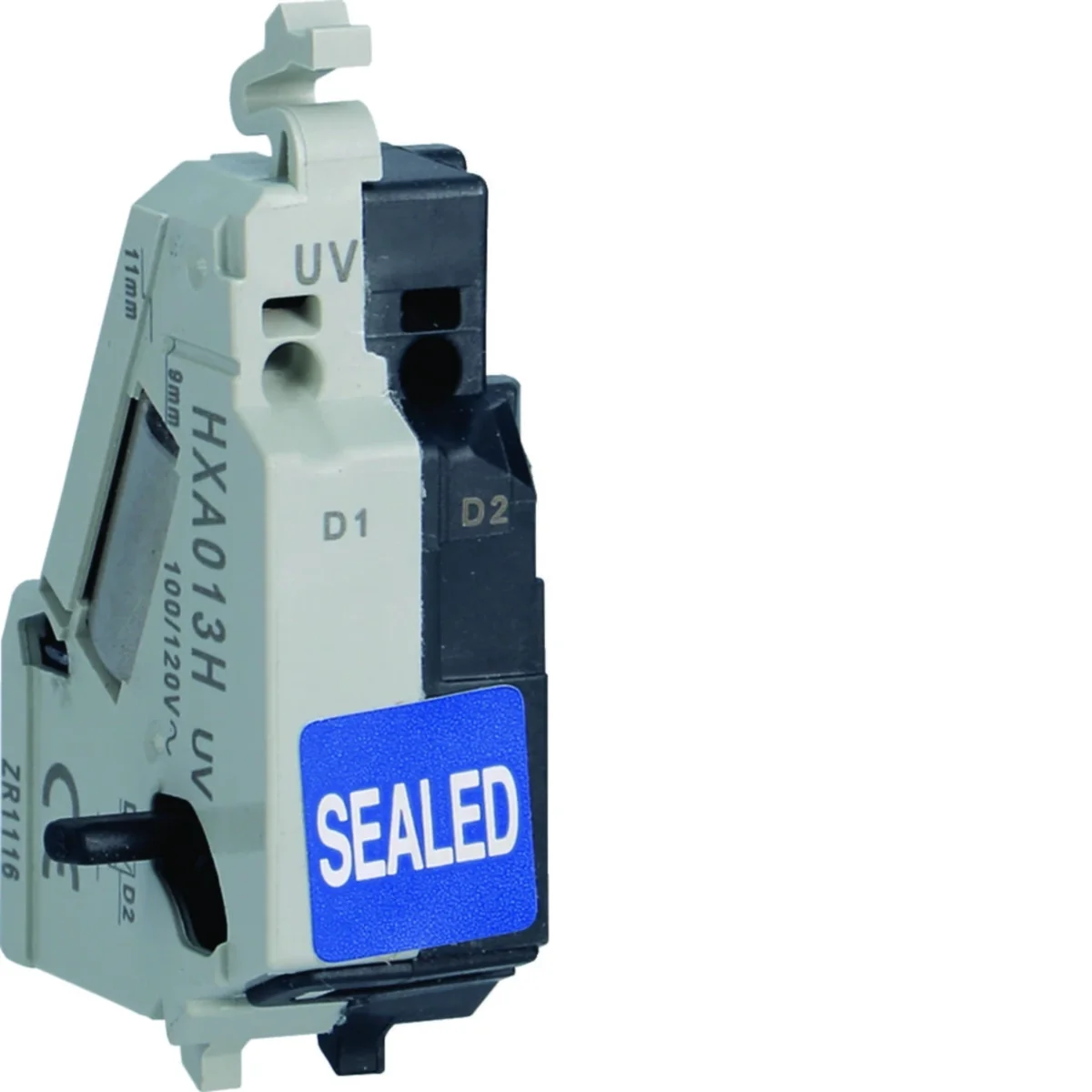

Undervoltage release x160-x250 100-120VAC HXA013H

local index:
ALA161HAGE
Catalog No:
HXA013H
EAN code:
3250613346386
Manufacturer: HAGER
Maximum input power [VA]: 1.4
Level of security: IP4X
power loss [W]: 1.4
Price:
75,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Undervoltage release:

  • size: x160-x250
  • rated operational voltage Ue (AC): 100-120V

Technical data

  • Maximum input power [VA]
    1.4
  • power loss [W]
    1.4
  • Rated switching voltage [V]
    110/120
  • Level of security
    IP4X
  • Connection type
    Quick Connect
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 120 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Type of electric connection
    Spring clamp connection
  • Number of contacts as normally closed contact
    0
  • Delayed
    No
  • Suitable for off-load switch
    Yes
  • Suitable for overload relay
    No
  • Rated control supply voltage AC 60 Hz
    110 ... 120 V
  • Voltage type for actuating
    AC
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Suitable for power circuit breaker
    Yes
  • Suitable for motor safety switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,076 0,080 3,840 92,160
Width (m) 0,030 0,075 0,323 0,800
Length (m) 0,035 0,040 0,219 1,106
Depth (m) 0,065 0,090 0,374 1,200
