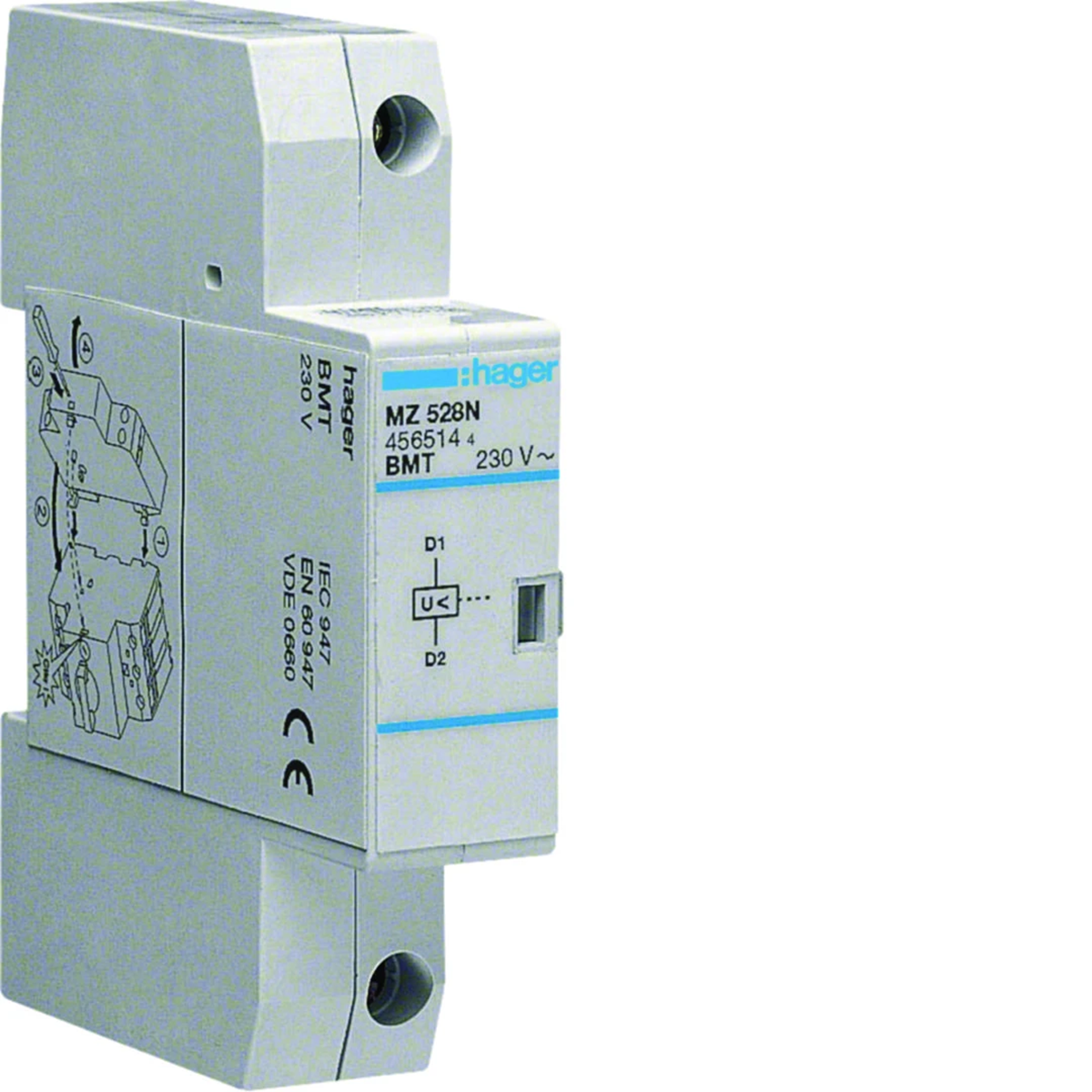

Undervoltage release, 230V MZ528N
local index:
ALA141HAGE
Catalog No:
MZ528N
EAN code:
3250614565144
Price:
45,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Undervoltage release 230V, storage temperature: -25 to 80 °C, number of wires - stranded: 2.5mm², number of wires - solid: 2.5mm².
Technical data
-
Rated frequency [Hz]50
-
Rated insulation voltage [V]6
-
Width [mm]17.5
-
Number of modules1
-
PKWIU27.33.11.0
-
Depth [mm]68
-
power loss [W]0.5
-
Working temperature [°C]-25 to 55
-
AC rated voltage [V]230
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Type of electric connectionScrew connection
-
Number of contacts as normally closed contact0
-
DelayedNo
-
Suitable for off-load switchNo
-
Suitable for overload relayNo
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Number of contacts as normally open contact0
-
Number of contacts as change-over contact0
-
Suitable for power circuit breakerNo
-
Suitable for motor safety switchNo
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 60 pcs. | 1440 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,090 | 5,400 | 129,600 | 0,090 | 5,400 | 129,600 |
| Width (m) | 0,080 | 0,310 | 0,800 | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,040 | 0,210 | 1,050 | 0,040 | 0,210 | 1,050 |
| Depth (m) | 0,100 | 0,360 | 1,200 | 0,100 | 0,360 | 1,200 |
