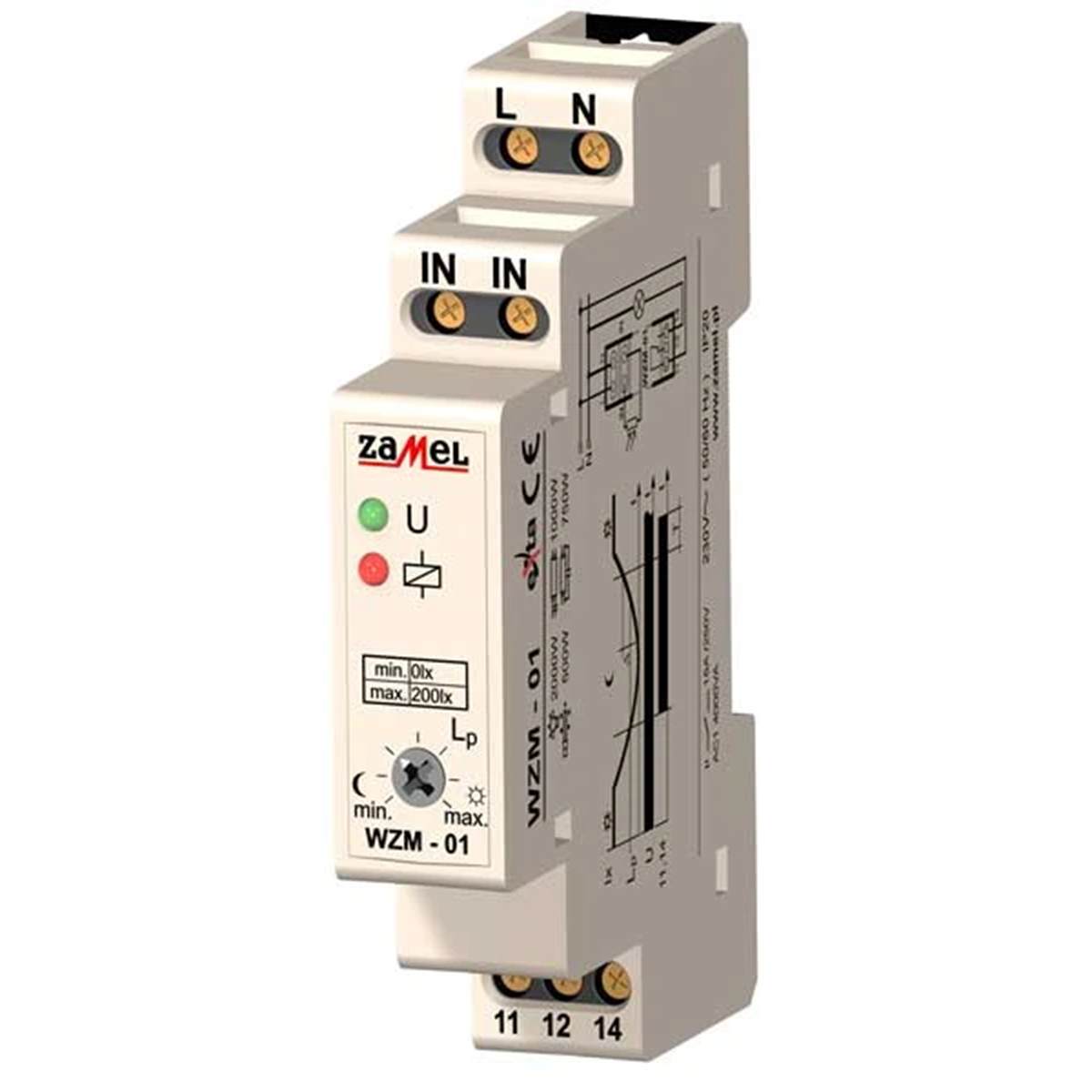

Twilight switch with probe SOS-01 230V AC TYPE: wzm-01/sos EXT10000143

local index:
APF004ZAME
Catalog No:
EXT10000143
EAN code:
5903669019893
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
30,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The twilight switch WZM-01/SOS is used to control lighting devices or other energy receivers depending on the lighting intensity. The system turns the lights on at dusk and off at dawn. The activation threshold can be smoothly set by the user. The system is resistant to short-term changes in light intensity, which guarantees operational reliability. The external light intensity probe SOS-01 (included) transmits the signal to the twilight switch WZM-01. The probe connection cable with a maximum length of 50 m allows it to be placed in convenient places

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Height [mm]
    90
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Contact
    1NO
  • Type
    Circuit breakers
  • PKWIU
    27.12.40.0
