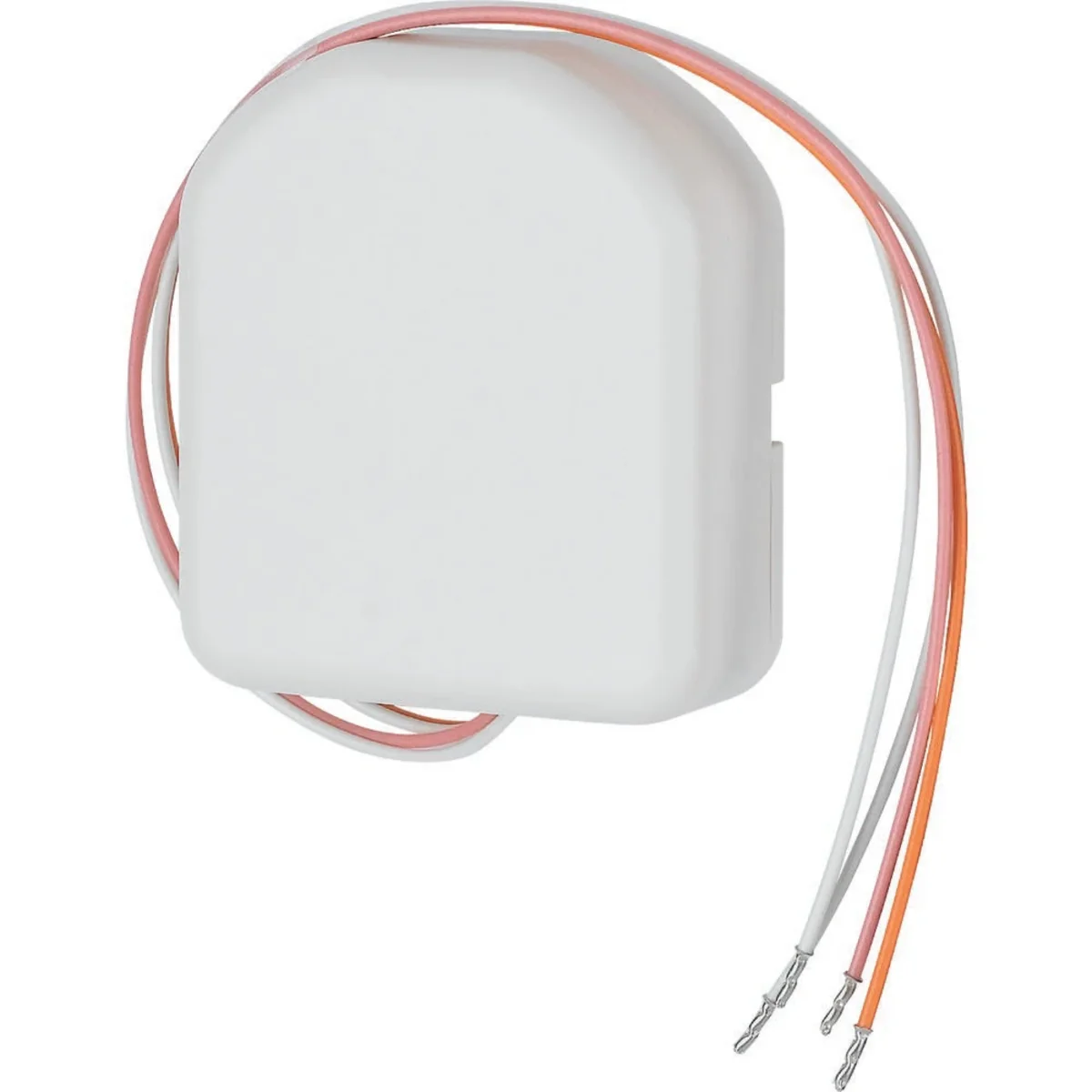

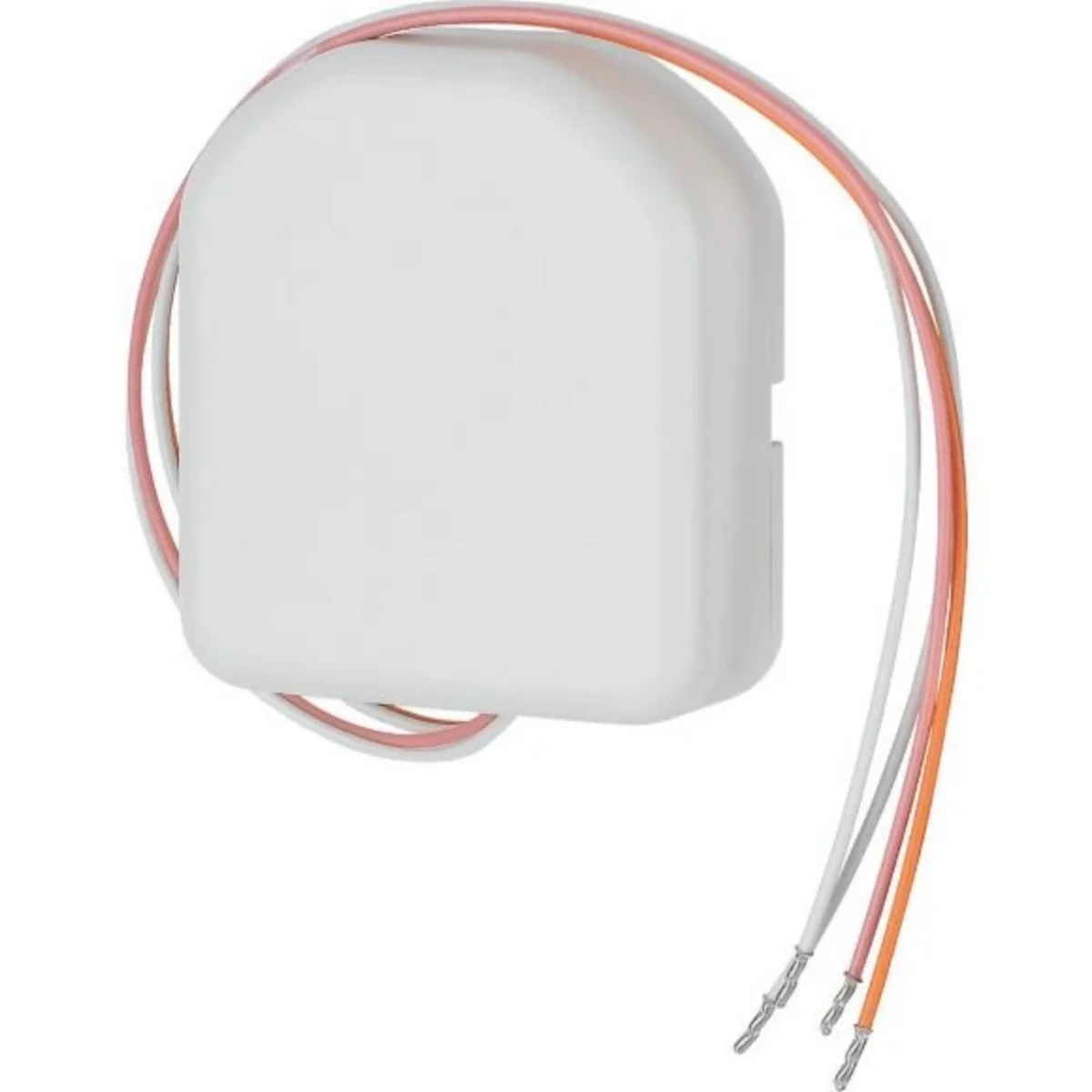

Transmitter with binary input 2xwireless, CBEU-02/02 265627

Name: Transmitter with binary input 2xwireless, CBEU-02/02
Brand: EATON
SKU: APS001MOEL
Price: 238.60 PLN

local index:

APS001MOEL

Catalog No:

265627

EAN code:

4015082656270

Transmitter with binary input 2xwireless, CBEU-02/02

Click on the photo to enlarge

Manufacturer: EATON

Frequency [MHz]: 868.3

See full description

Price:

238,60 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

• You can connect a traditional button/switch to it by converting it into a radio one. The CBEU-02/01 type is powered from the mains, while the CBEU-02/02 is powered by a CR2477N battery (large coin). It can be mounted in a standard box or other device housing.

Technical data

Frequency [MHz]

868.3

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

Yes
Width in number of modular spacings

3
Bus module detachable

No
With LED indication

No
Input voltage

0 ... 0 V
External signal voltage necessary

No
Min. depth of built-in installation box

19 mm

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

xComfort
Mounting method

Flush-mounted
With bus connection

Yes
LED controlling

No
Number of inputs

2
Type of voltage (input voltage)

AC
Degree of protection (IP)

IP20

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	60 pcs.
Weight (kg)	0,065	3,900
Volume (m3)	0,000	0,016
Width (m)	0,085	0,180
Length (m)	0,075	0,385
Depth (m)	0,035	0,230
