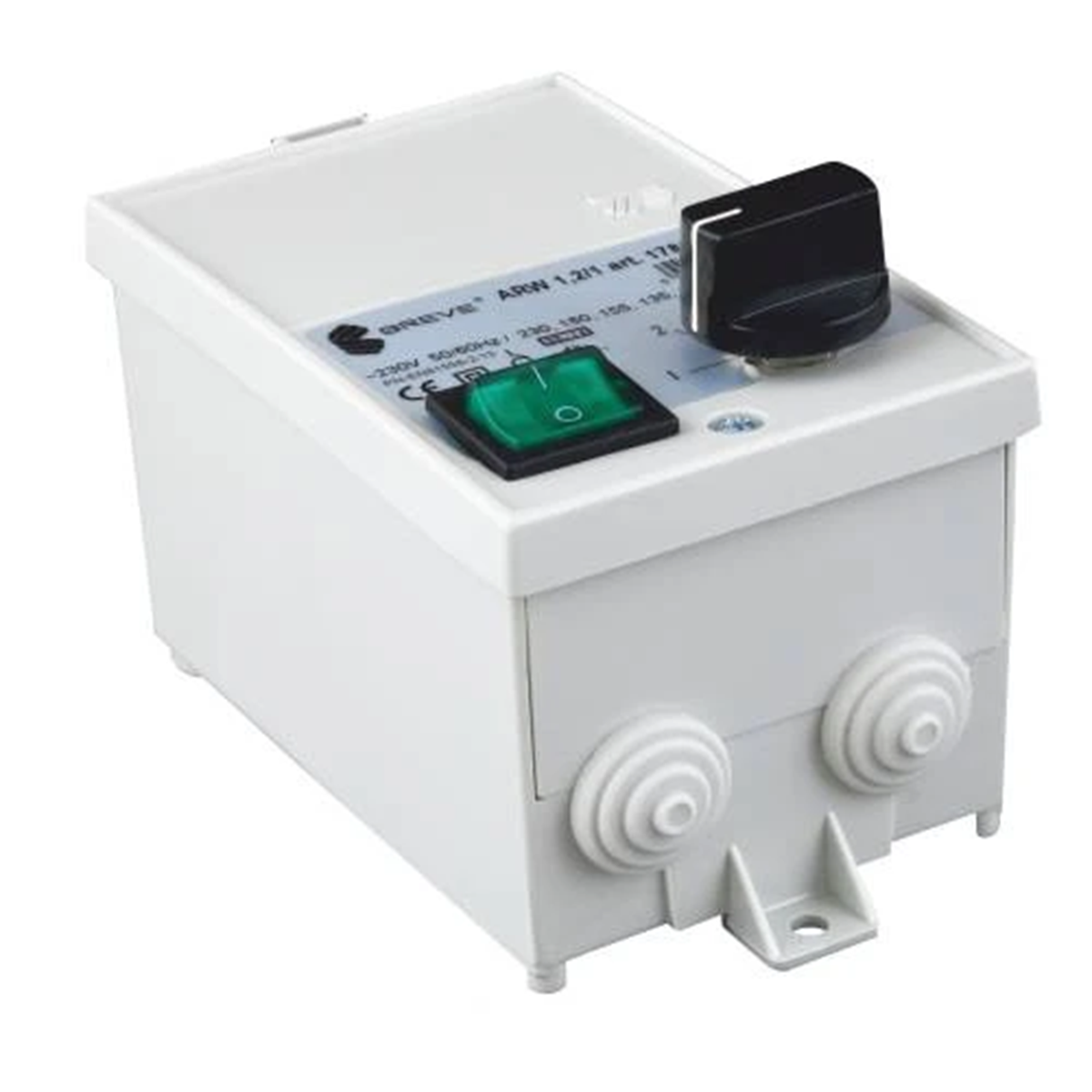

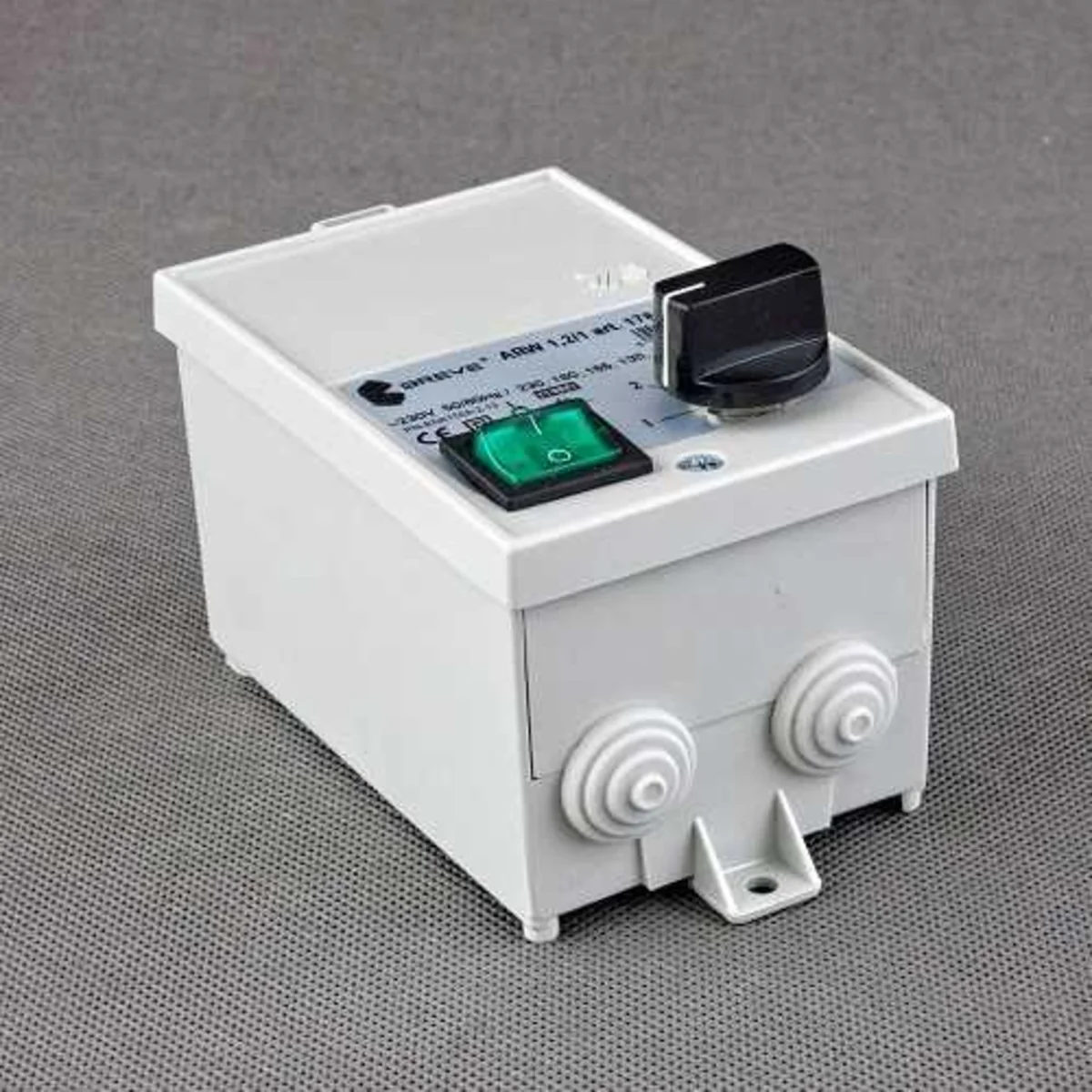

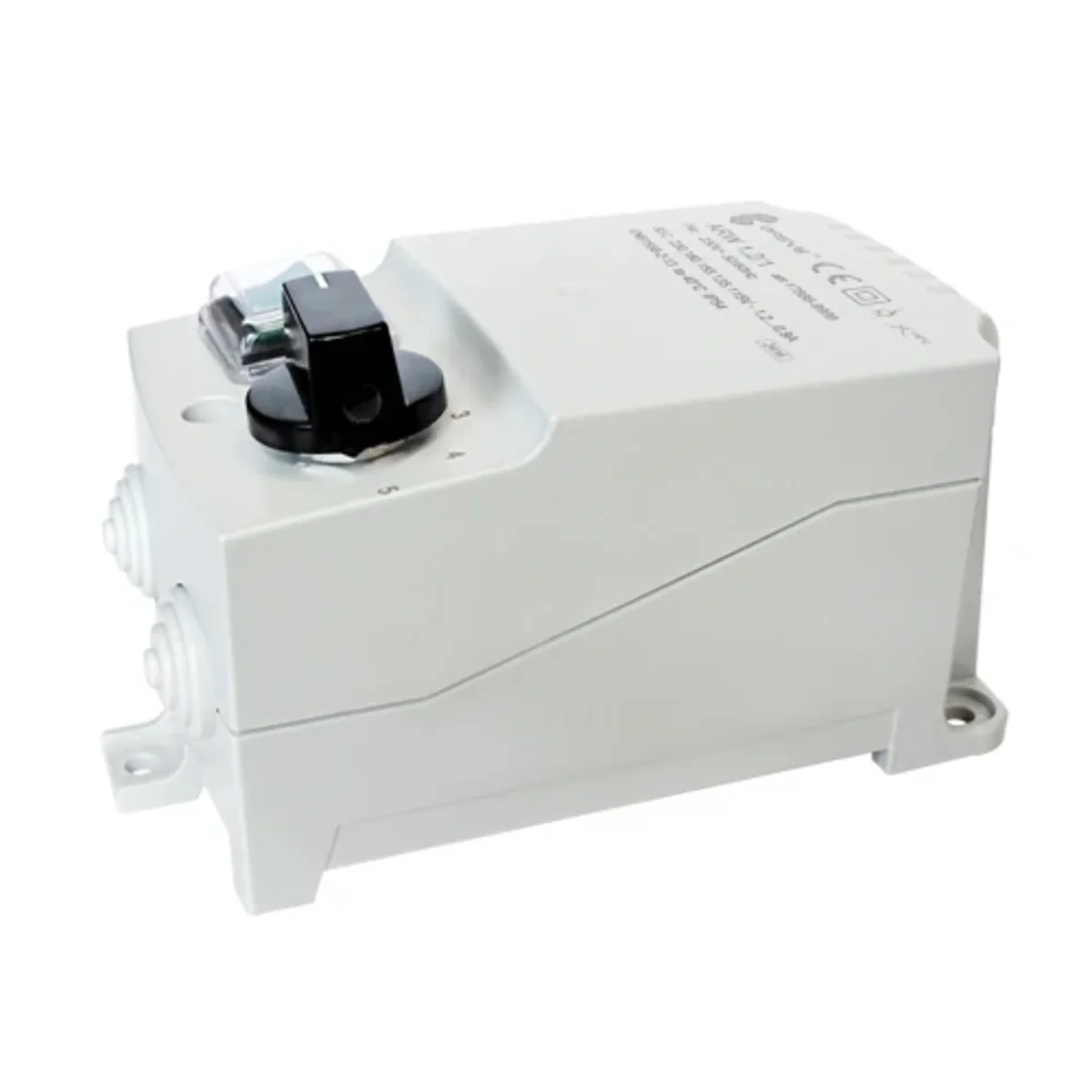

Click on the photo to enlarge

BREVE

Transformer fan speed controller ARW 1.2 17886-9999

local index:
APT005BREV
Catalog No:
17886-9999
EAN code:
5907812711429
Price:
82,02 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Transformer ARW controllers for speed control of single-phase fan motors, voltage-controlled. Installed in industrial ventilation or heating systems. The knob placed on the housing panel is used to adjust the rotational speed in five steps. Equipped with an independent switch indicating activation with a backlight.

Execution in class II insulation. Degree of protection IP30 or IP54.
Maximum ambient temperature 40°C. Insulation thermal class
B (130°C). Manufactured in accordance with EN 61558-2-13.

Technical data

  • Depth [mm]
    71
  • Primary voltage [V]
    230
  • Rated current [A]
    1.2
  • Width [mm]
    77
  • Output current [A]
    1.2
  • Primary winding [V]
    230
  • Mounting thread
    M4
  • Maximum ambient temperature [°C]
    40
  • Rated voltage [V]
    230
  • Mounting method
    For screws
  • Height [mm]
    138
  • Current [A]
    1.2
  • Secondary winding [V]
    5-step adjustment

Other technical data

  • Number of phases
    1
  • Number of steps
    5
  • Illumination
    Illuminated (on)
  • Height
    138 mm
  • Depth
    71 mm
  • Power control stepless
    no
  • Method of operation
    Turn/push button
  • Switching contact
    no
  • Width
    77 mm
  • Degree of protection (IP)
    IP54
