Transformer fan speed controller ARW 0.5/1 230 -170- 110V 17886-9962

Index local:
APT006BREV
Numéro de catalogue:
17886-9962
Code EAN:
5907812718787
Producteur: BREVE
number of phases: 1
Material: PC | ABS
Power [W]: 115
Bestsellers
Prix:
183,31 zł
gross / pcs.
(y compris la TVA 23%)
Prix le plus bas à partir de 30 jours avant la réduction: 166,64 zł gross
Prix du fabricant: 207,01 zł gross
Livraison en 3h
Accessible 2 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

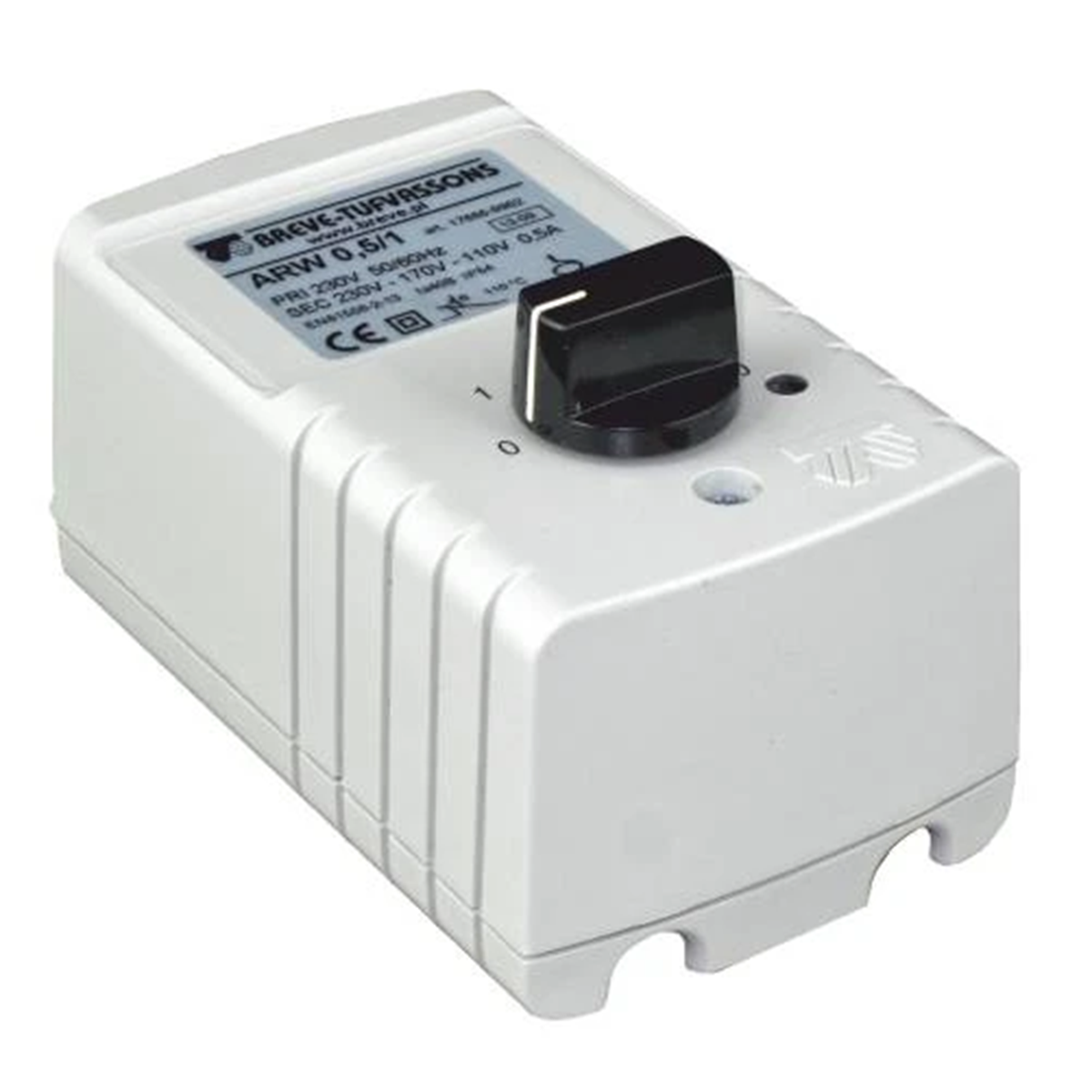

Transformer ARW controllers for speed control of single-phase fan motors, voltage-controlled. Installed in industrial ventilation or heating systems. The knob placed on the housing panel is used to adjust the rotational speed in five steps. Equipped with an independent switch indicating activation with a backlight.

Execution in class II insulation. Degree of protection IP30 or IP54.
Maximum ambient temperature 40°C. Insulation thermal class
B (130°C). Manufactured in accordance with EN 61558-2-13.

Données techniques

  • number of phases
    1
  • Power [W]
    115
  • Installation
    Surface-mounted
  • Rated current [A]
    0.5
  • Control
    Manual
  • Weight [kg]
    0.7
  • Type of regulation
    3-step
  • PKWIU
    27.11.42.0
  • Material
    PC ABS
  • Fixing
    M4
  • Rated voltage [V]
    230
  • Family
    ARW
  • Level of security
    IP54
  • Dimensions [mm]
    70x126x77
  • Insulation class
    b

Détails du fabricant

  • Producteur
    BREVE-TUFVASSONS Sp. z o.o.
  • Adresse
    93-347 Łódź Postępowa 25/27 Polska

Emballage en vrac

Une sorte de paquet Paczka Karton
Quantité 1 pcs. 1 pcs. 10 pcs.
poids (kg) 0,700 - 7,200
Largeur (m) 0,070 0,135 0,370
Longueur (m) 0,077 0,078 0,100
Profondeur (m) 0,126 0,078 0,290
