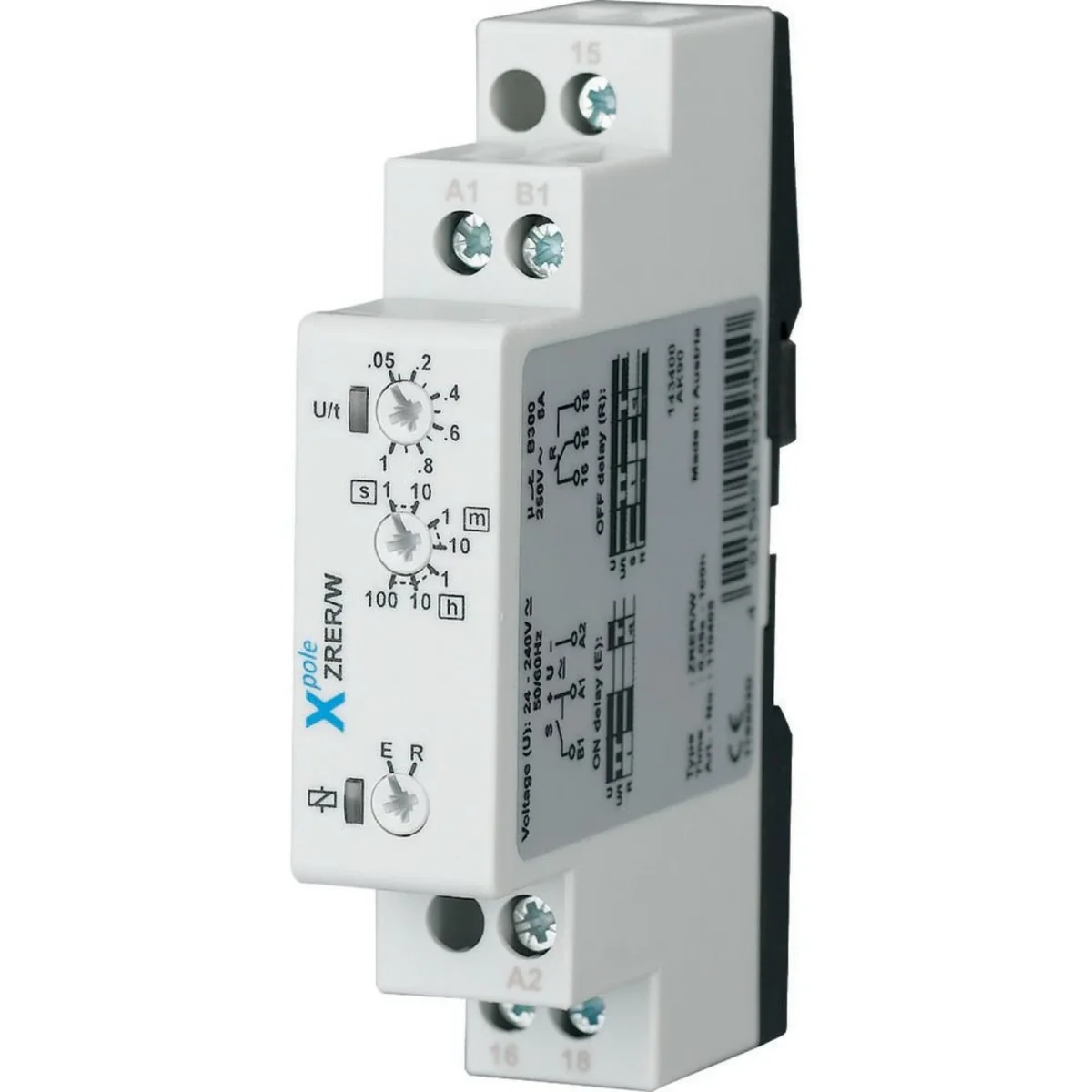

Time relay, ZRER/W 110405
local index:
APE010MOEL
Catalog No:
110405
EAN code:
4015081099450
Manufacturer:
EATON
Type of control voltage: AC/DC
Price:
109,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Time relay ZRER/W, 1 drive
E delayed on
R delayed off
E delayed on
R delayed off
Technical data
-
Type of control voltageAC/DC
-
PKWIU27.12.40.0
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationNo
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Time range0.05 ... 360000 s
-
Number of outputs, undelayed, normally open contact0
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact1
-
With semiconductor outputNo
-
Suitable for front mountingYes
-
Height87 mm
-
Function delay-on energizationYes
-
Function floating contact on energizationNo
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableNo
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 240 V
-
Nominal current8 A
-
Number of outputs, undelayed, normally closed contact0
-
Number of outputs, undelayed, change-over contact0
-
Number of outputs, delayed, normally open contact0
-
Outputs, reversible delayed/undelayedNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Width17.5 mm
-
Depth65 mm
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,067 | 0,082 | 0,164 | 8,160 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,018 | 0,020 | 0,092 | 0,385 |
| Length (m) | 0,065 | 0,067 | 0,037 | 0,192 |
| Depth (m) | 0,087 | 0,089 | 0,075 | 0,230 |
