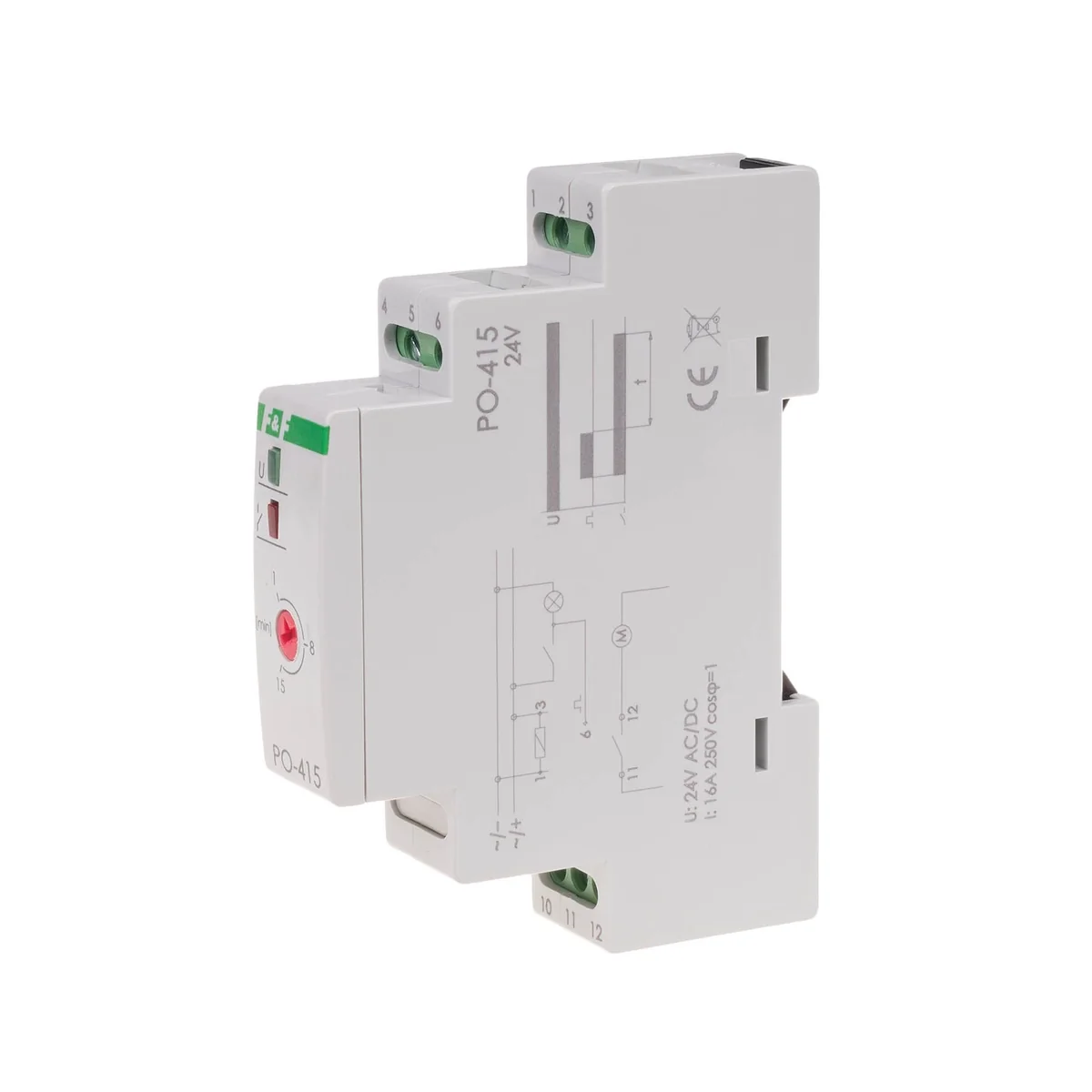

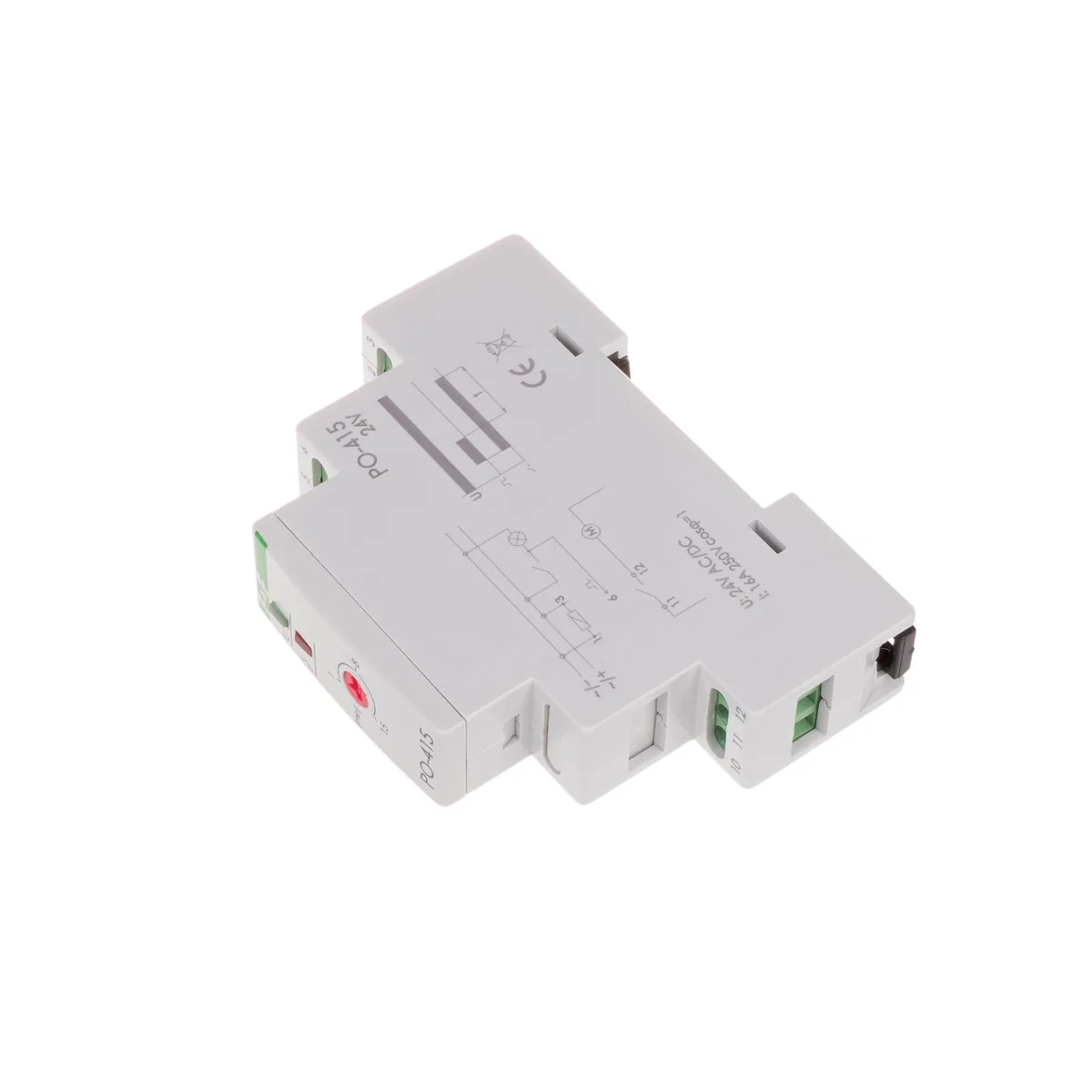

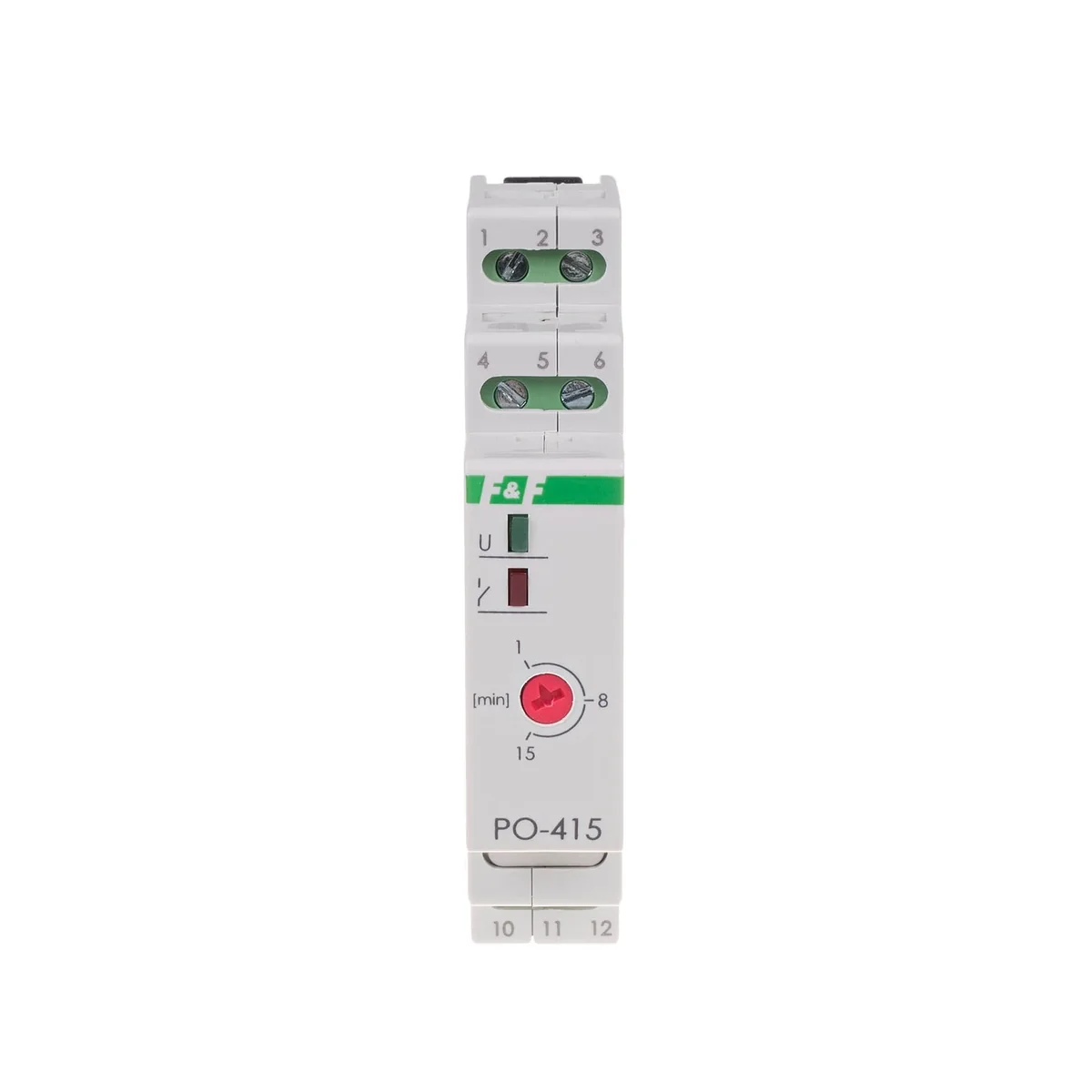

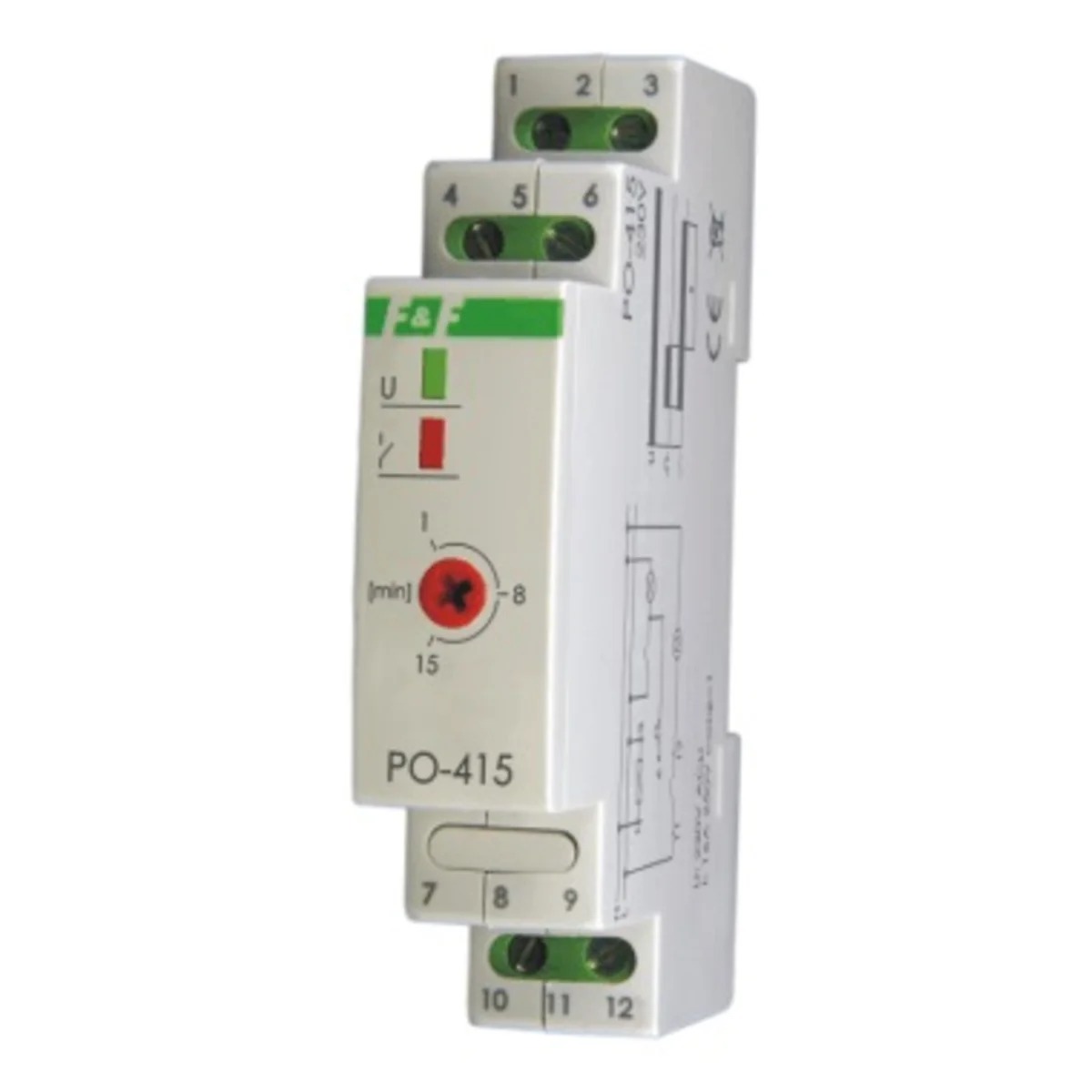

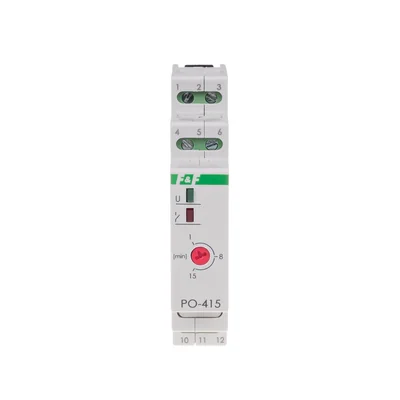

Time relay with off-delay, DIN rail mounting 24V T=1-60s. PO-415-1-60S

local index:
APC032FIFQ
Catalog No:
PO-415-1-60S
EAN code:
5908312590316
Manufacturer: F&F
Working temperature [°C]: -25÷50
Time setting range to [s]: "1-60
Price:
29,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay with fall-delay, mounted on a DIN rail.

Technical data

  • Working temperature [°C]
    -25÷50
  • PKWIU
    27.12.24.0
  • Time setting range to [s]
    "1-60

Other technical data

  • Type of electric connection
    Screw connection
  • Time range
    1 ... 60 s
  • With semiconductor output
    No
  • Height
    90 mm
  • Voltage type for actuating
    AC
  • Number of outputs, undelayed, normally open contact
    1
  • Width
    18 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,067
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
