Click on the photo to enlarge

F&F

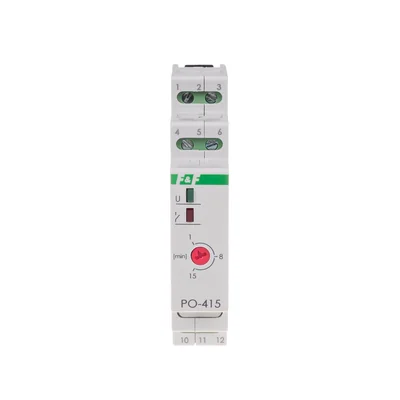

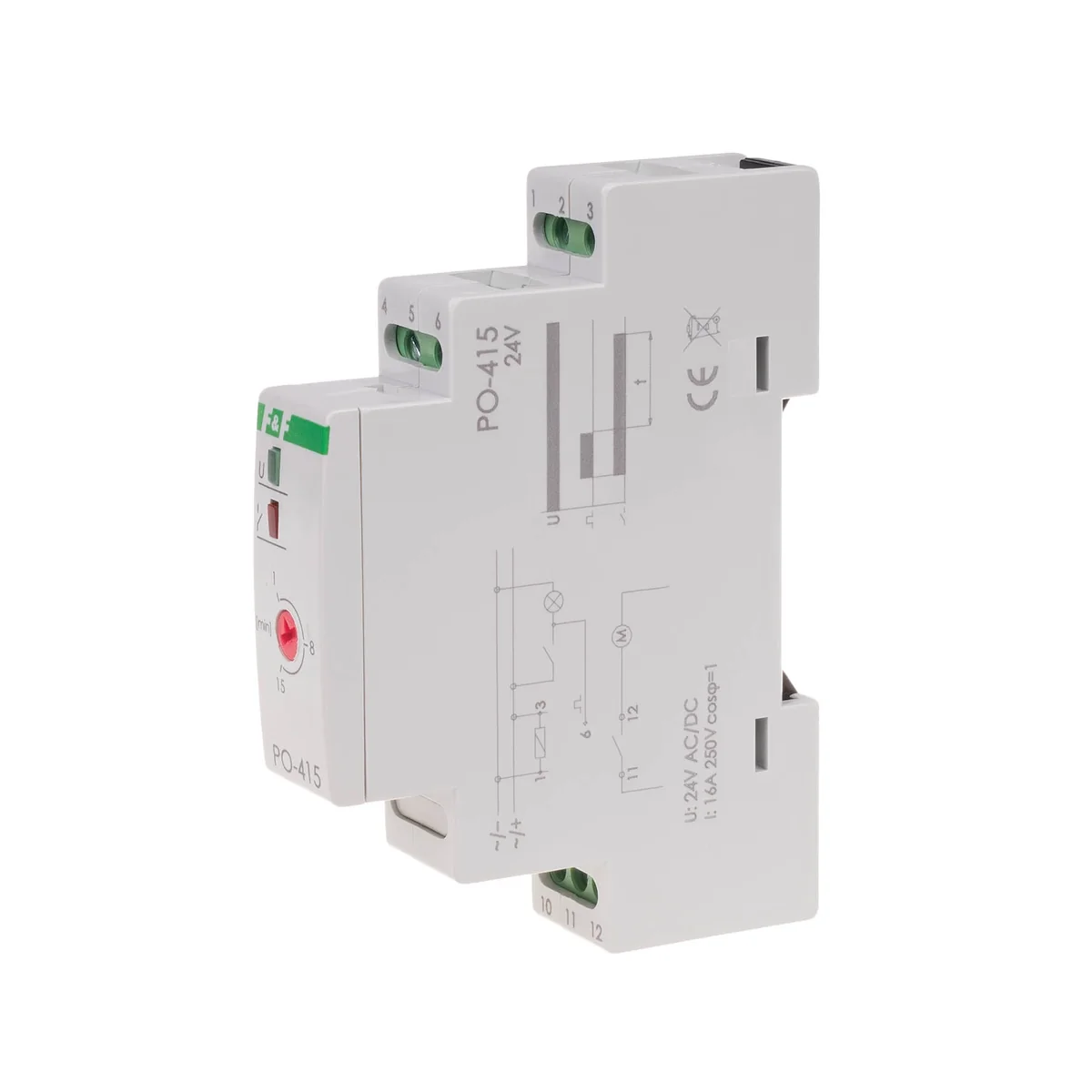

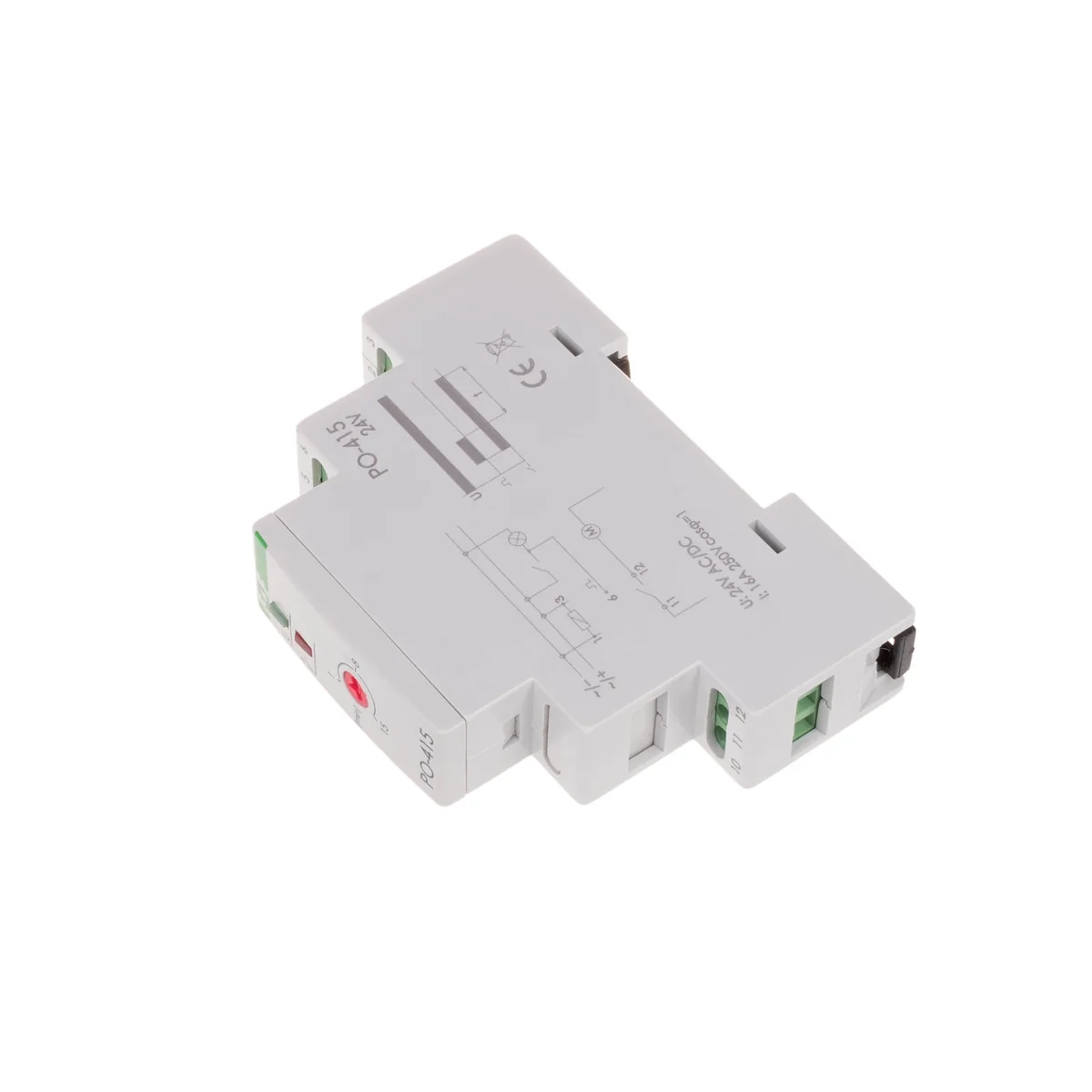

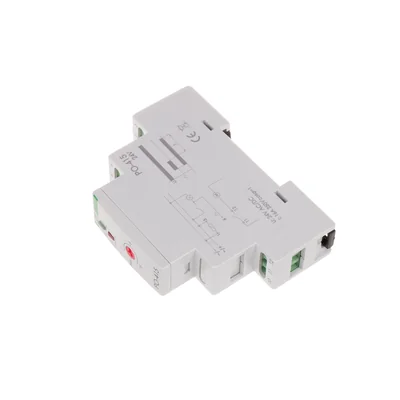

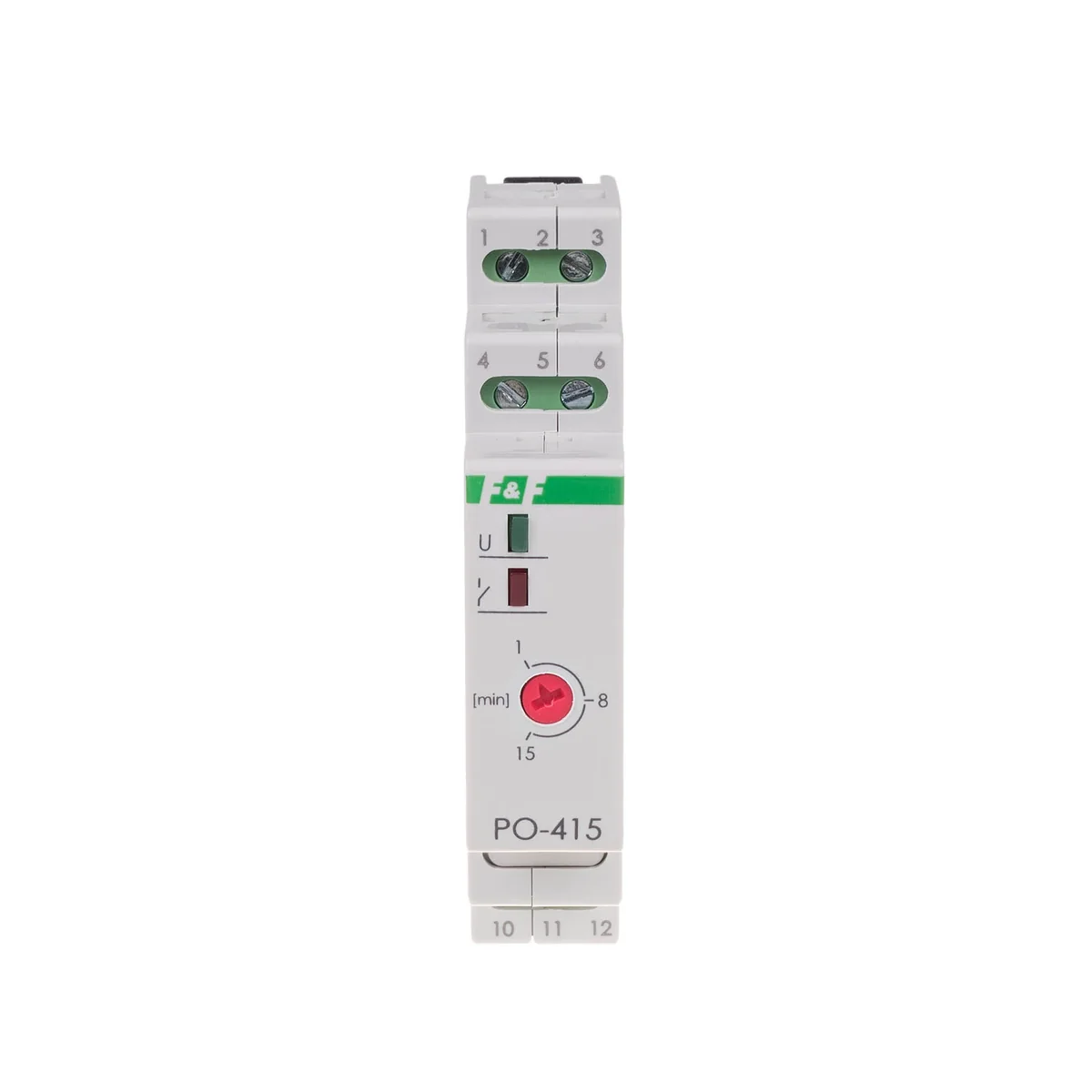

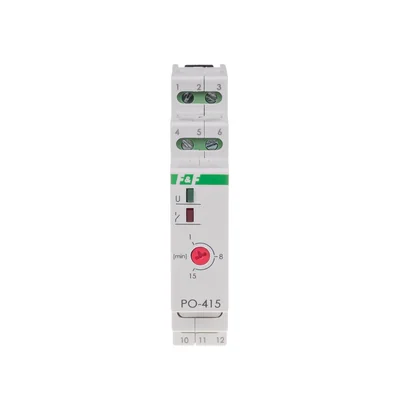

Time relay PO-415 24V PO-415-24V

local index:
APC192FIFQ
Catalog No:
PO-415-24V
EAN code:
5908312595595
Price:
22,57 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Intended use
Delayed off time relays are used to maintain the power supply of the controlled receiver for a specified time after the control voltage decay, e.g. in bathroom ventilation systems, where operation is maintained fan - switched on with the lighting - for a specific  time  after turning off the lighting.
Operation
Applying the control voltage S to the relay causes its activation and switching on the voltage on the controlled receiver. After the control voltage decays, the operation of the receiver is maintained by  hold-up time t (set by potentiometer). After time t, switching off the controlled receiver  will happen   automatically. If the control voltage S is re-applied before the set time elapses, the relay performs its operation function from the beginning.

Technical data

  • Backup time [min]
    1-15
  • Power [W]
    0.56
  • Control pulse current [mA]
    <300
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply PO-415 [V]
    24
  • Package width [mm]
    20
  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • load current [A]
    <10
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Power [V]
    24
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Type of electric connection
    Screw connection
  • Voltage type for actuating
    AC/DC
  • Number of outputs, undelayed, normally open contact
    1
  • Height
    90 mm
  • Z gniazdem wtykowym
    yes
  • Time range
    1 ... 15 s
  • Width
    18 mm
  • Depth
    65 mm
