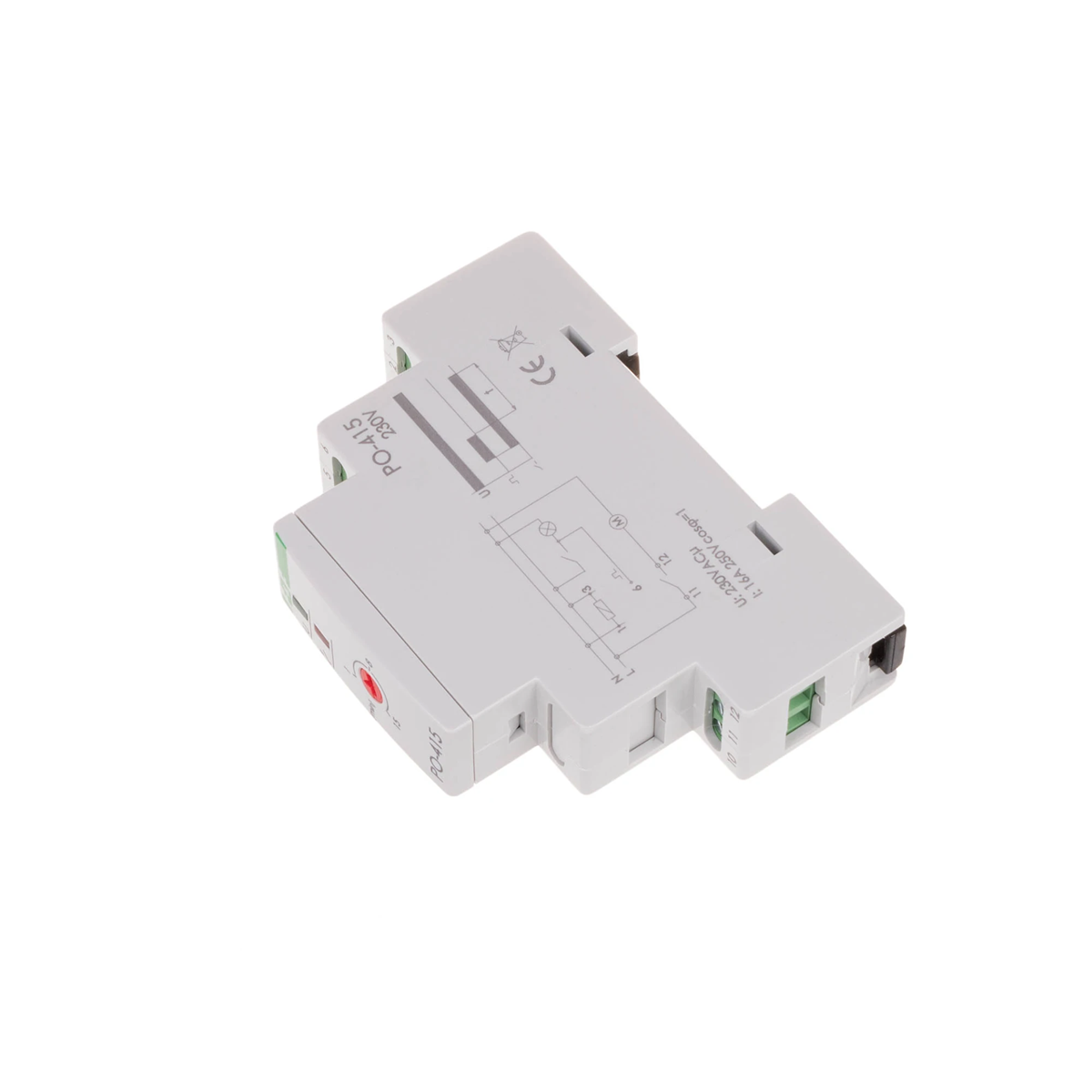

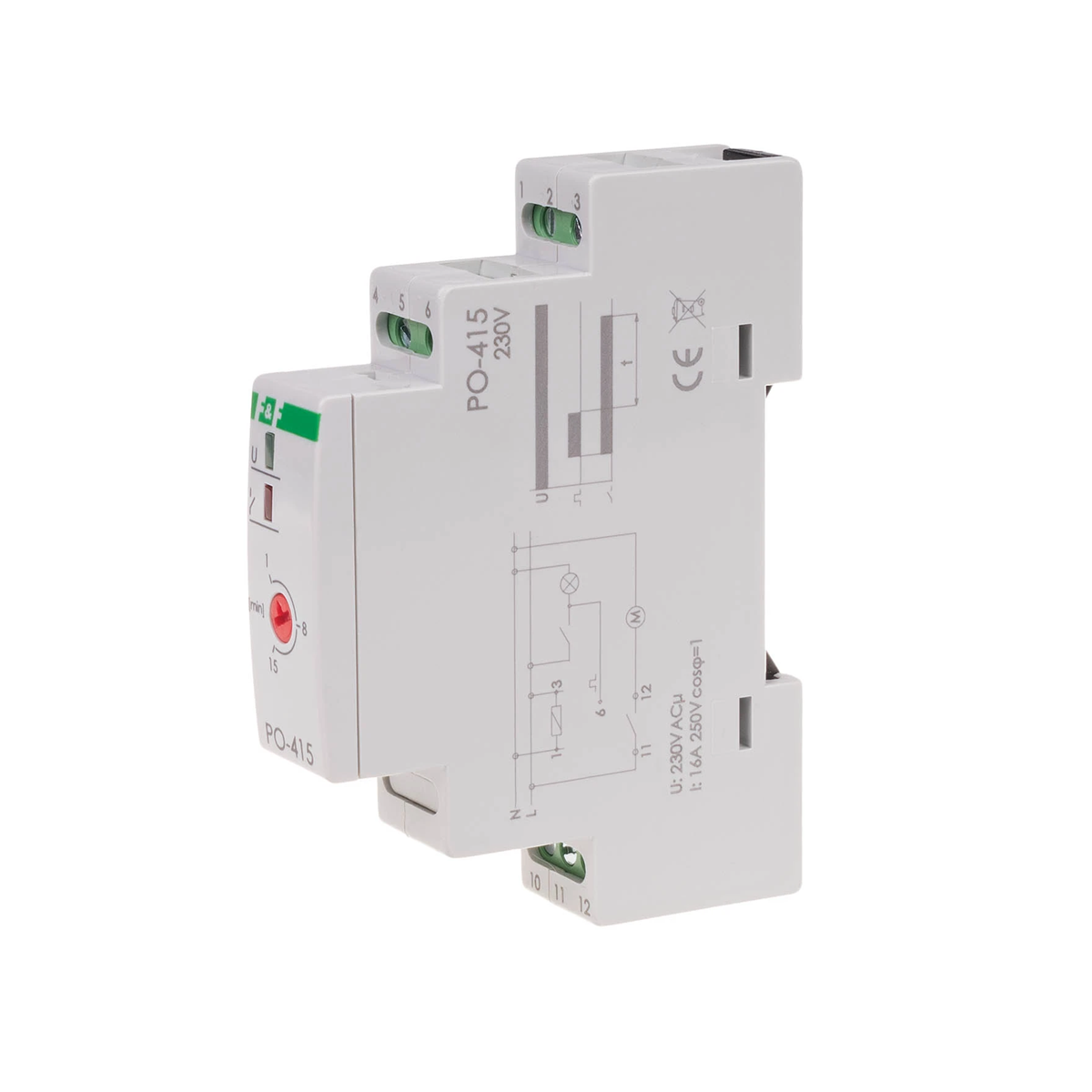

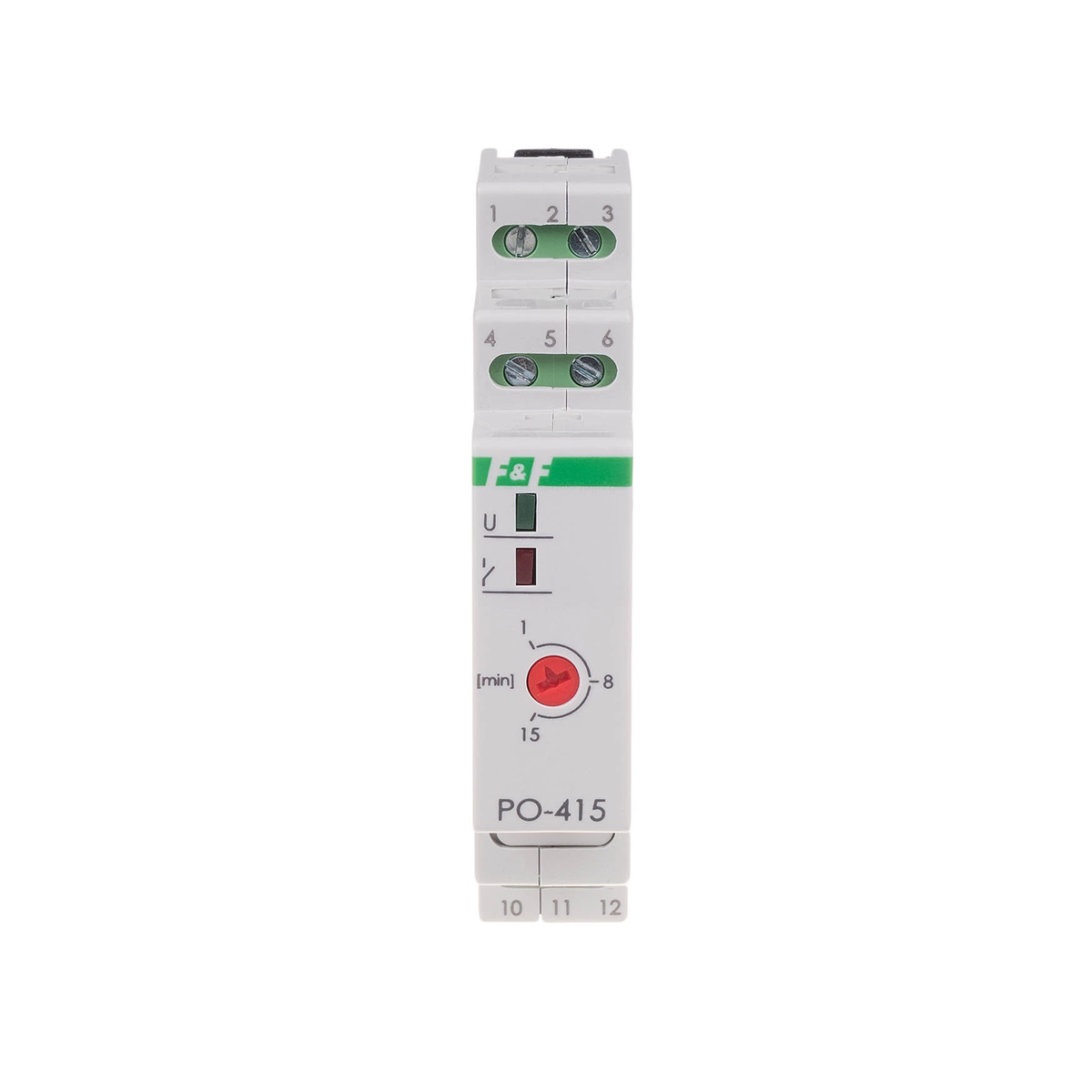

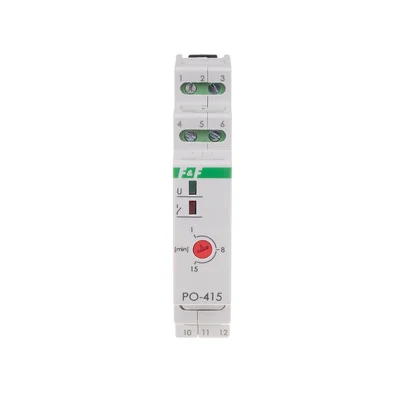

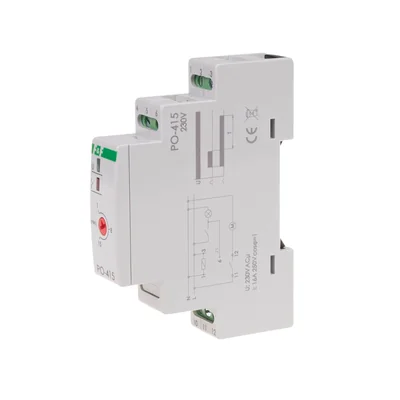

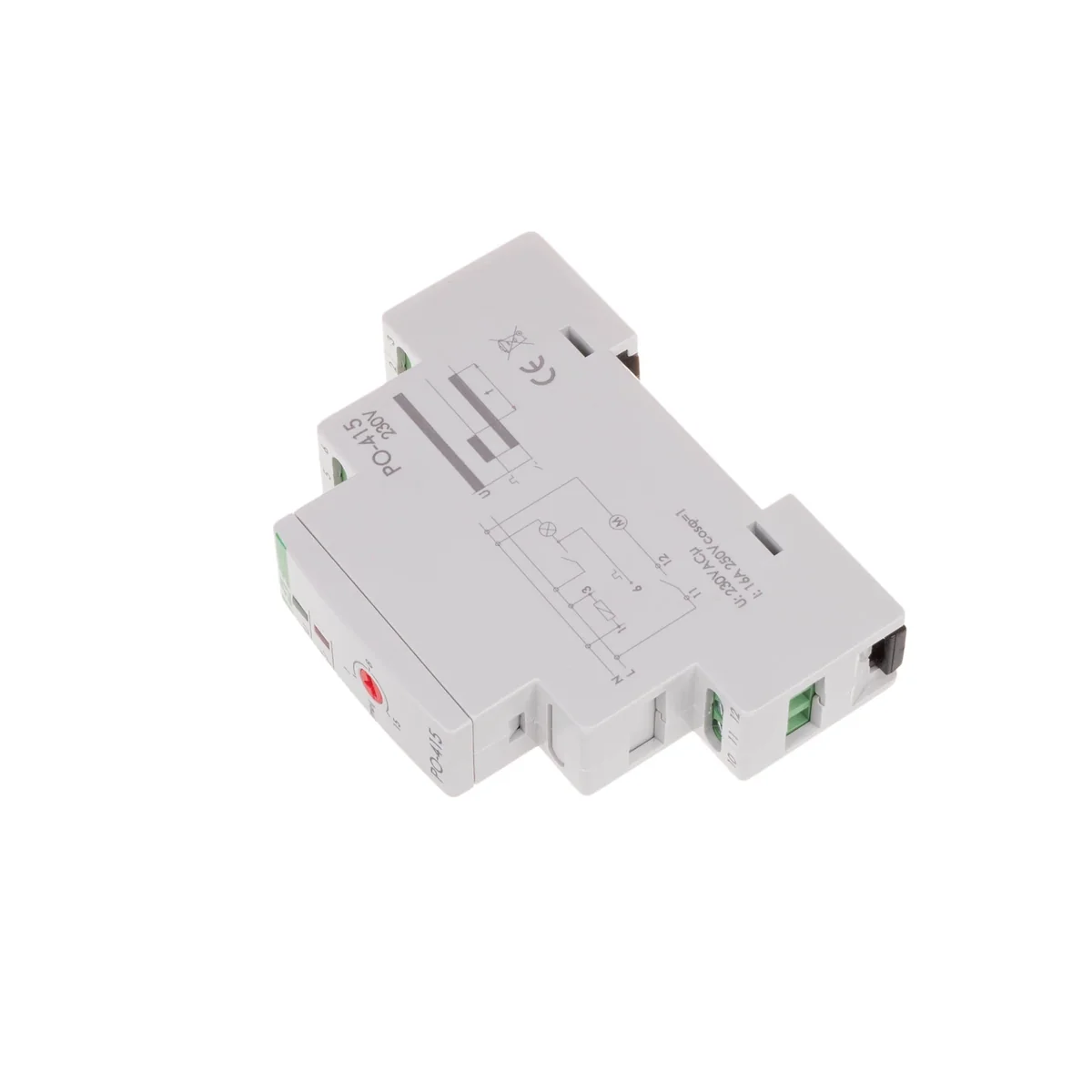

Time relay PO-415 230V PO-415

local index:
APC169FIFQ
Catalog No:
PO-415
EAN code:
5908312595458
Manufacturer: F&F
Backup time [min]: 1-15
Number of contacts: 0NO 0NC
Power [W]: 0.56
Price:
22,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
Delayed off time relays are used to maintain the power supply of the controlled receiver for a specified time after the control voltage decay, e.g. in bathroom ventilation systems, where operation is maintained fan - switched on with the lighting - for a specific  time  after turning off the same lighting.
Operation
Applying the control voltage S to the relay causes its activation and switching on the voltage on the controlled receiver. After the control voltage decays, the operation of the receiver is maintained by  hold-up time t (set by potentiometer). After time t, switching off the controlled receiver  will happen   automatically. If the control voltage S is applied again before the set time expires, the relay performs its operation function from the beginning.

Technical data

  • Backup time [min]
    1-15
  • Power [W]
    0.56
  • Rated voltage [V]
    230
  • load current [A]
    2x8
  • Trigger indication
    red LED
  • Working temperature [°C]
    -25-50
  • Power [V]
    230
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Control pulse current [mA]
    <300
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power supply PO-415 [V]
    230
  • Package width [mm]
    20
  • PKWIU
    27.12.24.0

Other technical data

  • Type of electric connection
    Screw connection
  • Time range
    1 ... 15 s
  • Voltage type for actuating
    AC
  • Number of outputs, undelayed, normally open contact
    1

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,067
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
