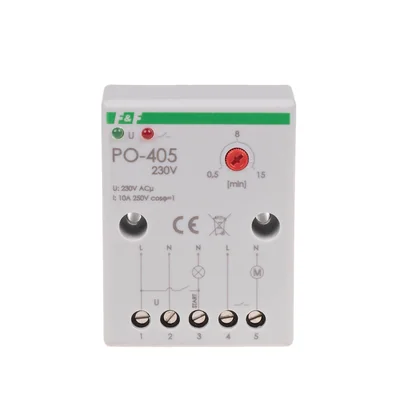

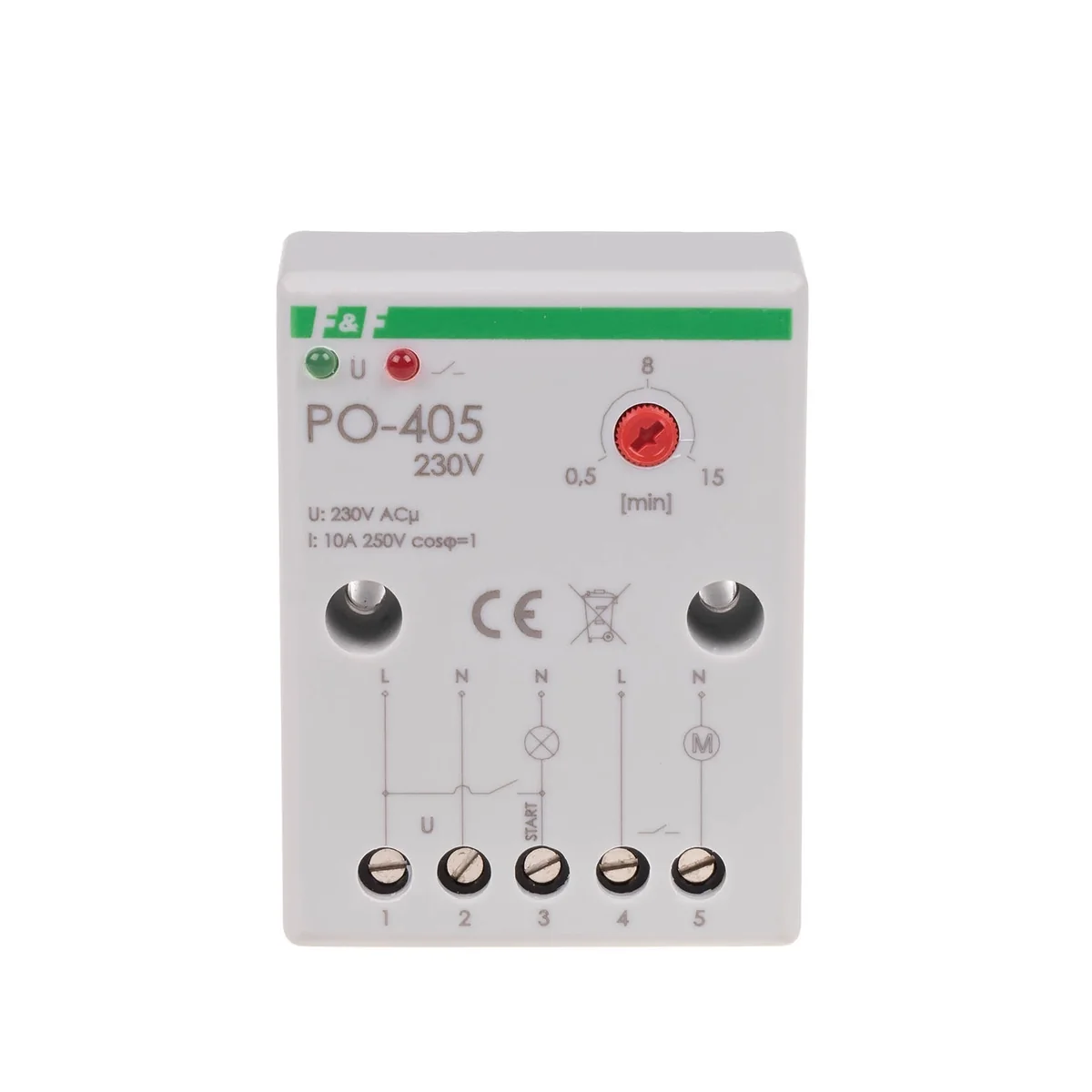

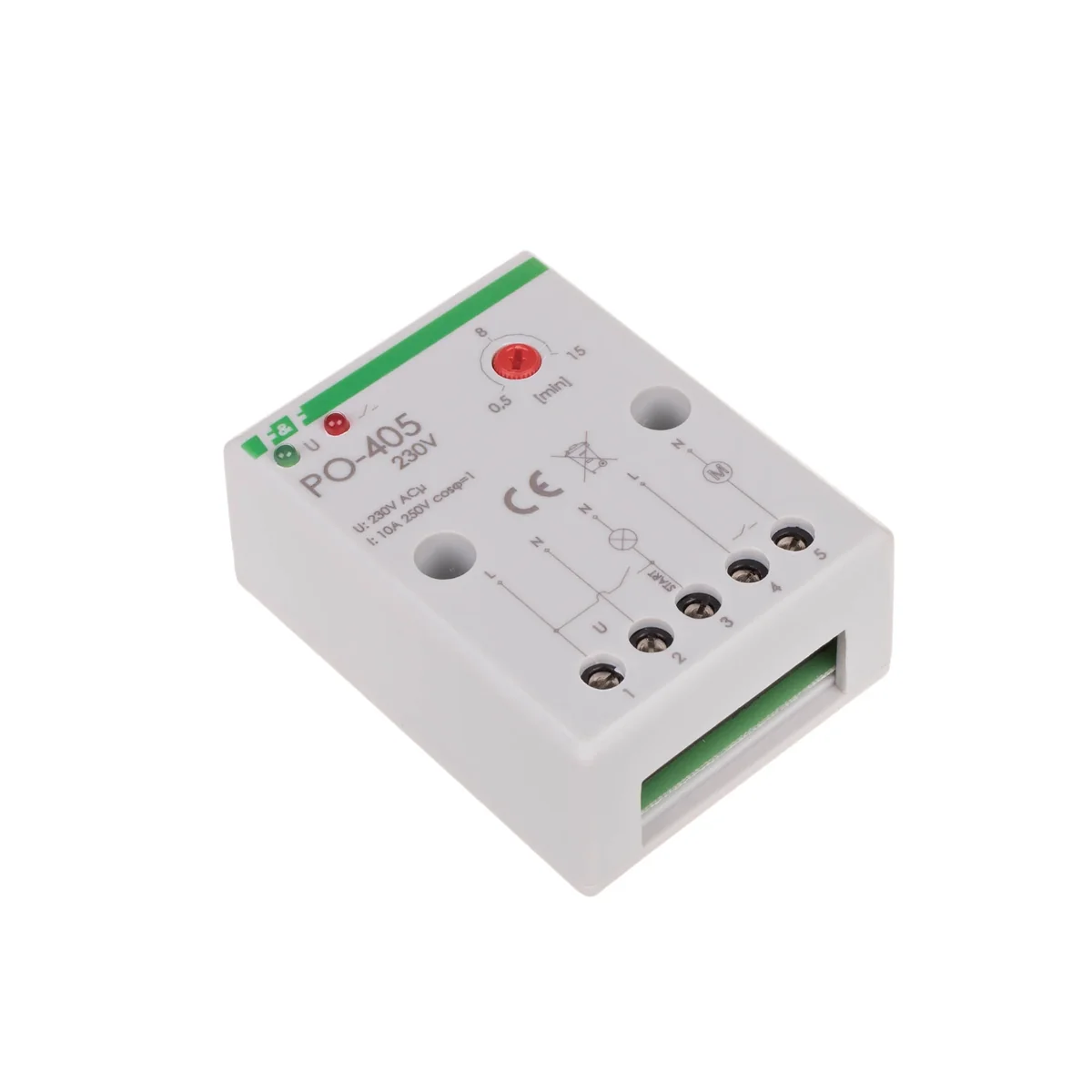

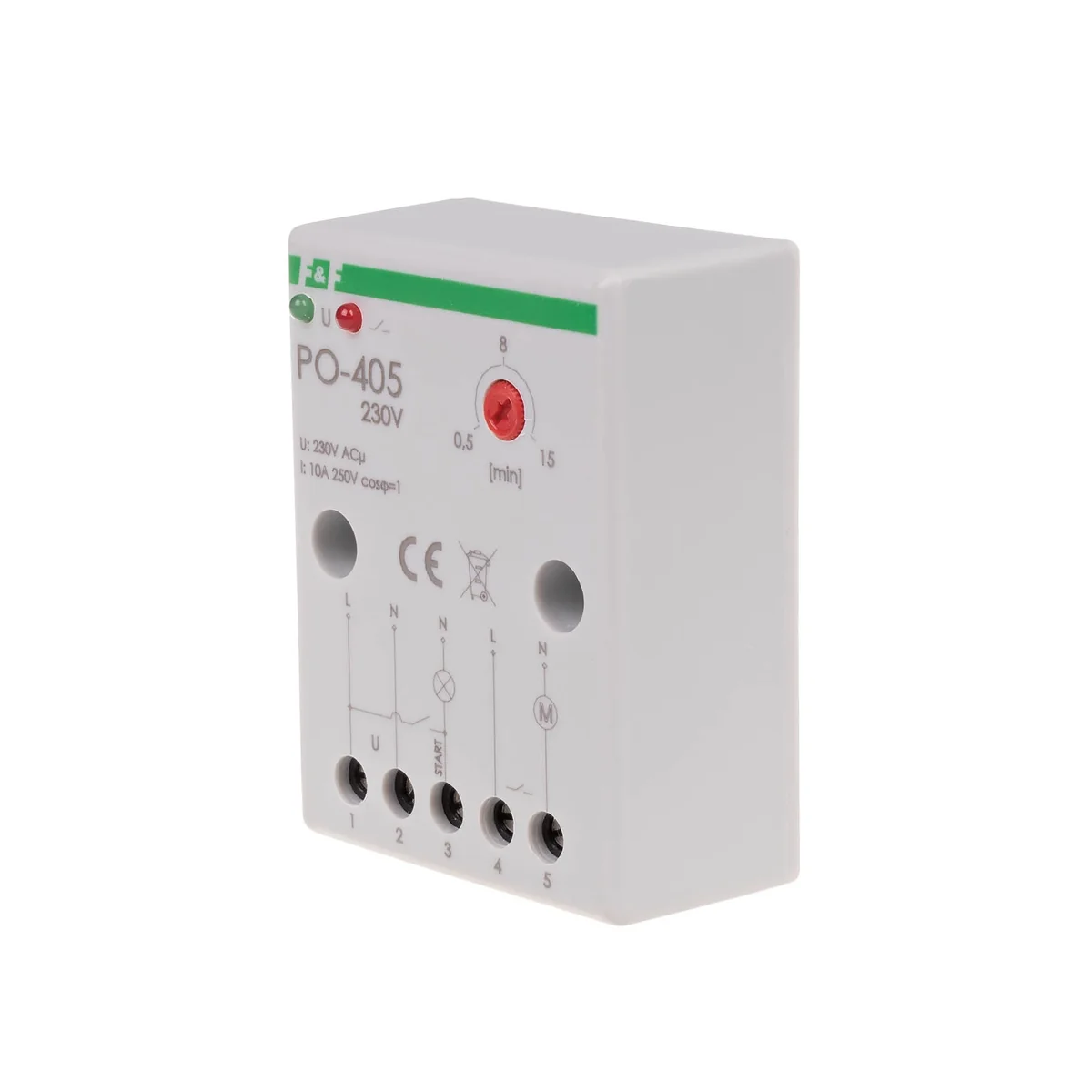

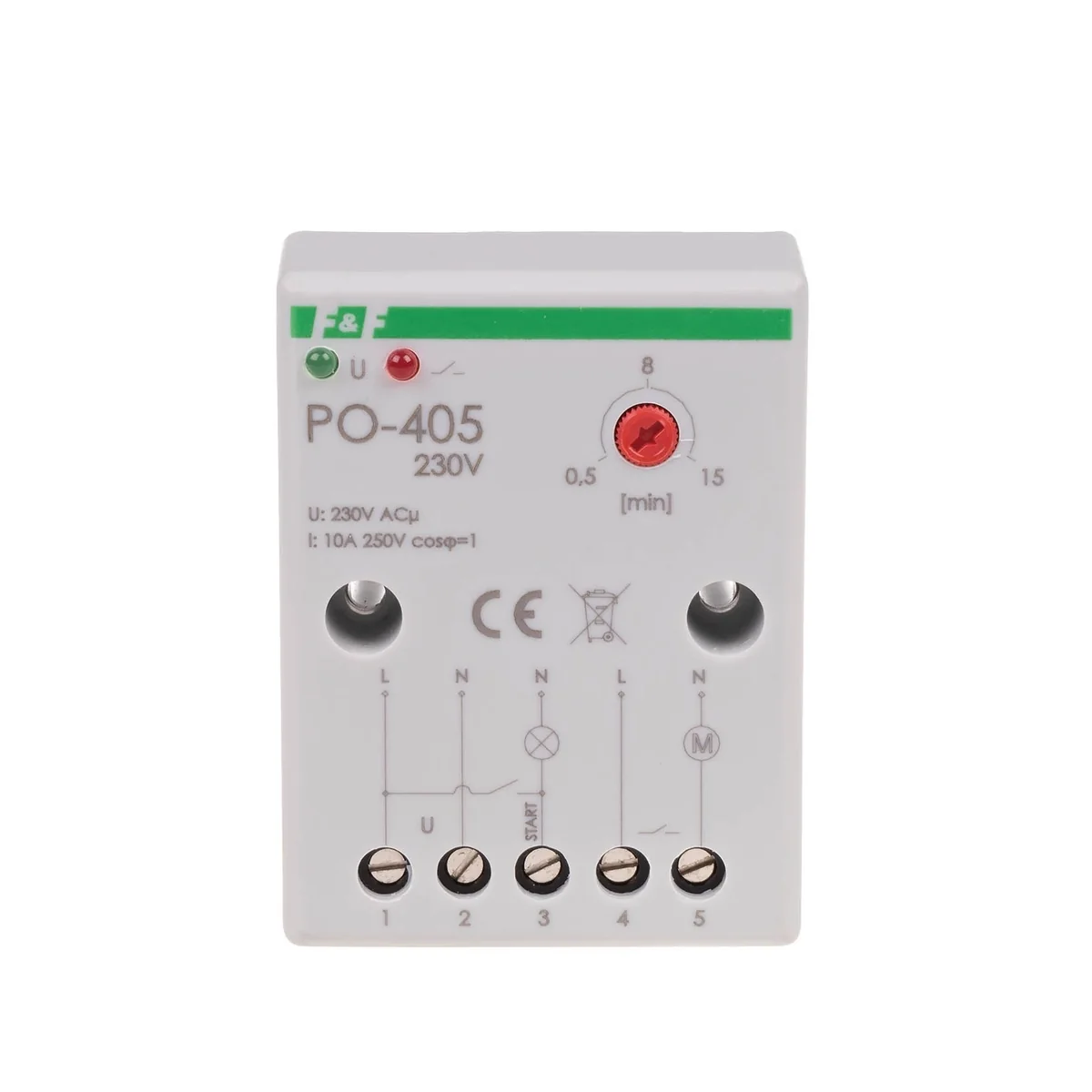

Time relay PO-405 PO-405
local index:
APC004FIFQ
Catalog No:
PO-405
EAN code:
5908312595489
Price:
81,07 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Intended use
Delayed off time relays are used to maintain the power supply of the controlled receiver for a specified time after the control voltage decay, e.g. in bathroom ventilation systems, where operation is maintained fan - switched on with the lighting - for a specific time after turning off the lighting.
Operation
Applying the control voltage S to the relay causes its activation and switching on the voltage on the controlled receiver. After the control voltage decays, the operation of the receiver is maintained by hold-up time t (set by potentiometer). After time t, switching off the controlled receiver will happen automatically. If the control voltage S is re-applied before the set time elapses, the relay performs its operation function from the beginning.
Technical data
-
Backup time [min]1-15
-
Number of contacts1NO 0NC
-
Rated voltage [V]230
-
load current [A]<10
-
Mounting methodFor screws
-
Power indicationLED green
-
Working temperature [°C]-25-50
-
Package height [mm]70
-
Package weight [kg]0.15
-
Depth [mm]25
-
Power [W]0.56
-
Control pulse current [mA]<300
-
connection5×0.5mm, l=0.5m
-
Trigger indicationred LED
-
Width [mm]50
-
Height [mm]70
-
Package width [mm]50
-
PKWIU27.12.24.0
Other technical data
-
Type of electric connectionScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Pluggable on auxiliary contact blockNo
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationNo
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Rated control supply voltage AC 50 Hz195 ... 253 V
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact0
-
Material contactSilver tin oxide (AgSnO2)
-
Voltage type (operating voltage)AC
-
Max. starting current8 A
-
Width50 mm
-
Depth26 mm
-
Complete with socketYes
-
Suitable for front mountingNo
-
Function delay-on energizationNo
-
Function floating contact on energizationNo
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableYes
-
Time range1 ... 900 s
-
Suitable as remote controlNo
-
Voltage type for actuatingAC
-
Number of outputs, delayed, normally open contact1
-
With semiconductor outputNo
-
Operating voltage AC 50 Hz195 ... 253 V
-
Nominal current8 A
-
Degree of protection (IP)IP20
-
Height67 mm
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,108 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
