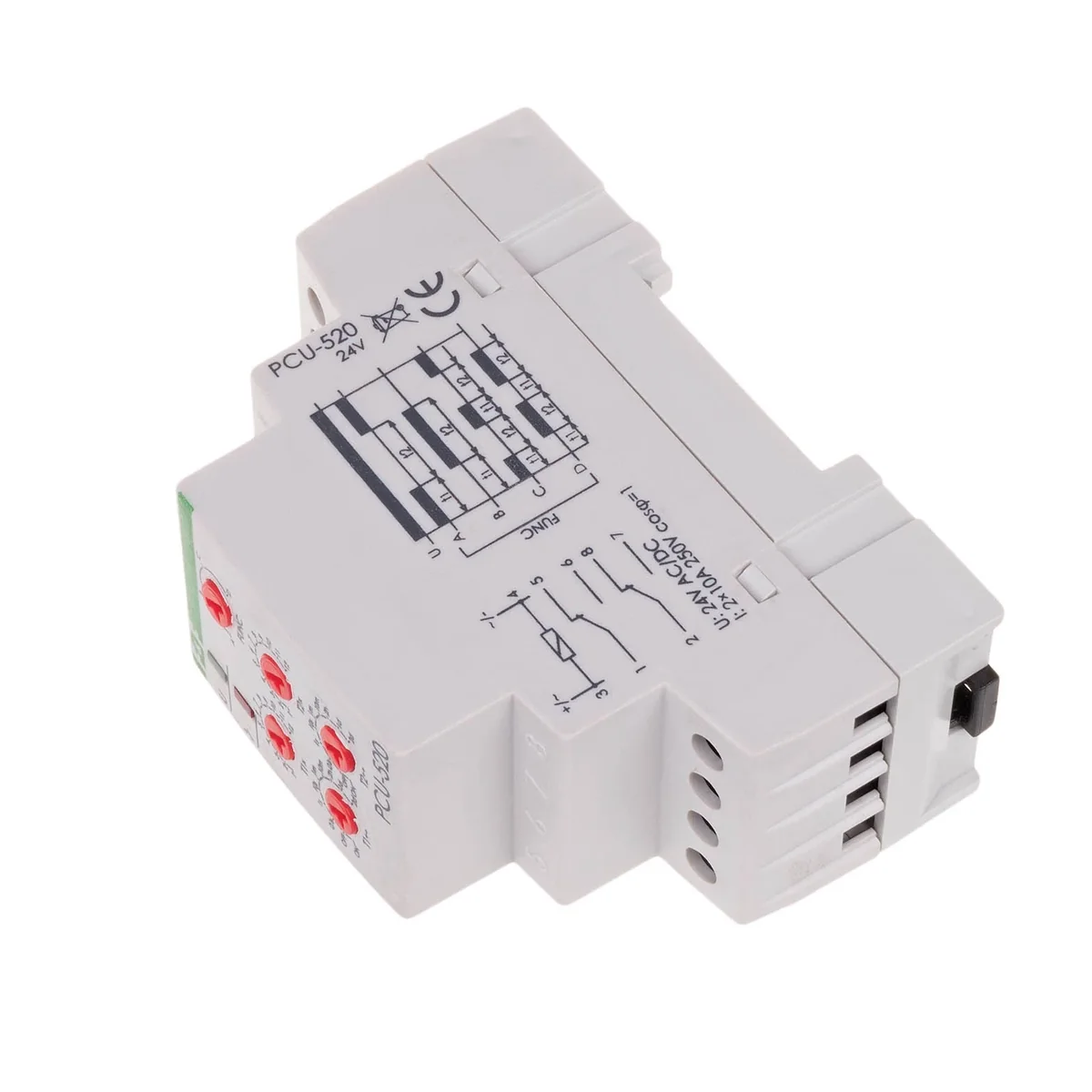

Time relay PCU-520 24V PCU-520-24V

local index:
APC165FIFQ
Catalog No:
PCU-520-24V
EAN code:
5908312595564
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 1.2
Installation: On the TH-35 rail
Price:
44,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

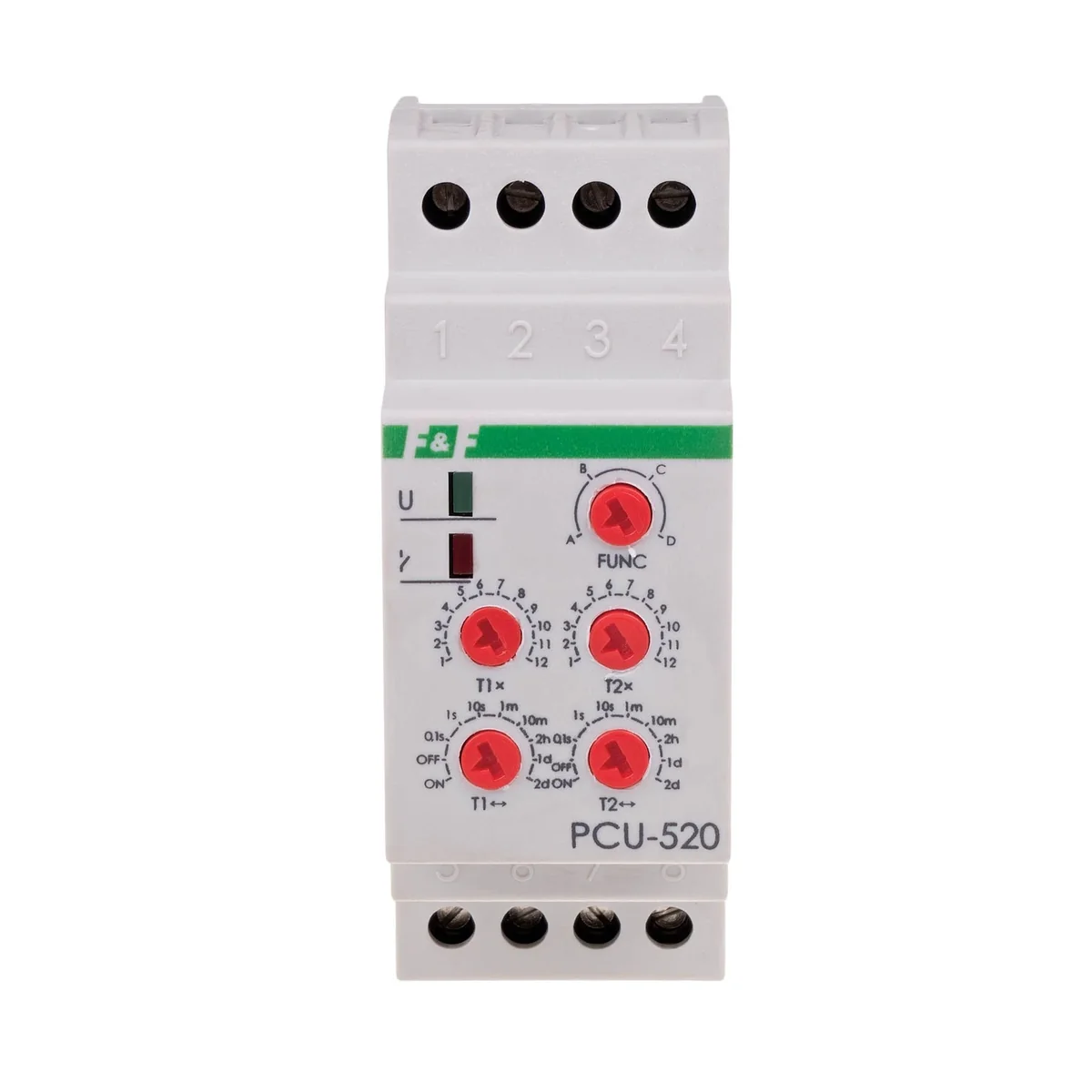

Product description

Purpose

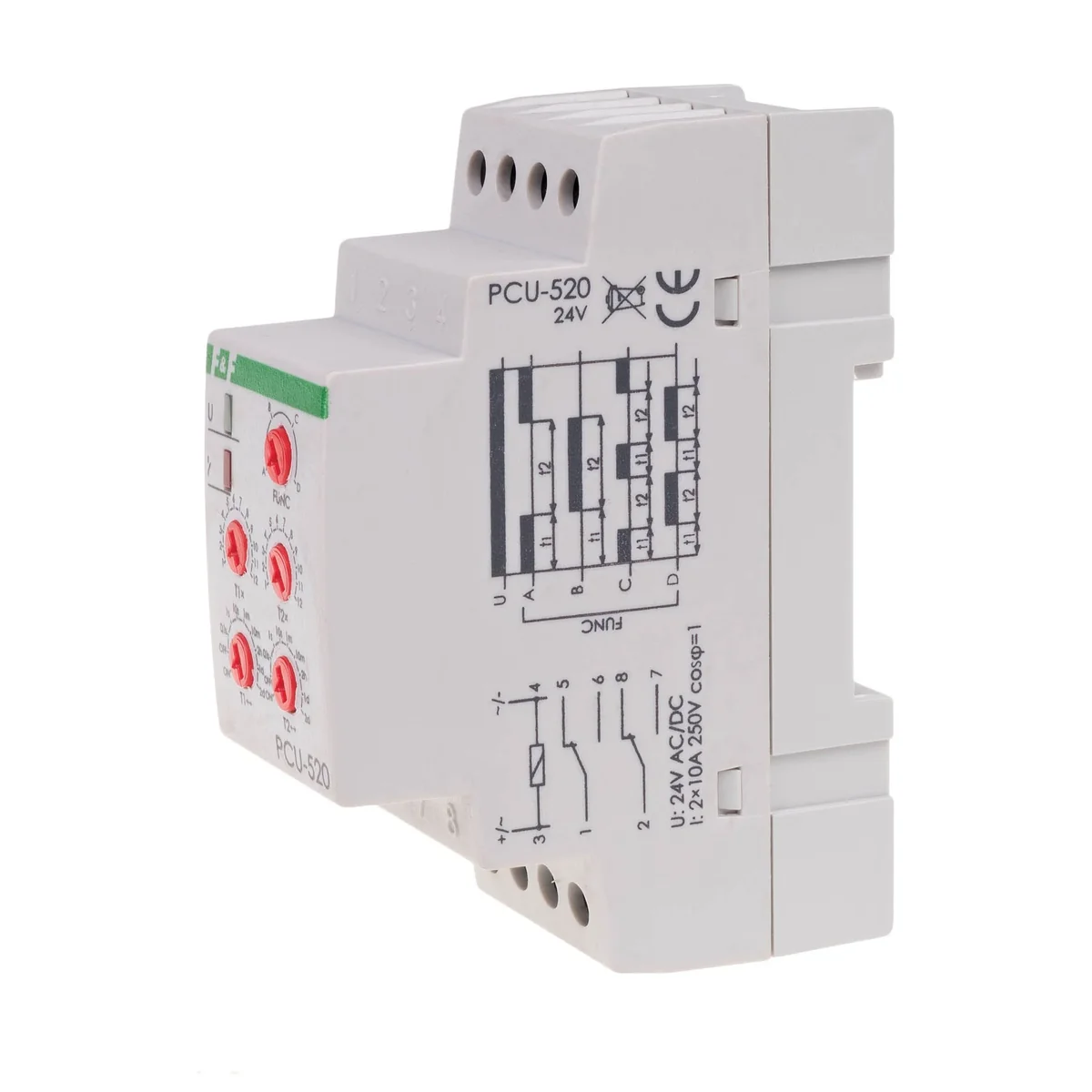

Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.). Until the relay is switched on, the contacts remain in position 1-5, 2-8. After applying the supply voltage, the contacts are switched to position
1-6, 2-7 for time t1. After the time t1 has elapsed, the contacts return to position 1-5, 2-8 for a time  t2. After time t2, relay contacts return to position 1-5, 2-8 for time  t2. After time t2, the relay contacts return to the position 1-6, 2-7 Re-execution of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. power supply, the contacts remain in position  1-5, 2-8 for time t1. After the t1 time has elapsed, the  contacts in position 1-6, 2-7 for time t2. After the time t2, the relay contacts return to the position 1-5, 2-8. Re-execution of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. intervals  time and break.
*OPÓDELAYED SWITCHING ON - CYCLICALLY (D)
Delayed-on operation mode carried out cyclically in the set   intervals  working time and breaks. Note!
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after switching off and on again
* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value. ON  - when the power supply is on, the contact is permanently switched on  in position 11-12.
 OFF  -  when the power supply is on, the contact is permanently switched on  in position 11-10.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • load current [A]
    2x8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Power supply PCU-520 [V]
    24
  • Package width [mm]
    40
  • Operating time setting range [s]
    0.1sec-576hrs
  • Power [W]
    1.2
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    2 modules (35mm)
  • Power [V]
    24
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Mounting method
    DIN rail
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA
  • Function
    Multi function
  • 1st interval
    0.1 ... 2073600
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,107
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
