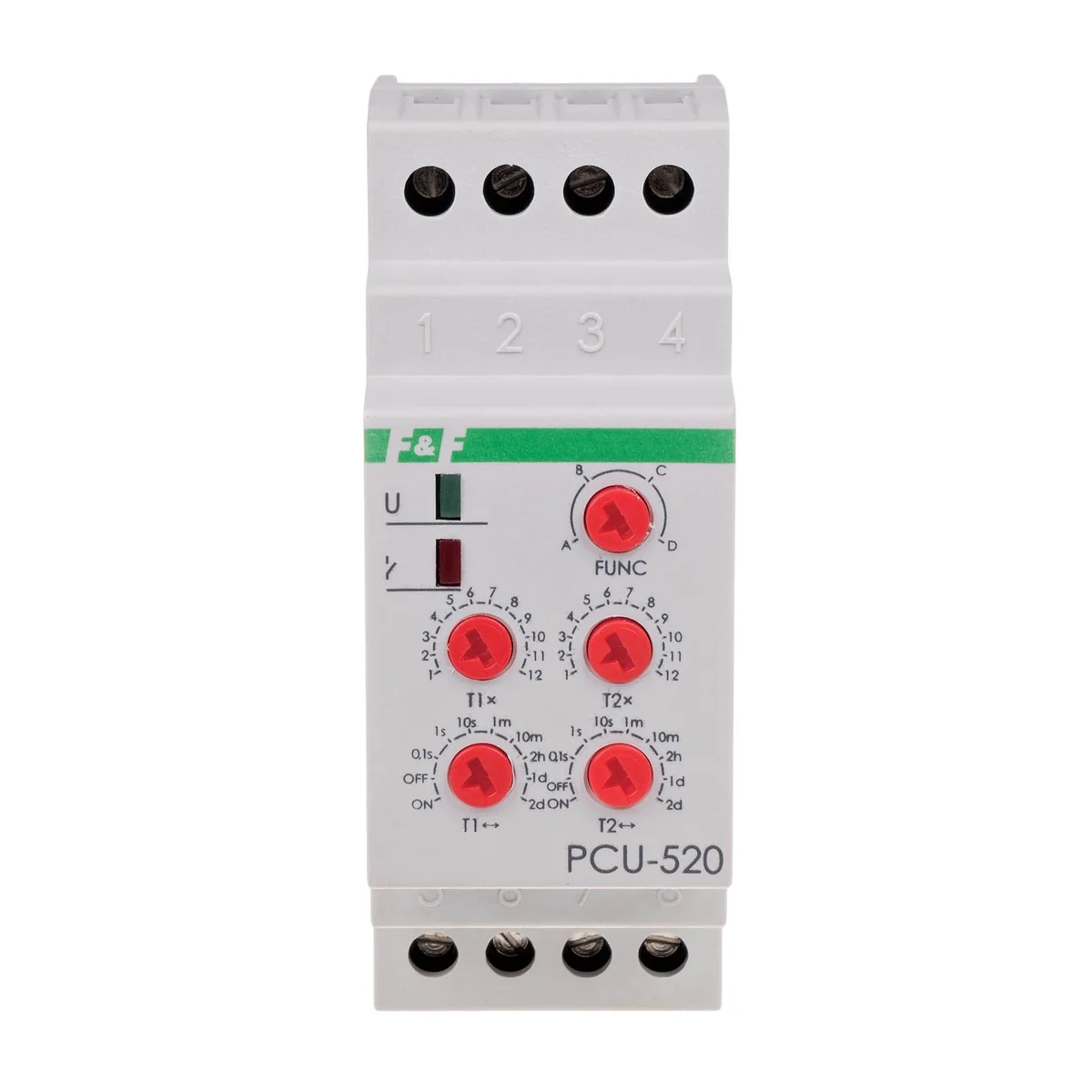

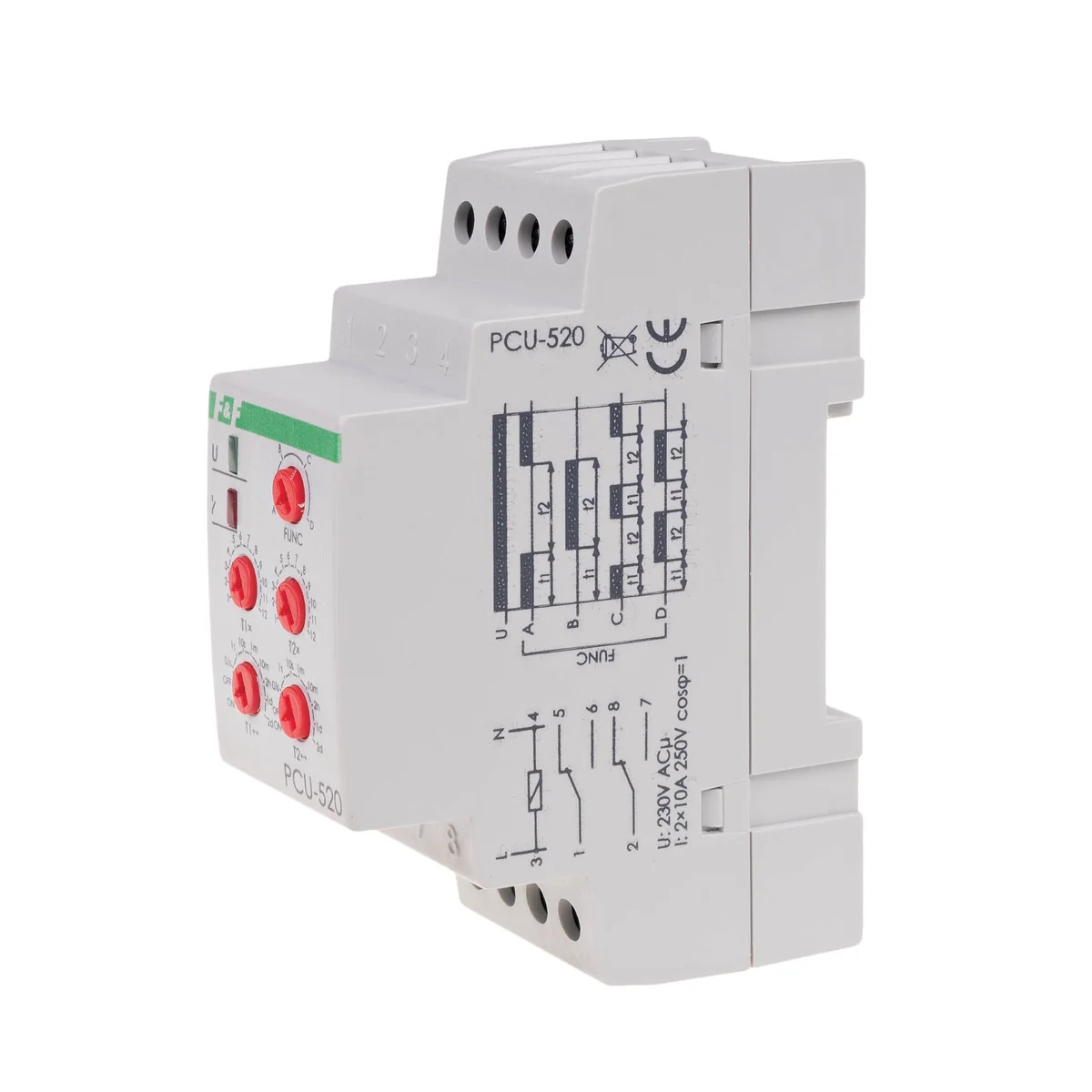

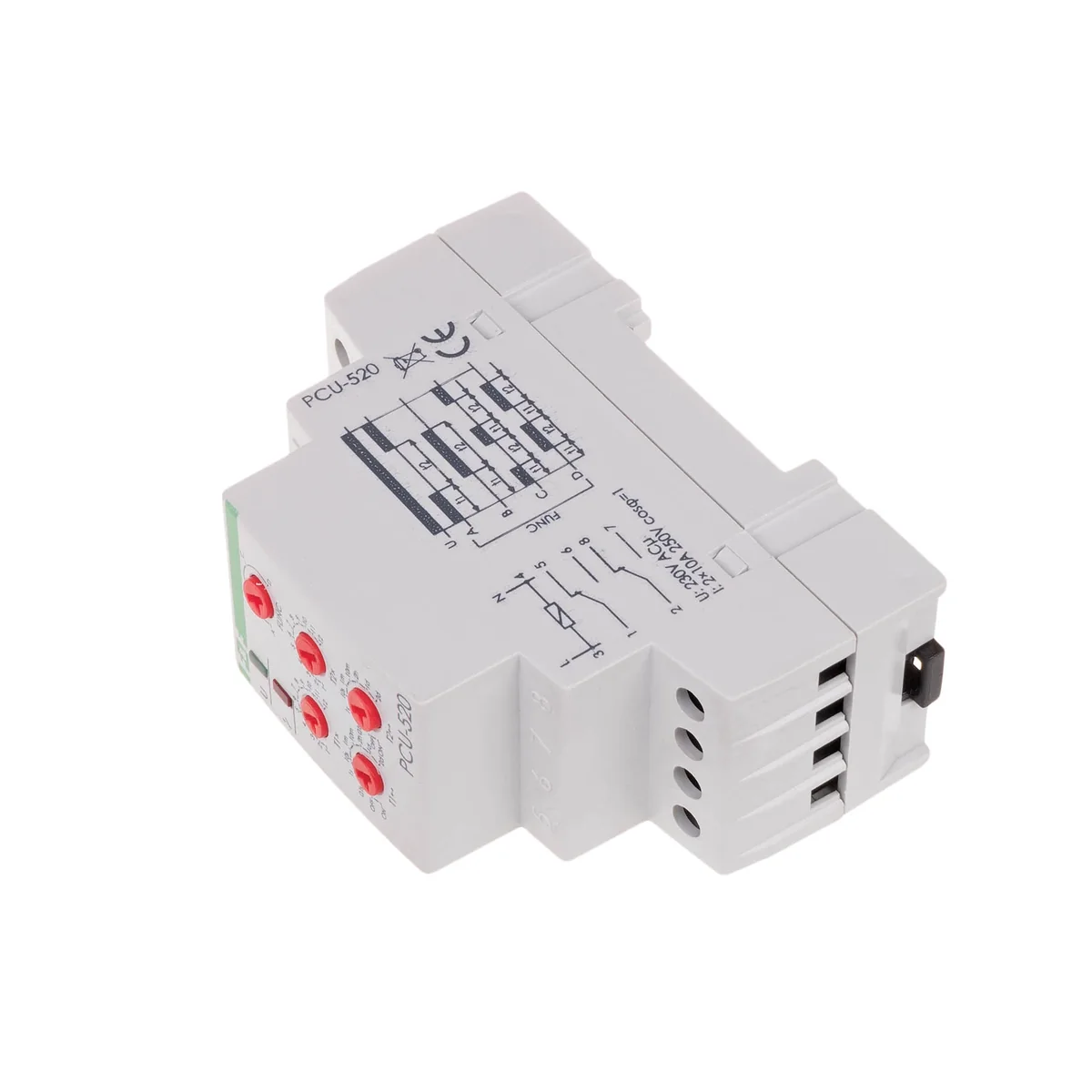

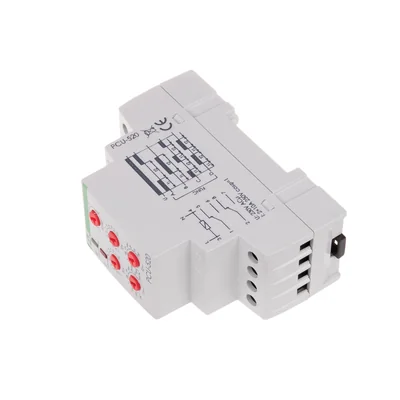

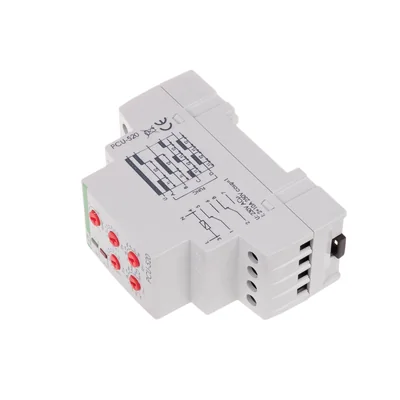

Time relay PCU-520 230V PCU-520

local index:
APC164FIFQ
Catalog No:
PCU-520
EAN code:
5908312595427
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 1.2
Installation: On the TH-35 rail
Price:
44,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc). contacts remain in position 1-5, 2-8. After applying the supply voltage, the contacts are switched to position
1-6, 2-7 for time t1. After the time t1 has elapsed, the contacts return to position 1-5, 2-8 for a time  t2. After time t2, relay contacts return to position 1-5, 2-8 for time  t2. After the time t2, the relay contacts return to the position 1-6, 2-7 Re-execution of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. power supply, the contacts remain in position  1-5, 2-8 for time t1. After the t1 time has elapsed, the  contacts in position 1-6, 2-7 for time t2. After the time t2, the relay contacts return to the position 1-5, 2-8. Re-execution of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. intervals  time and break.
*OPÓDELAYED SWITCHING ON - CYCLICALLY (D)
Delayed-on operation mode carried out cyclically in the set   intervals  working time and breaks. Note!
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after switching off and on again
* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value. ON  - when the power supply is on, the contact is permanently switched on  in position 11-12.
 OFF  -  when the power supply is on, the contact is permanently switched on  in position 11-10.


Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    2 modules (35mm)
  • Power [V]
    230
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0
  • Power [W]
    1.2
  • Rated voltage [V]
    230
  • load current [A]
    2x8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Power supply PCU-520 [V]
    230
  • Package width [mm]
    40
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Mounting method
    DIN rail
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA
  • Function
    Multi function
  • 1st interval
    0.1 ... 2073600
  • Width in number of modular spacings
    2
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,114
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
