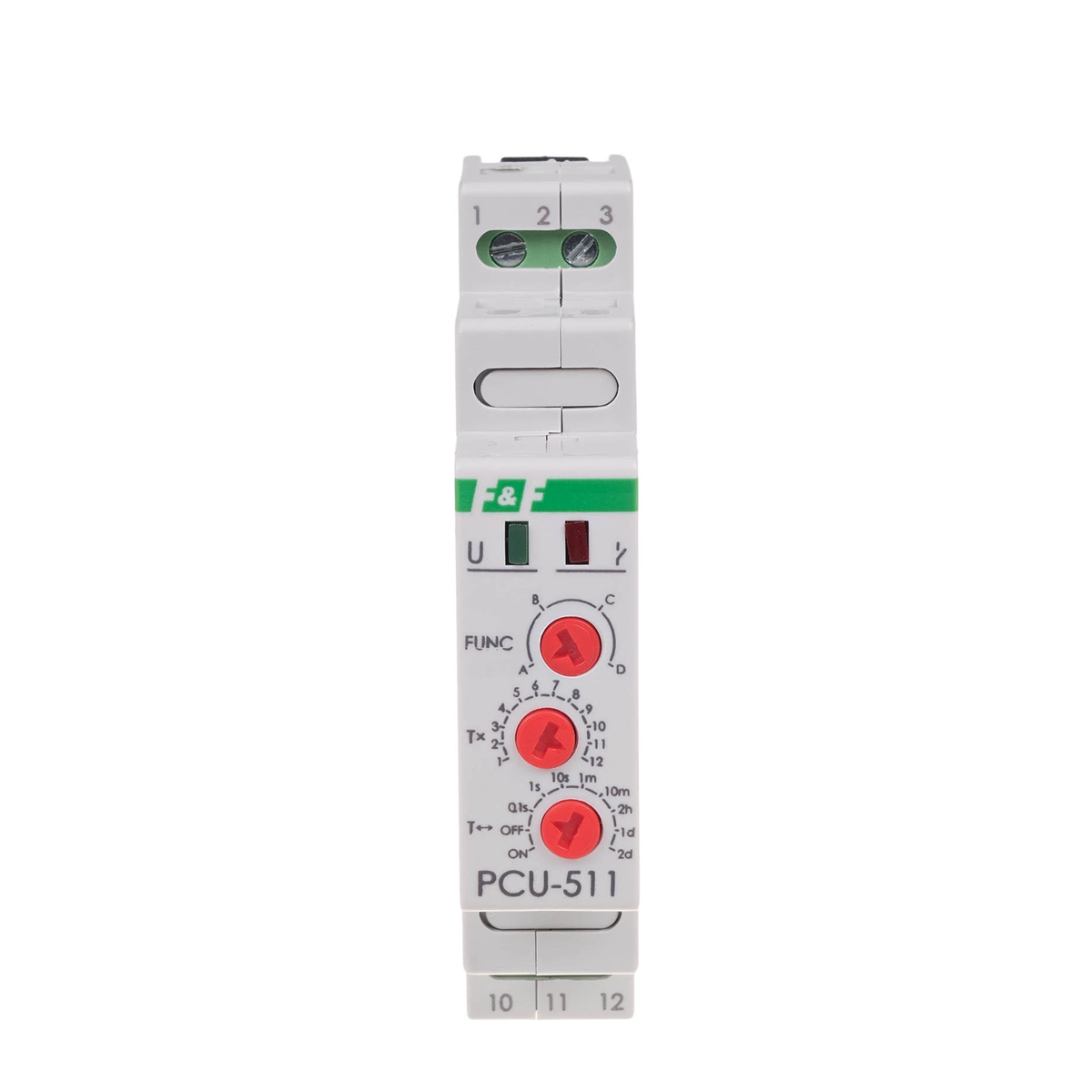

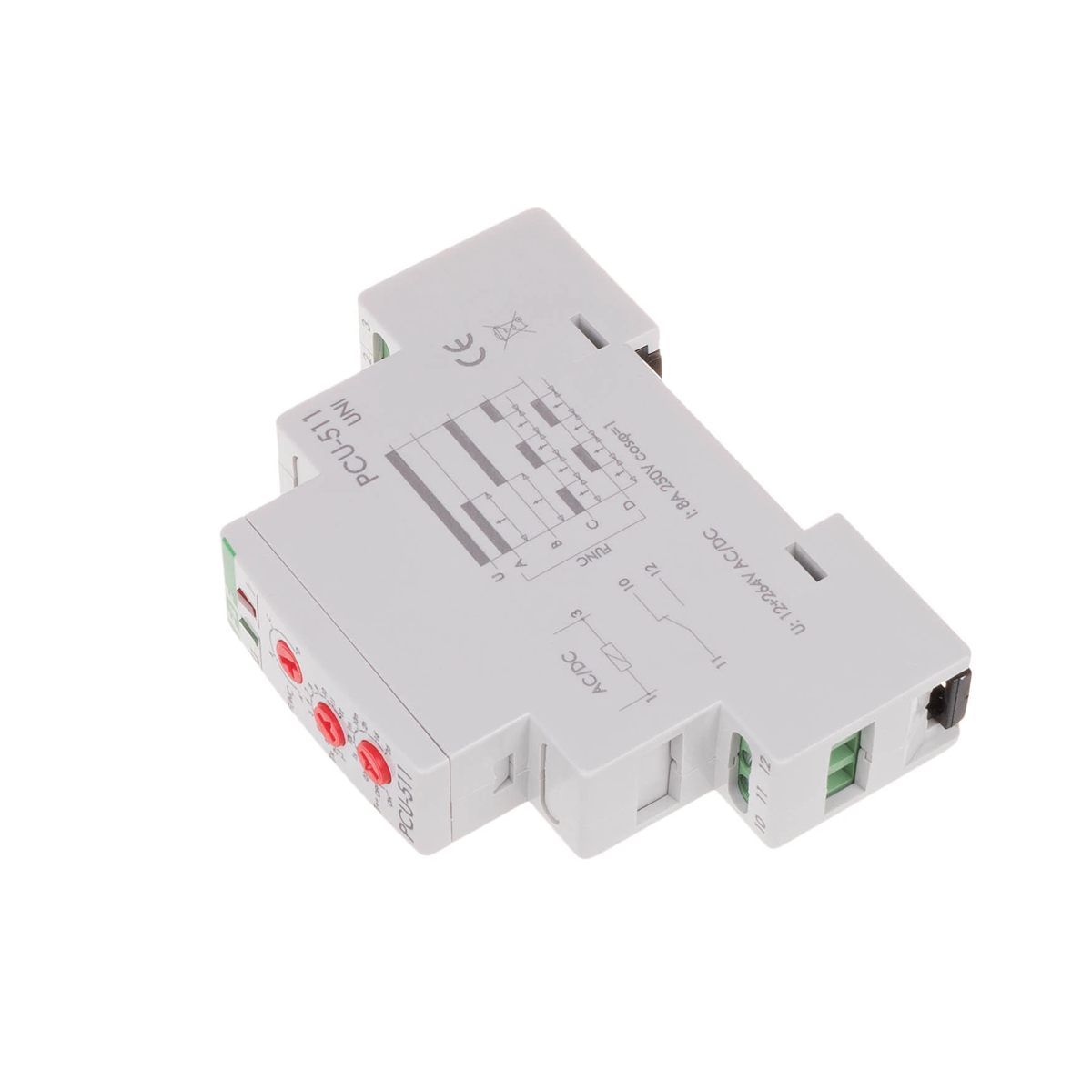

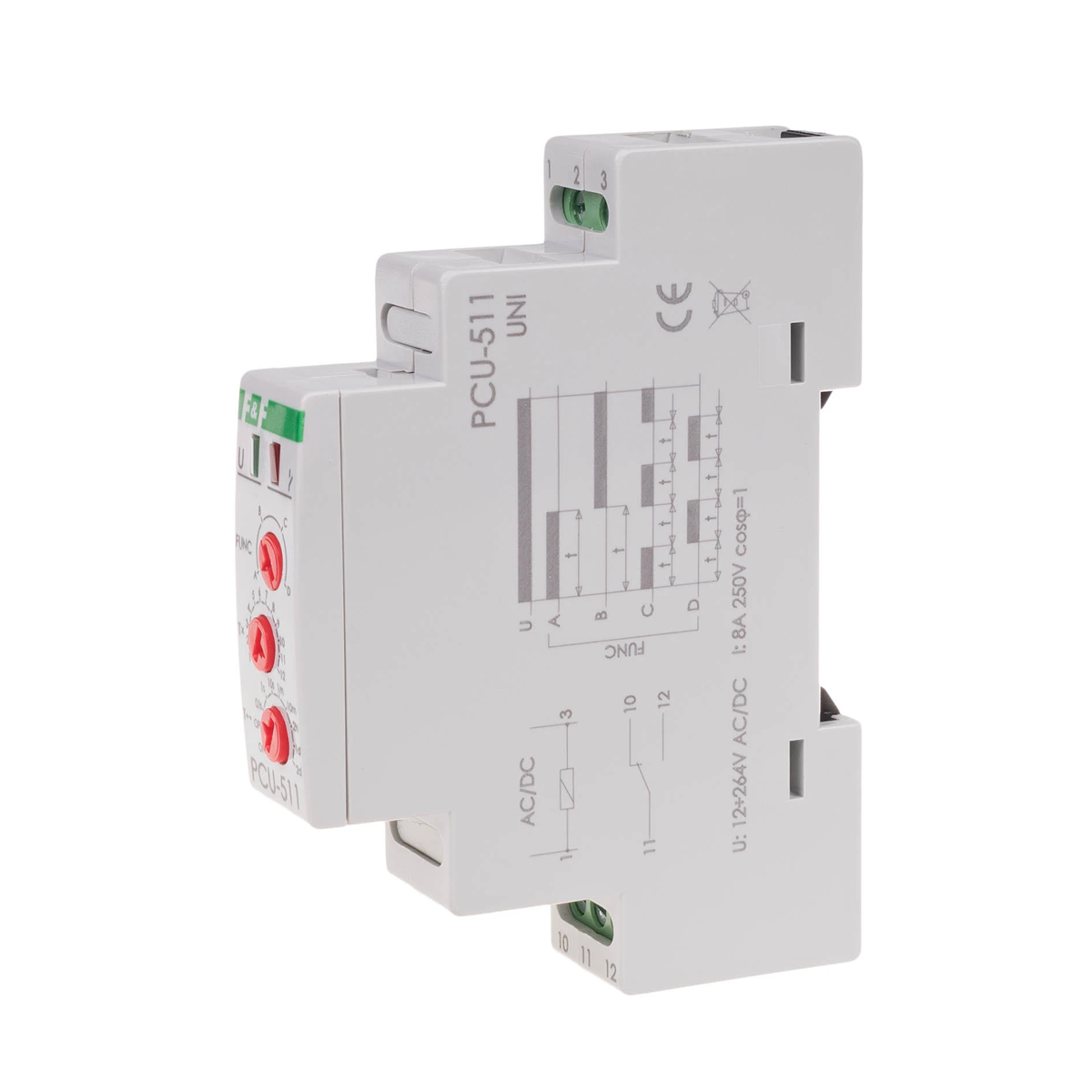

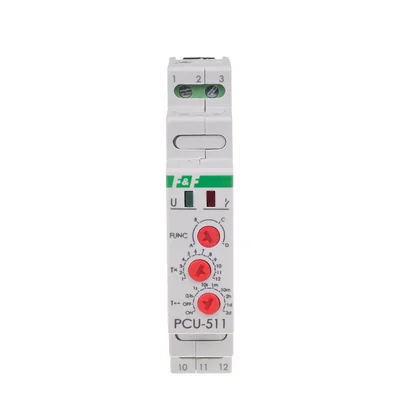

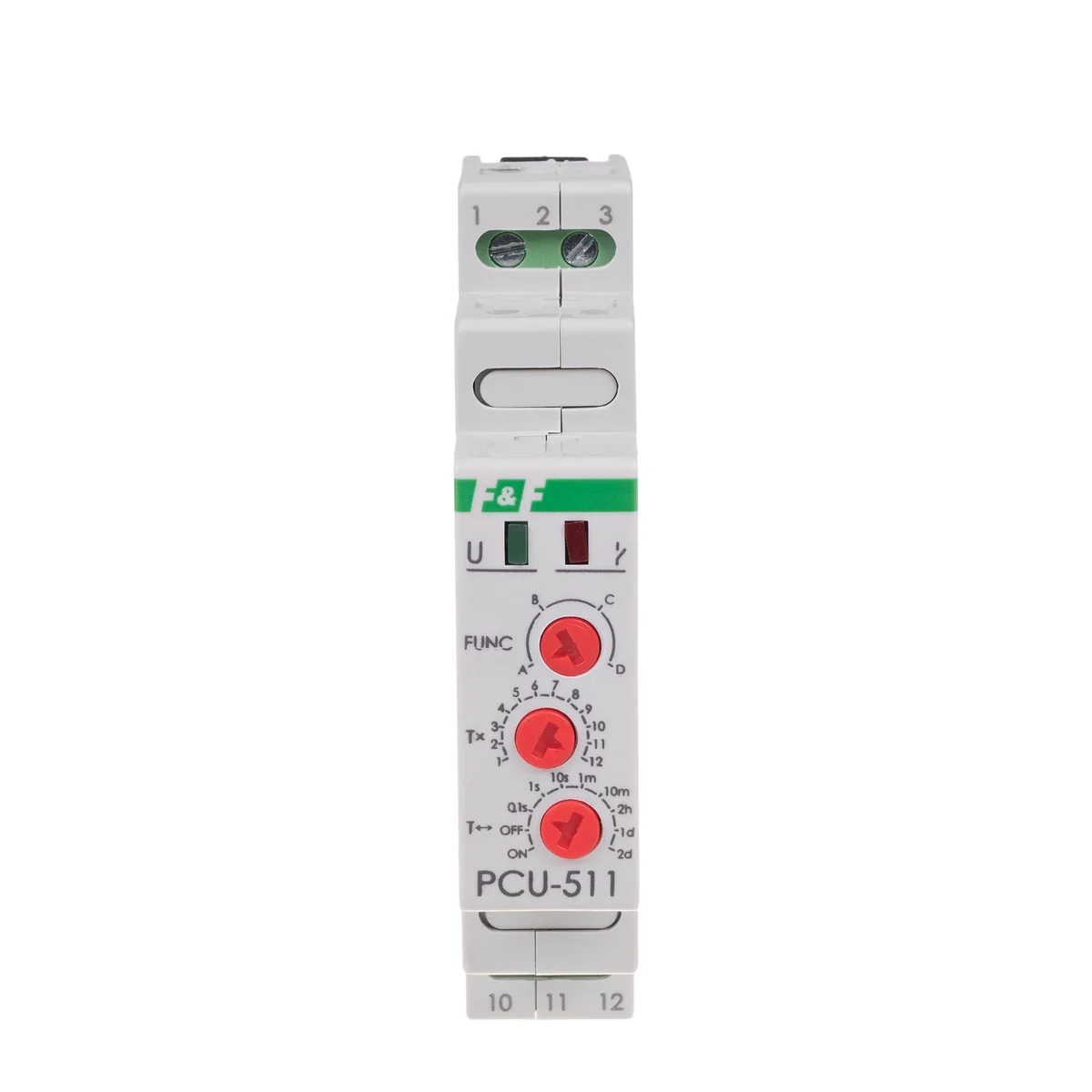

Time relay PCU-511 UNI PCU-511UNI

local index:
APC167FIFQ
Catalog No:
PCU-511UNI
EAN code:
5908312591351
Price:
33,97 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 24 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).

Technical data

  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Working time setting range
    0.1sec-576hrs
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • Installation
    On the TH-35 rail
  • Rated current [A]
    8
  • Dimensions
    1 module (18mm)
  • Power [V]
    12-264
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA
  • Function
    Multi function
  • 1st interval
    0.1 ... 2073600
  • Number of changeover switches
    1
  • Supply voltage
    12 ... 264 V
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA
